80mm f/6 (480mm focal length) ED Triplet Apochromatic Refractor

- Optics tube with mounting bracket and base
- removable dew shield
- 2" diagonal
- sturdy aluminum case
- Teleskop-Werkstatt specialty adjustment, incl. proof of quality

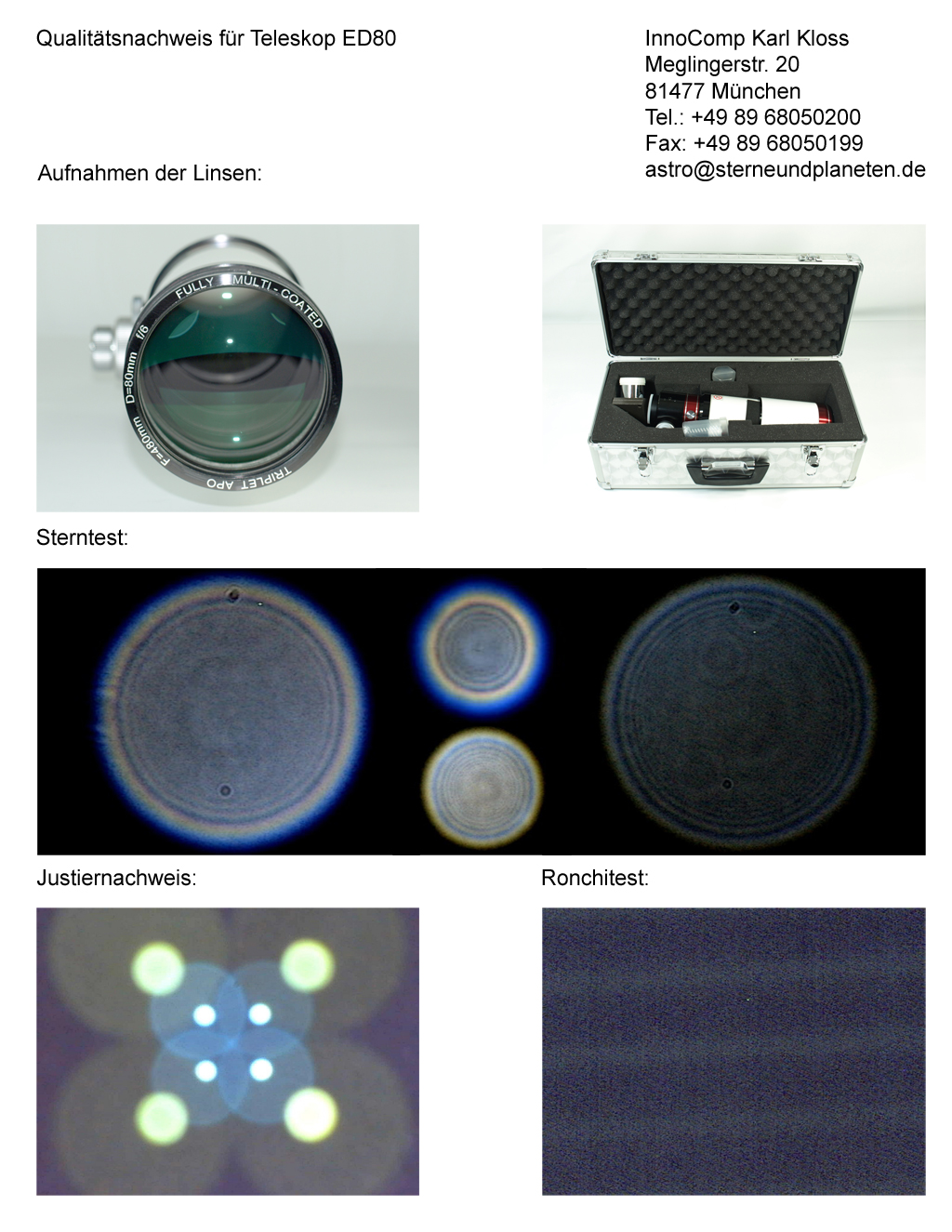

(test record incl. startest, ronchi, collimation, with individual serialnumber)!



price incl. s&h within Germany: 549,00 €


Ask for offer or order directly

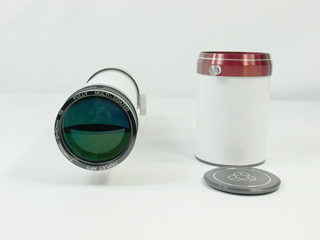

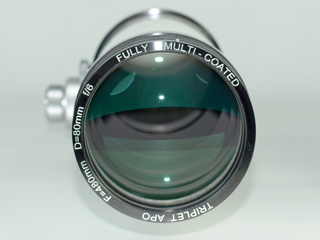

The ED80 is a triple element apochromatic refractor (APO). Ist triple objective lens made from highest quality extra-low dispersion (ED) Japanese FCD1 glass (similar to FPL-51) renders the triplet virtually free of chromatic aberration, only very high magnification levels (starting ca. 150x), result in a slight color fringing. The ED80 offers a high level of detail perceptibility, due to the high contrast and resolution, especially with deepsky-objects.

The optics is adjustable, but are first collimated, then fixated by us before delivery.  This prevents a loss of adjustment over time, even with heavy use.

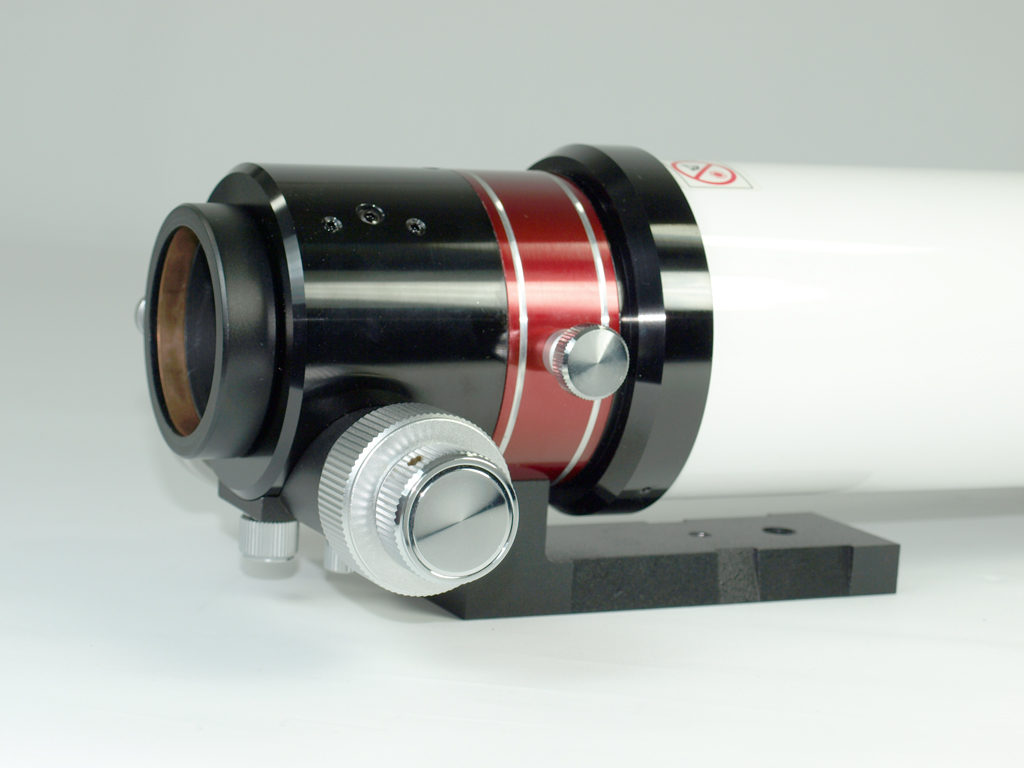

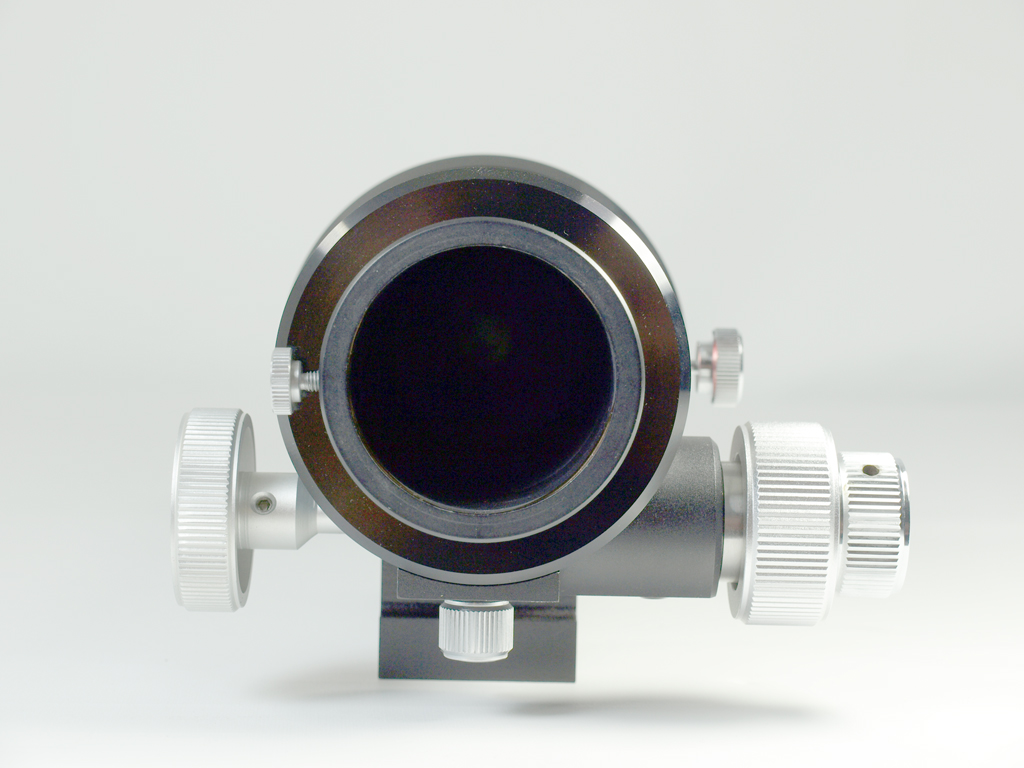

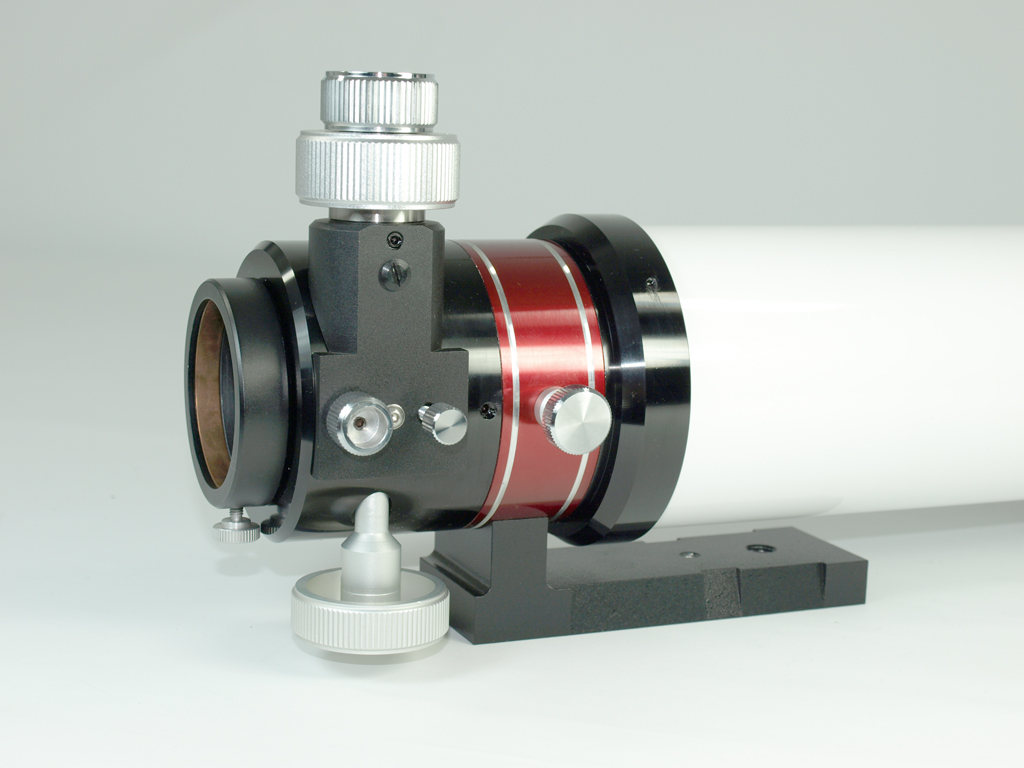

The focuser is based on the Crayford – principle, with 1:10 reduction, to ease precise adjustment.

The viewfinder is 8x50mm, focusable, and is mounted on the edge of the focuser. Freely pivotable, it enables a good view from all angles.

The telescope tube is aluminium and blackened on the inside to avoid scattered light. The dew shield is removable.

Mounting the telescope is simple, due to the brackets, handle and base.

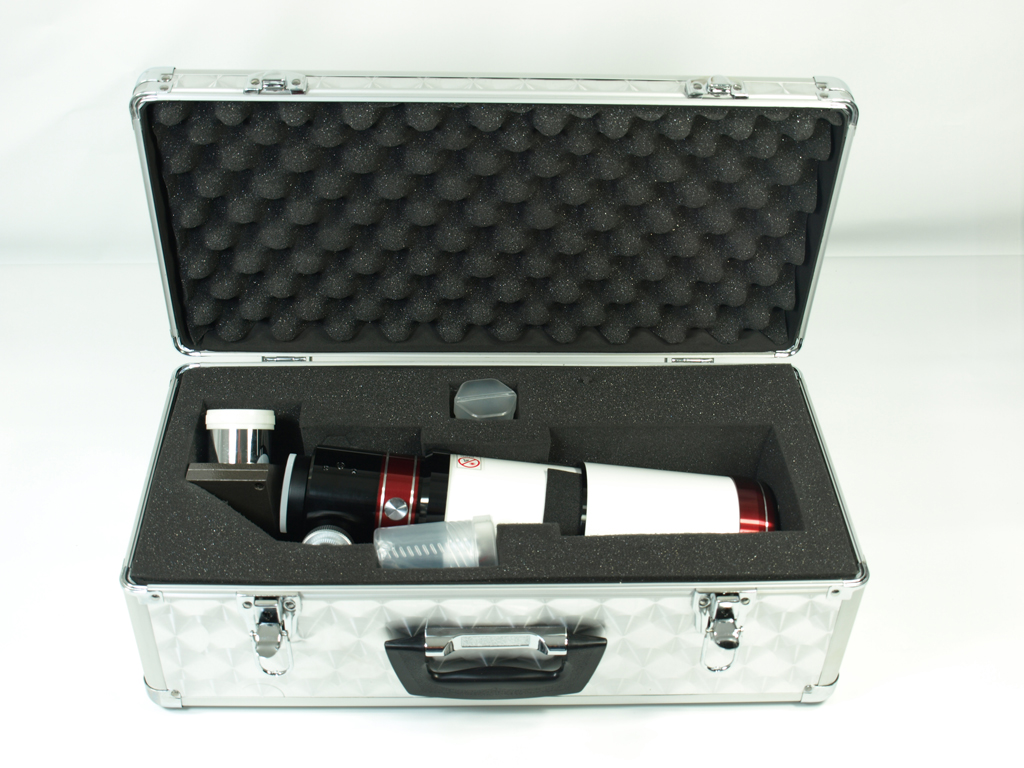

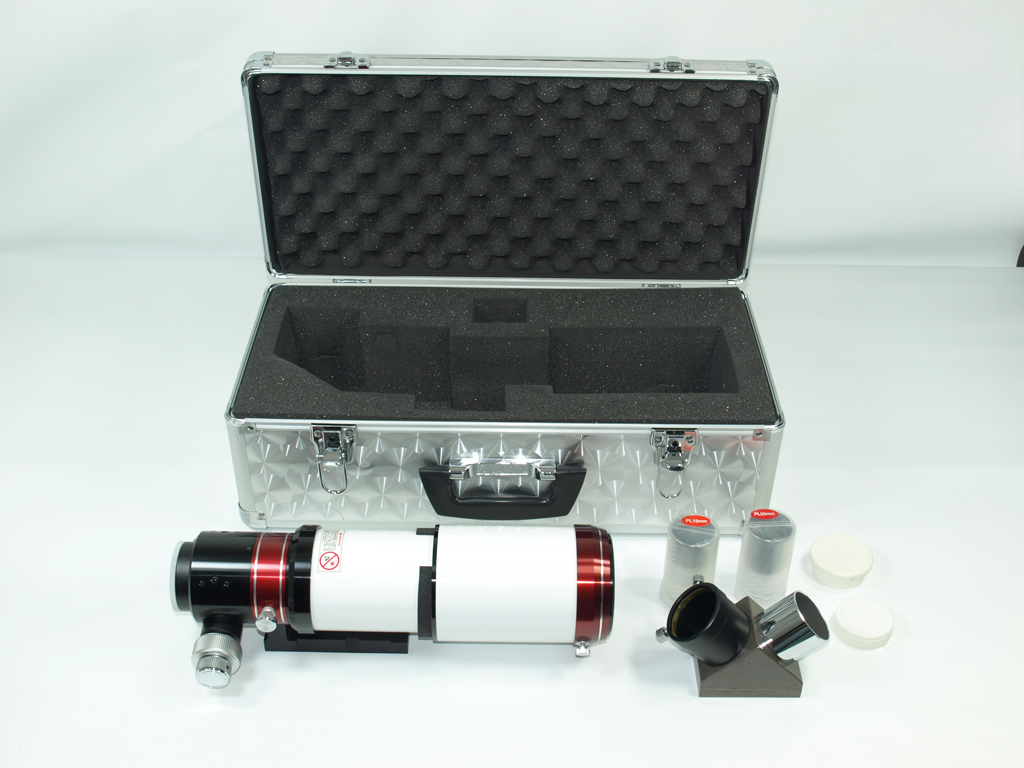

The ED80 comes with an aluminium transport case.

Before delivery, we adjust the diagonal, which has a reflection of 99%.

The interferometric test certificate supplied by the manufacturer does not necessarily provide a guarantee for precise collimation.

This refractor is also sold under the brandname Maxvision and Astronomy Technologies (Astro-Tech).   Testresults and consumer reports for these products can be found in the internet – and are widely congruent with our "NoName" offer.  Don't underestimate the added advantage we have over our "brand cousins"… Each of our telescopes are manually checked and collimated before delivery!!

Field reports (customers) with this telescope: Reports

Pictures made with this telescope: Pictures

Preise:

Optics, Tube, Case, Proof of quality,
2" Diagonal 99%, 2x Viewfinder
549,00 €

free shipping within Germany

Returnable for 30 days, 2 year warranty


Technical specifications:

Brand: InnoComp "NoName"
Model: ED80 mm f/6 ED-APO-Triplett
Aperture: 80 mm 3,1"
focal length: 480 mm
Ratio: f/6
Resolution: 1,45"
Design:
Apochromatischer Refraktor with ED-Triplet
Glass Japanese FCD1 ED (Extremely Low Dispersion) tempered glass
Weight Tube/Optics: 2.7 kg

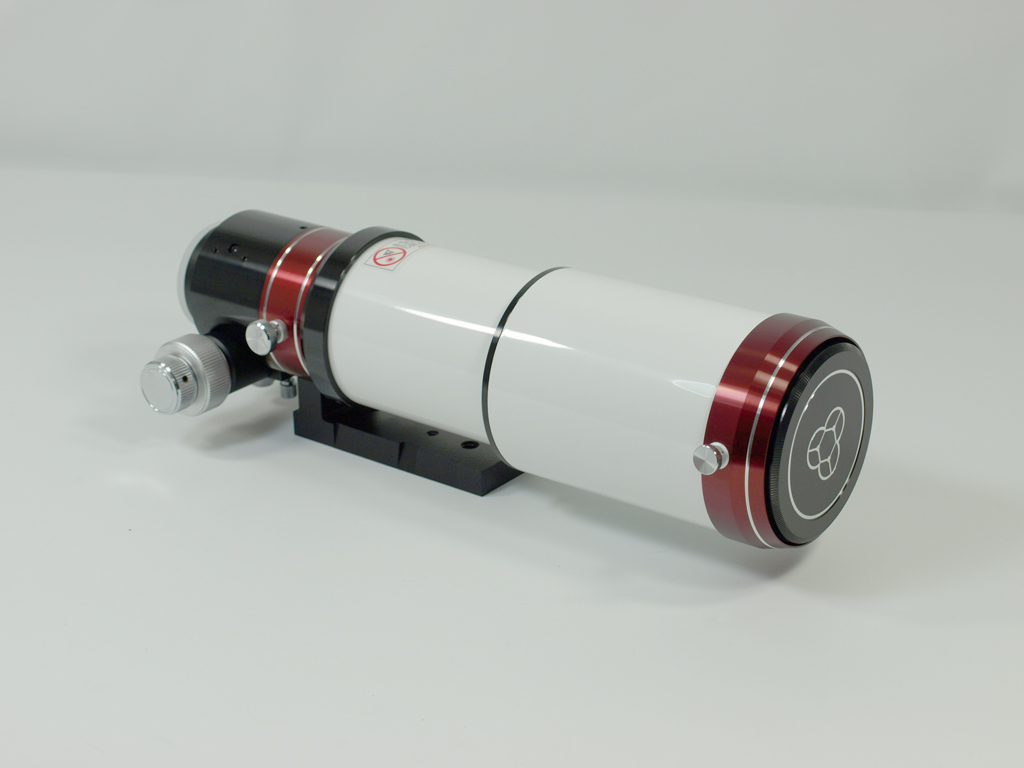

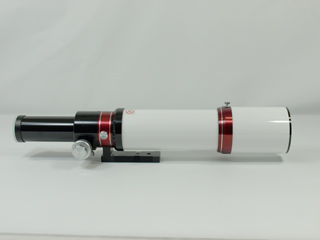

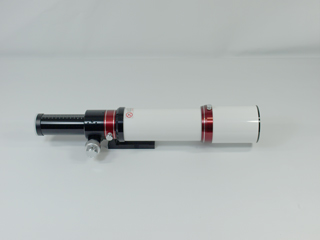

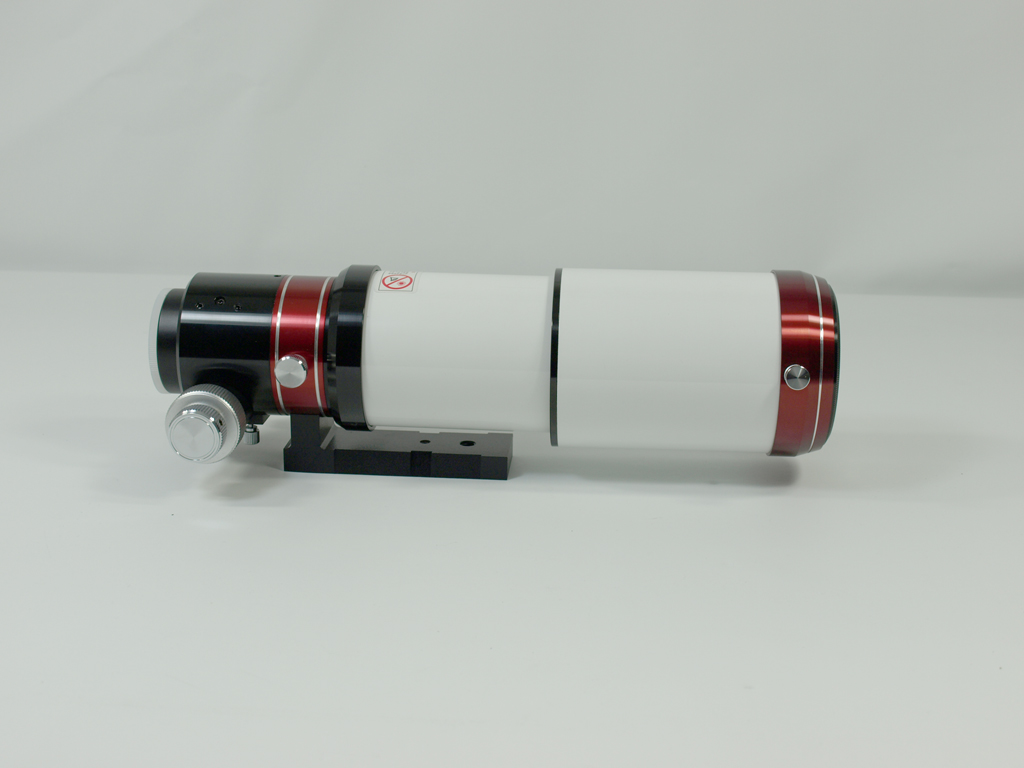

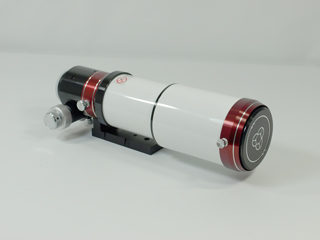

Product Images (click to enlarge):

You are welcome to visit us with your present eye pieces. For comparison, we like to use. e.g.: TeleVue Zoom 3-6mm, Meade Serie 5000 14mm UWA, Baader Hyperion Zoom 8-24mm, Scopos Expanse 35mm, Meade Serie 4000 55mm, in order to eliminate the possibility of a flaw in the optics.
