Adapter rail for Vixen GP prism rails to 3" Losmandy Level

Starway adapter rail for telescopes with Vixen GP prism rails and mounts with Losmandy 3" clamps
... if you want to attach a telescope with GP rails to a mount with 3" Losmandy clamp

Adapter from GP to Losmandy clamp

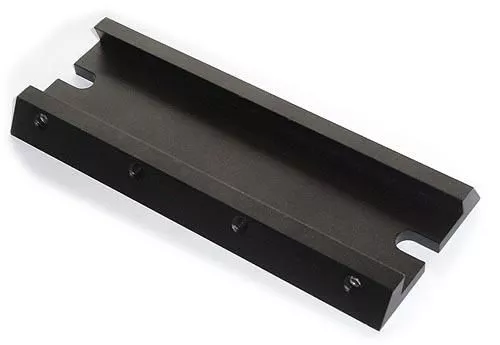

The adapter rail PS3-V is an elegant solution from TS Optics. You have a telescope with a small prism rail (GP level) such as that used by Vixen, Celestron or Meade and now have a mount with the larger, stable Losmandy quick coupling. You no longer need to dismantle your old prism rail. Simply slide the adapter rail over your old GP rail and the telescope will fit the new Losmandy clamp.

The adapter rail is of course also helpful the other way around. If, for example, you have a mount with a Losmandy 3" clamp and want to quickly mount a telescope with a Vixen rail - the adaptation is done within seconds.

The advantages of the PS3-V:

-- quick conversion from Vixen GP level to Losmandy level and also easy conversion
-- cheaper and simpler solution than the hassle of buying a new 3" prism rail
-- versatile use
-- extremely low construction - only 6mm - so the mount is not exposed to unfavorable leverage conditions

PS3-V with Vixen prism rail

The photo shows the simple adaptation of the GP rail and the low construction. The rail is clamped with four screws.

Technical data of the PS3-V:

-- Weight: 300 grams
-- Length: 180mm
-- Total height: 15mm
-- Width at the base: 74.5mm

PS3-V with GP rail

GP prism rail of a C8 from Celestron - ready for adaptation to a mount with a Losmandy connection.

Mounts with a Losmandy connection include:

-- Celestron CGEM / CGE Pro
-- Losmandy G11 and GM8
-- 10Mikron 2000
... and many others
