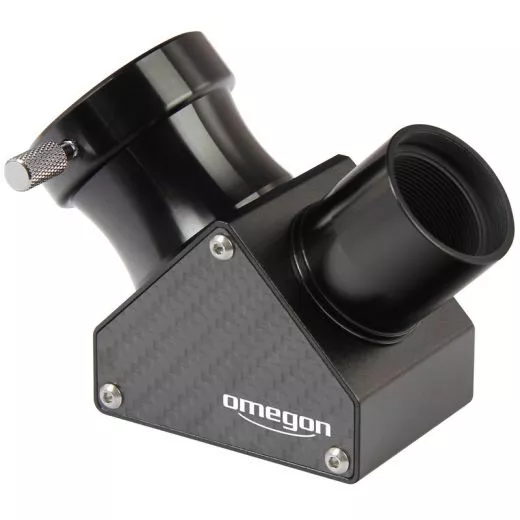

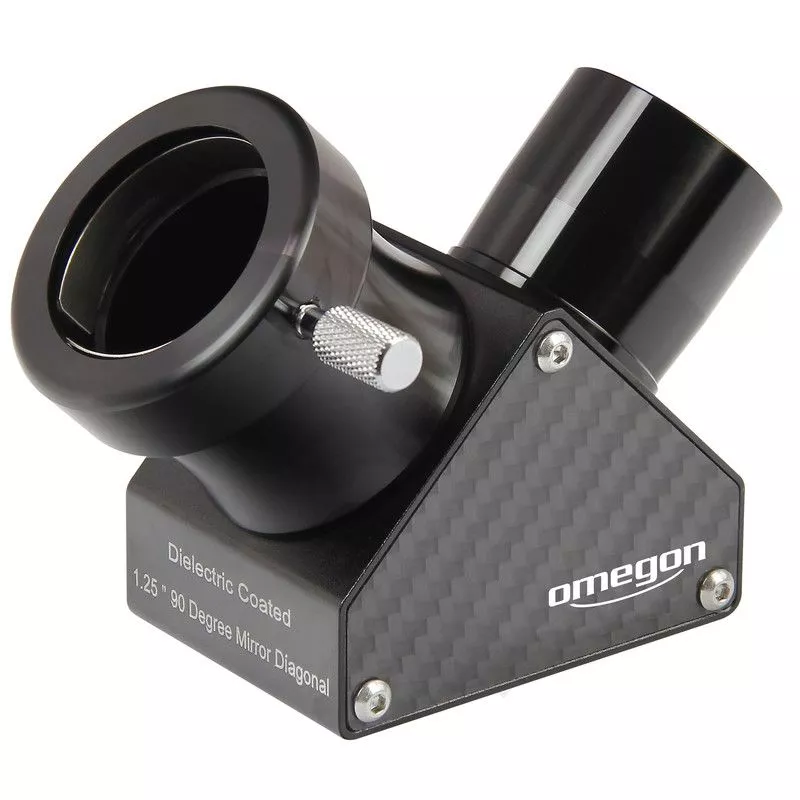

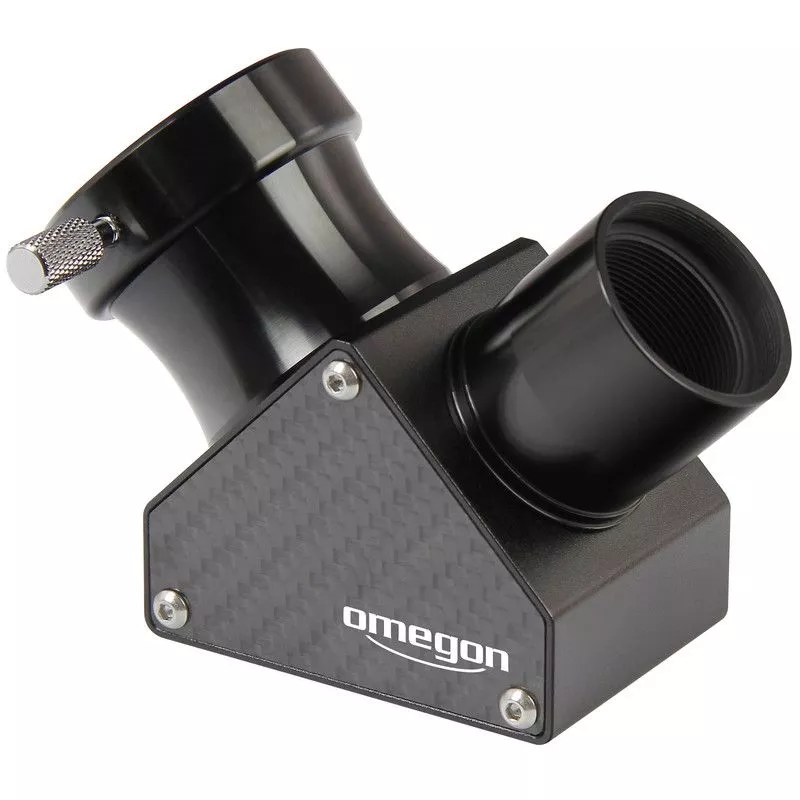

Omegon Carbonline star diagonal mirror 90°, 1.25'' 99% dielectric

See more: 1.25" diagonal mirror with brighter images
A viewing experience! This is exactly what the accessories should offer you. Let the good image from your telescope reach your eyes. The Omegon 1.25" Carbonline star diagonal mirror offers you 99% reflection and a pretty carbon design. A viewing experience for outside and inside.

The advantages at a glance:

    1.25" diagonal mirror: directs the image 90° upwards. Suitable for refractor, Maksutov and SC telescopes
    For better imaging: suitable as a replacement for a standard star diagonal
    99% Reflection: Provides approximately 10% brighter images than an ordinary mirror
    Elegant design: made of carbon and black anodized aluminum

For all 1.25" focusers
You can use this diagonal mirror on any refractor, Maksutov or SC telescope that has a 1.25" focuser. The Omegon Carbonline directs the image 90° upwards and offers you a pleasant view.

For all 1.25" eyepieces
Whether Plössl or wide angle: The diagonal mirror accommodates all 1.25" eyepieces. A spring ring clamp fixes the sleeve. An optimal hold for your eyepieces in all observation positions.

Brighter images: Mirror with 99% reflection
Look forward to bright and sharp images. You can now see inconspicuous details or faint fog better. The reason: A mirror with many thinly vapor-deposited dielectric mirror layers achieves a reflection of 99%. This means: around 10 percent more light than the typical mirrors that are included in the accessories of many telescopes.

Carbon and aluminum
The diagonal mirror consists of carbon elements and anodized aluminum. Chic, light and stable: the Carbonline 1.25" remains a mirror for a beautiful view and perspective, even after years.

Technical data
Performance
Connection (telescopic side)
1.25"
insight
90°
Compensation of the optics
dielectric
Surface reflectance (%)
99
Weight (g)
220
Connection (eyepiece side)
1.25"
Special features
Correction of upright image
Yes
Correction of reversed image
-
Ring clamping
Yes
Generally
Color
black
series
Per
External dimensions LxWxH (cm)
10x45x7
material
Aluminum, carbon
type
deflection optics
Construction type
Diagonal mirror
Omegon Carbonline star diagonal mirror 90°, 1.25'' 99% dielectric
