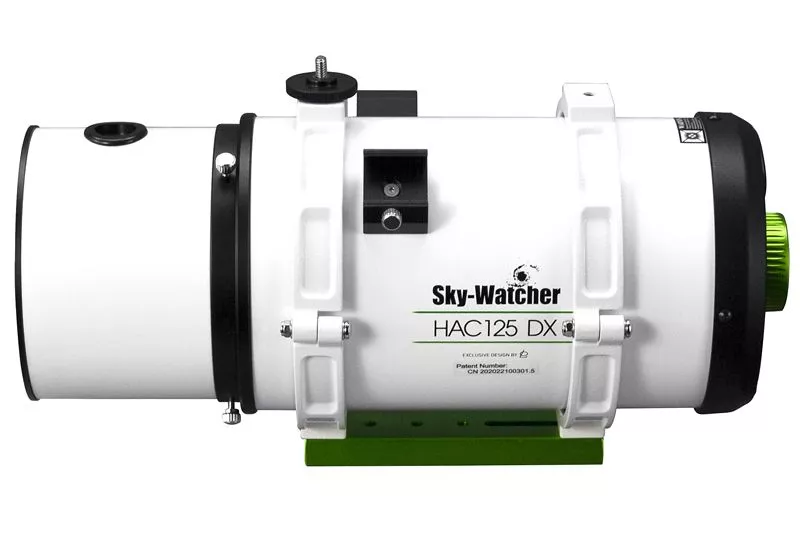

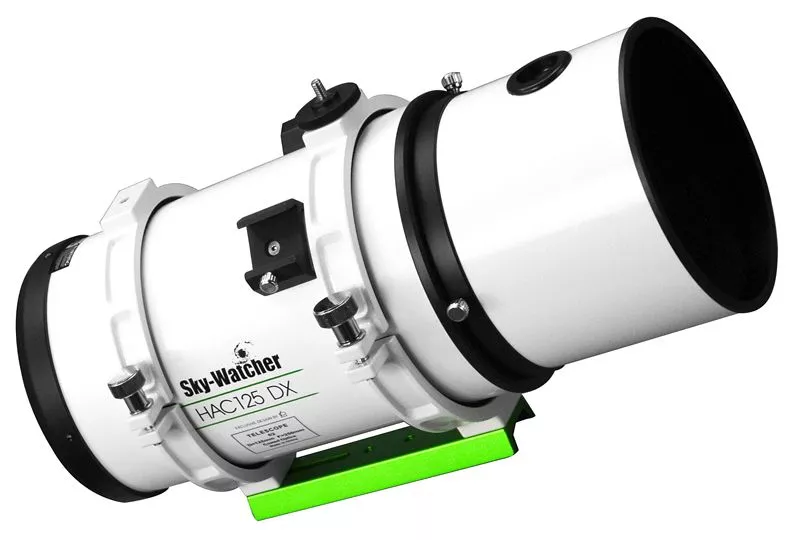

SkyWatcher HAC125DX Mini Astrograph Telescope

125mm f/2 Honders Advanced Catadioptric Astrograph

The new, ultimate travel astrograph!

The all-new, enhanced Honders Catadioptric Mini Astrograph HAC125DX is the smallest and brightest astrograph you'll find.

The improved Honders Catadioptric optical design with hybrid refractive and reflective surfaces enabled the creation of the sharpest, brightest, and lightest catadioptric astrograph.

This Sky-Watcher Honders Catadioptric (HAC) telescope is perfect for demanding astrophotographers who want a fast astrograph for wide-field imaging in a compact and lightweight unit. Unlike small refractor astrographs, the HAC125DX offers a fast f/2 focal ratio, allowing you to achieve exposure times five times faster than a standard f/4.9 lens. With this enormous light intensity, you can collect more data in less time, and autoguiding is no longer necessary.

Compared to the original HAC125, the HAC125DX is equipped with a back-focus mechanism on the primary mirror. This allows you to choose from significantly more cameras, and focusing is much easier. The telescope produces a 16mm image circle, ideal for cameras with IMX533 and 585 sensors. The telescope is only 40cm long with dew shield, offering a powerful imaging platform for both beginners and experienced astrophotographers.

The new HAC125DX is the ultimate travel astrograph that you'll always have with you. The extremely fast optics and small size make it easy to take with you, allowing you to enjoy your hobby. Connect it to your favorite mount, and you're ready to capture the universe in minimal time! The HAC125DX isn't just another astrograph; it's an ingenious mini astrograph, ready for all your astronomy adventures!

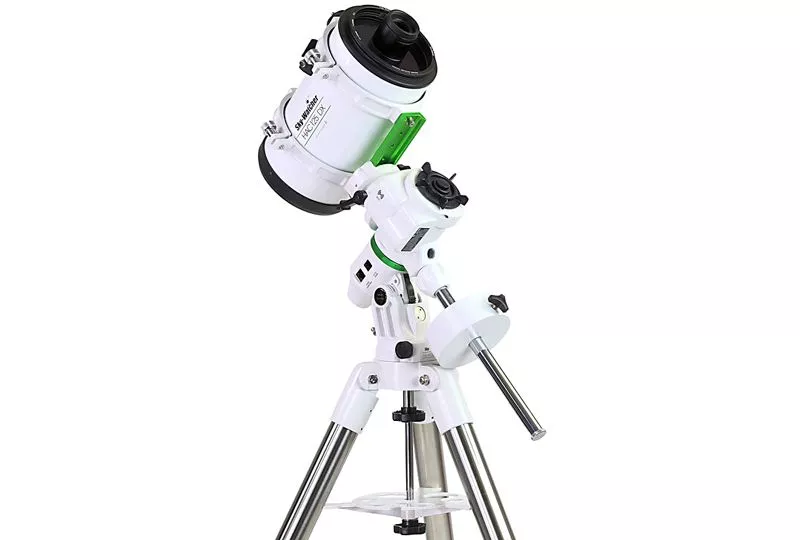

Please note: The camera and the EQ-AL55i Pro mount shown in the product photos are not included.

Honders Advanced Catadioptric Optical Design
Focal Length: 250mm
Fast f/2 Focal Ratio
Aperture: 125mm (5")
Mirror Type (Monolithic/Conical/Fused Conical): Mangin
Radiant Aluminum Quartz (RAQ)™ Mirror Coating
Corrector Coating: HTMC™
Weight: 3.82kg
Length: 40cm
16mm Image Circle
Secondary Mirror (Corrector) Obstruction: 53mm
Collimable Primary Mirror Cell

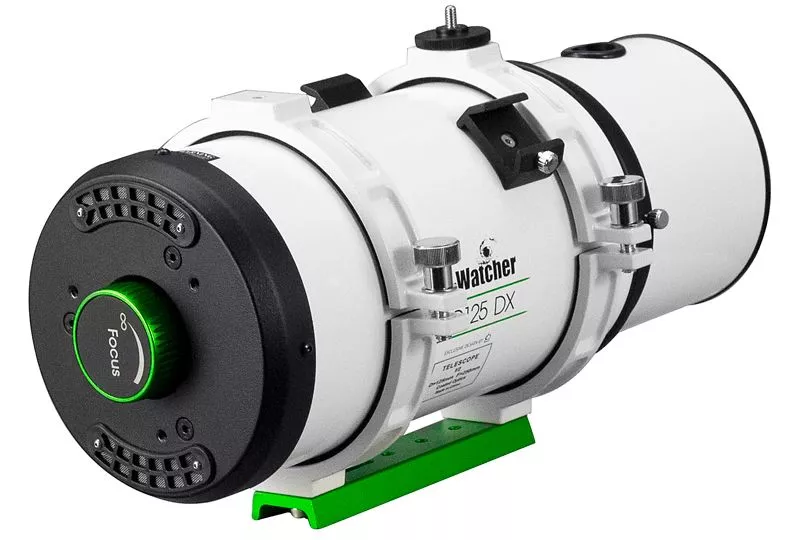

Rear Primary Mirror Helical Focuser
Tube Rings with 45mm Dovetail Rail
2 Finder Mounts
1.25" Thread

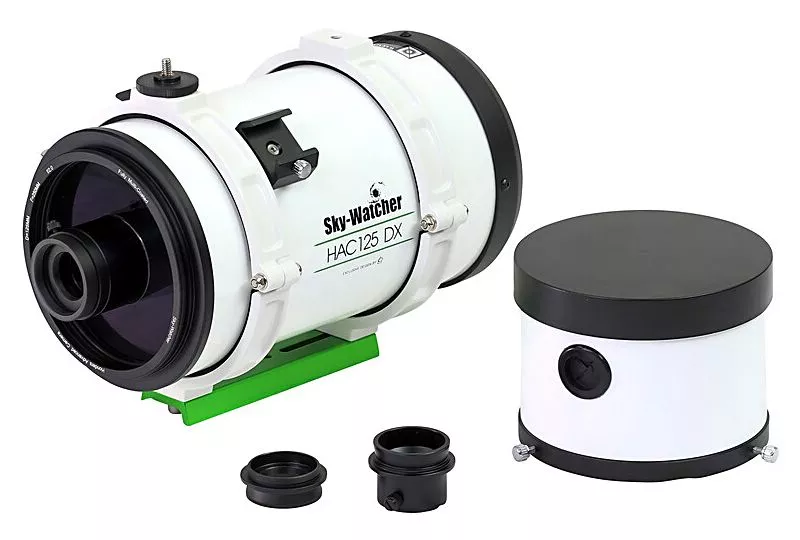

Included:

125mm f/2 HAC Telescope Tube
Dew Shield with Cable Entry
1.25" Adapter
T2 Adapter

General
Shipping Weight
6 kg
Shipping Size
50 x 35 x 25 cm
Optics
Design
Honders Advanced Catadioptric System
Focal Length (mm)
250
Aperture (mm)
125
Focal Ratio
f/2
Focuser
Helical Primary Mirror Focusing
Tube Weight (kg)
3
