Product no.: 20995

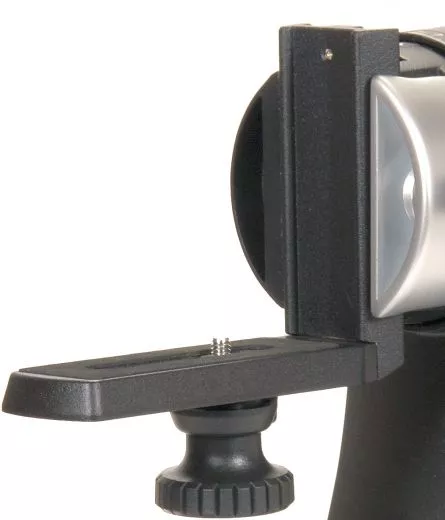

90° angle bracket / L-bracket Vixen-GP L-rail

90° angle bracket for mounts with side quick coupling

The L holder allows spotting scopes, binoculars or even small telescopes to be mounted on mounts with side quick coupling.

Mounting examples:

-- Vixen Porta mount
-- Celestron NexStar GoTo mounts
-- GIRO mounts with quick coupling

All of these mounts have a side quick coupling. Binoculars or spotting scopes would always be offset by 90°. This makes a good view impossible.

The L holder enables "normal" mounting and thus comfortable observation.

Which devices is the L-holder suitable for:

The distance from the 1/4" connection screw to the rail is 102mm. All devices that are narrower than 102mm from the photo tripod connection to the edge fit on the L-holder.

Examples:
-- Binoculars up to 100mm opening
-- All spotting scopes
-- Telescopes up to approx. 150mm opening
-- All standard cameras

The connection:

The L-holder is supplied with a 1/4" screw. You can therefore use the device's photo tripod connection for mounting.



Price:

43,00 EUR

19 % VAT incl. excl. Shipping costs
