Product no.: ALccd5L-IIc

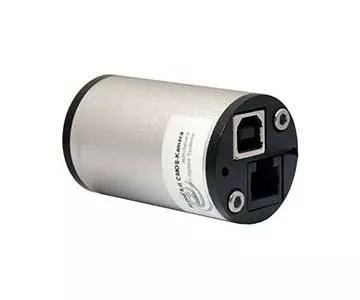

AstroLumina ALccd5L-IIc Guiding, Lunar and Planet camera Color

ALccd5L-IIc - High Speed ​​Lunar and Planetary Camera, Color Version

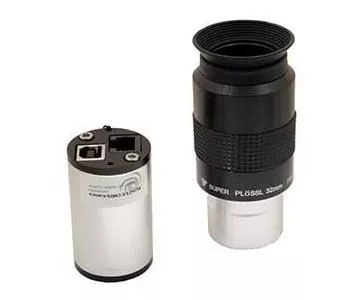

With a diameter of 1.25 inches, it fits exactly into the focuser instead of an eyepiece.
♦ Color CMOS chip Aptina MT9M034

♦ Pixels: 1280 x 960

♦ Sensor size: 4.83 mm x 3.63 mm

♦ Pixel size: 3.75 μm

♦ up to 200 frames per second


The new camera is specially designed for moon / planetary shots. With a diameter of 1.25 ", it fits exactly into the focuser instead of an eyepiece.

Data transfer (up to 39 MB / s) is via a USB 2.0 interface; for guidance purposes, an ST-4 interface is also included.

Other features:

♦ A UV / IR cut filter is installed; the filter can be unscrewed.
♦ The camera drivers work under WIN XP SP3 to WIN 8 64-bit.
♦ Single shots can be taken as bmp, jpg, tiff or fit.
♦ Videos can be saved as avi files.
♦ Applications: all ASCOM-enabled. EZPlanetary is included, in FireCapture the model was also implemented.



Sensor: Aptina MT9M034
Sensor size: 4.83 mm x 3.63 mm
Pixels: 1280 x 960
Selection method: progressive scan
Closure: electronically
Exposure time: 20 μs to 99 s
Quantum efficiency: blue 52%, green 62%, red 58%
Frame rate: 30 to 200 B / s
UV / IR cut filter: integrated, can be unscrewed
Connection to the telescope: C-Mount and 1.25 "
Support dimension: 10.4 mm


♦ Camera head
♦ USB cable
♦ Autoguider cable RJ-12 (ST-4 cable)
♦ Adapter from camera winch to C-Mount, with UV / IR cut filter
♦ Adapter from C-Mount to 1.25 "socket with filter thread
♦ Parfocal ring with knurled screw
♦ storage box
♦ German manual
♦ Software and drivers

Price:

195,00 EUR

19 % VAT incl. excl. Shipping costs
