Product no.: ASI1600MMC-Kit

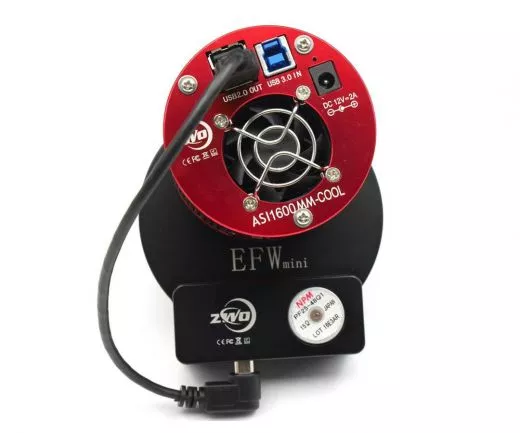

ZWO ASI1600MM-C camera kit, filter wheel and L-RGB filter

A perfect set for deep-sky astro photography - cooled MONO ASI1600 camera V3 version, motorized filter wheel and a set of high quality L-RGB filters.
♦ ASI 1600MM-Cooled CMOS MONO astro camera with 21.9 mm sensor diameter and 3.8 μm pixels

♦ ZWO motorized filter wheel for 5x 1.25 "filters - controlled directly by the camera

♦ ZWO 1.25 "L-RGB filter set - optimally matched to the color weighting of the CMOS sensor of the ASI 1600 mono camera - for color-optimized recordings

♦ Working distance of the camera including filter wheel: only 37.5 mm (from T2 thread to the camera sensor)

♦ Connection to the telescope: T2 thread (female thread), 2 "socket and 1.25" socket




ZWO ASI 1600MM-C Deep Sky imaging kit for L-RGB recordings
A complete range for astrophotographers, consisting of the well-known ASI 1600MM Cool cooled Astro camera, the electronic EFWmini filter wheel for 5x 1.25 "filters and the L-RGB filter set, which is optimally matched to the camera sensor of the ASI 1600 Mono You get high-quality deep-sky recordings right from the start, and the complete kit is optimally matched to each other and can be easily adapted to almost any telescope.

The set consists of:


ZWO ASI 1600MM Cool Black and White CMOS Camera

♦ Sensor diameter 21.9 mm
♦ 3.8 μm pixels
♦ Powerful Peltier cooling up to 45 ° C under ambient conditions




ZWO motorized filter wheel for 5x 1.25 "filters

♦ Precise engine filter change
♦ Only one cable to the camera needed - no clutter
♦ High-quality CNC design in aluminum housing





ZWO 1.25 "L-RGB filter set

♦ Optimally matched to the sensor of the ASI 1600 Mono
♦ UV / IR blocking filter for luminance and RGB for color
♦ High quality merge-coated interference filters



Sensor: 4/3 ?? CMOS
Resolution: 16 megapixels, 4656 * 3520
Pixel size: 3.8 μm
Sensor size: 21.9 mm diameter
Exposure time: 32 μs to any desired
Cooling: Peltier cooling up to 45 ° C under ambient conditions
Software requirement: USB 3.0 should be supported by the operating system
Bit rate: 12 bit output (12 bit ADC)
Telescopic connection: T2, 2 "and 1.25"
Distance T2 thread to sensor: 17.5 mm
Size: 78 mm in diameter and 86 mm in length
Weight: 410 grams
Filter: -----
Type: Motorized filter wheel
Telescopic side connection: T2 internal thread
Camera side connection: T2 external thread
Other connections: 1.25 "(via adapter - included)
Length: only 20 mm optical length (from T2 to T2)
Weight: Below 300 grams
- L-RGB filter set: ---
Connection: 1.25 "-Filtergewinde
Remuneration: Multi-Coated
Type: interference filter


♦ ASI camera cooled
♦ Quick Start Guide
♦ USB cable
♦ Motorized filter wheel
♦ T2 connectors - 1x male, 1x female
♦ T2-T2 reversing ring - turns a T2-internal T2 external thread
♦ USB2.0 cable
♦ 4x 1.25 "filter (L + RGB)

Price:

MSRP 2.117,00 EUR
your price 1.998,00 EUR

19 % VAT incl. excl. Shipping costs
