Product no.: 20325

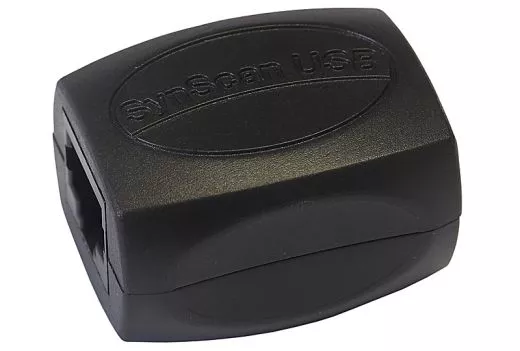

Skywatcher Synscan USB Dongle for GoTo Mounts without USB

With this adapter equatorial and alt-azimuth SynScan mounts from Skywatcher can be controlled from a PC via USB.

♦ Easy connection to hand controller port

♦ Standard USB B port - easily available cable to computer

♦ Suitable for equatorial and alt-azimuth SynScan mounts

♦ Power supply via USB makes mains adapter unnecessary

♦ Also suitable for updates

♦ USB cable is not supplied



SkyWatcher SynScan USB Adapter for equatorial and alt-azimuth SkyWatcher Mounts

The high quality Sky-Watcher USB dongle allows the control via PC or Android device of all Sky-Watcher SynScan GoTo mounts. It only has to be connected to the manual control box input of the mount with the included cables. For the EQ6 Pro mount the original manual control box cable is used, because it has a RS-232 input. The input port of the dongle is connected to the computer via a normal USB cable with A and B plug (not supplied).

The mounts can then be controlled via PC with the SynScan Pro App for Windows, additionally all updates can be done with the MCFirmware Loader.

For Android you also need a special cable from the device to the USB port of the dongle. Then the mount can be controlled with the SynScan Pro App for Android.

Mounts with built-in USB socket or V5-SynScan-Handbox (which has a USB socket) do not need this adapter.


Software download

The software SynScan Pro can be downloaded from the following link:
Link to the international Skywatcher download page


Computer side connection:	USB 1.0/2.0 B socket
Connection on the mount side:	via adapter cable with RJ12 or RJ45 modular plug for hand controller port
Suitable for mounts:	Skywatcher SynScan alt-azimuth or equatorial, except EQ6 Pro
Power supply:	Via USB
Examples for software:	SynScan Pro App, EQMOD, K-Star, Cartes du Ciel, Stellarium, Starry Night family, TheSky

In the box
♦ SynScan USB adapter
♦ 2 adapter cables

Price:

35,00 EUR

19 % VAT incl. excl. Shipping costs
