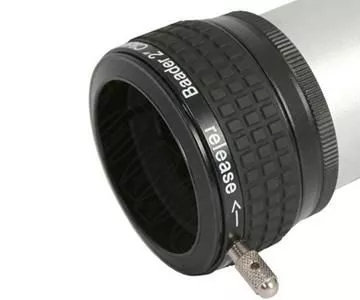

Baader 2" ClickLock clamp for M56 thread of Skywatcher and Celestron Crayford focusers

Product no.: 2956256

Baader 2" ClickLock clamp for M56 thread of Skywatcher and Celestron Crayford focusers



High-quality 2" clamp suitable for focusers with M56x1 external thread, for example almost all Skywatcher and Celestron Crayford focusers
♦ Connection telescope side: M56 internal thread (female)

♦ Connection eyepiece side: 2" receptacle (female)

♦ Overall height: 30 mm

♦ Clamping: KlickLock clamping perfectly on the optical axis - clamping as if screwed

♦ 20° rotation by pressing the rotary lever is enough to fix all 2" accessories absolutely securely and firmly

♦ Compression clamping ring made of thick-walled hard bronze, remains dimensionally stable even after many years of use and holds the most expensive accessories absolutely securely without causing scratches or pressure points




Baader 2" click lock clamp for focusers with M56x1 external thread
The clamp fits, among other things, the Crayford focuser of many telescopes from Sky-Watcher and Celestron.

The Baader ClickLock® system at a glance
Never before has an eyepiece mount for amateur astronomy been manufactured in such a complex manner. The Baader ClickLock (1.25"/2") is a custom-fit, very solid eyepiece clamp without clamping screws (!). Inserted eyepieces/CCD cameras and the like are twist-proof and are still not scratched! With a small rotation of 20°, each eyepiece is clamped firmly.

You don't have to tighten our ClickLock clamps "until the blood runs out" because the mechanical principle comes from professional mechanical engineering. This is how the tool holder works in modern CNC milling centers. The tightening torque is multiplied by skilful use of leverage. The inserted object is held on three sides like with a quick-release chuck and can therefore no longer perform any tilting movements.

Details on the 2" ClickLock system

♦ A 20° rotation by gently pressing the rotary lever is enough to fix all 2" accessories absolutely securely and firmly.

♦ Ratchet function - acoustically and haptically indicates the position of the clamp. So you can see in the dark and without looking whether the terminal is open or closed.

♦ Massive clamping ring - holds the most expensive accessories absolutely securely and without causing scratches and pressure points.

♦ The position of the rotary lever can be adjusted using 6 slotted camera screws or 6 Allen screws with a hex key to make the CL clamps optionally usable for left- and right-handers.




Thread telescope side: M56x1 internal thread (female)
Connection eyepiece side: 2" receptacle (female)
Height: 30 mm (without external thread)


♦ Baader ClickLock adapter

Price:

Our previous price 86,00 EUR
Now only 82,00 EUR
you save 5 % /4,00 EUR

19 % VAT incl. excl. Shipping costs
