Product no.: 2451101

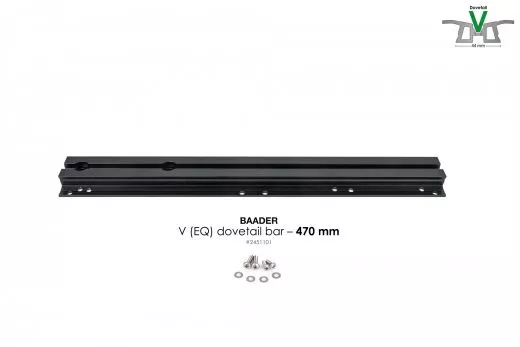

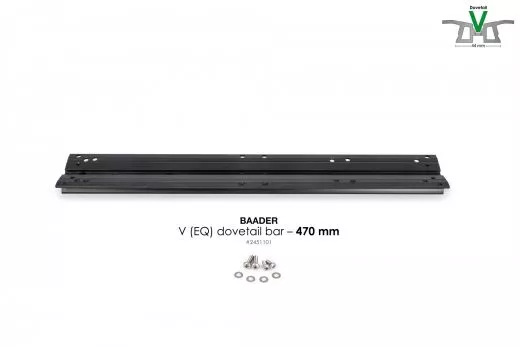

Baader rail V, 470mm for SC C8, C9.25 and C11 on Vixen GP clamp

suitable for heavy accessories
V-dovetail rail with radius and with holes for SC telescopes (C8, C9¼, C11)
Only suitable for SC and HD tubes with flat back plate of the older series. (For Celestron tubes with a new, round back plate, please use the rail V, 455mm 9.25"/11" SC/HD (#2451745, € 85) or rail V, 345mm for 8" SC/HD (#2451734, € 73)
Length = 470mm, with 70mm wide support surface for attaching any tube clamp
Suitable for the Vixen clamps (and their clones), as well as all Celestron mounts and Sky-Watcher mounts
Black anodized, weight: approx. 640g
With radius and with holes for SC telescope tubes (C8, C9¼, C11, Meade 8") and with 70mm wide support surface for attaching any tube clamp, suitable for the Vixen clamps (and their clones), as well as all Celestron mounts and Sky-Watcher mounts, weight 640 g.

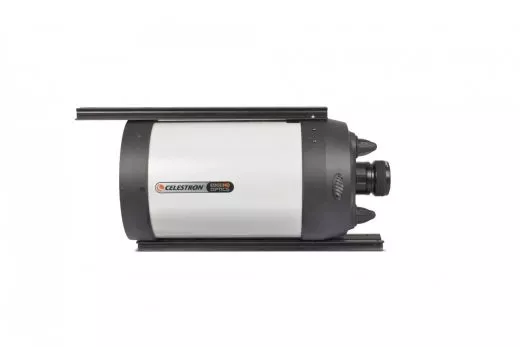

For years we have been annoyed by the prism rails for the 8" Schmidt-Cassegrain optics that are far too short (if you connect a CCD camera, for example, the optics cannot be balanced...). We have therefore spent several thousand euros on a continuous casting mold and can have these prism rails made exclusively for us. A real gain in functionality for every Schmidt-Cassegrain optic. The rail can protrude either at the back or the front (!) of the C8 tube.

MANUFACTURER Baader Planetarium
EAN CODE 4047825012159
ARTICLE NUMBER (#) 2451101
NET WEIGHT (KG) 0.64
RAIL LENGTH 470 mm
CLAMPING SYSTEM Dovetail clamp
RAIL OR CLAMP? Rail
TYPE V (44mm) Celestron/Vixen
THREADED HOLES FOR Celestron C8, Celestron C9¼, Celestron C11



Price:

Our previous price 83,00 EUR
Now only 80,00 EUR
you save 4 % /3,00 EUR

19 % VAT incl. excl. Shipping costs
