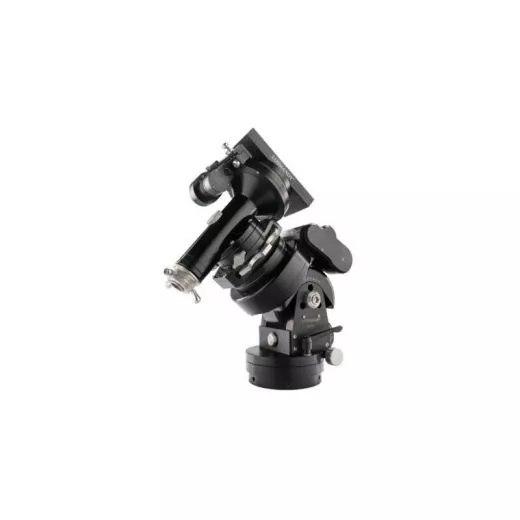

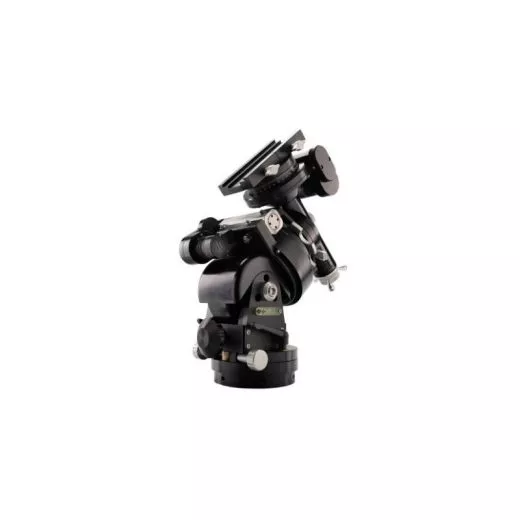

Losmandy mount G11T Titan Gemini 2 GoTo
Product no.: 62546
Losmandy mount G11T Titan Gemini 2 GoTo
This Losmandy mount not only has an elegant external finish, its interior also consists of precisely machined aluminum and stainless steel components. Adjustable slip clutches in both axes make handling and navigation in the sky easier. Because you don't have to blindly search for clamping levers at night - the mount stays where you want it.
The mount is equipped with the GoTo system Gemini 2:

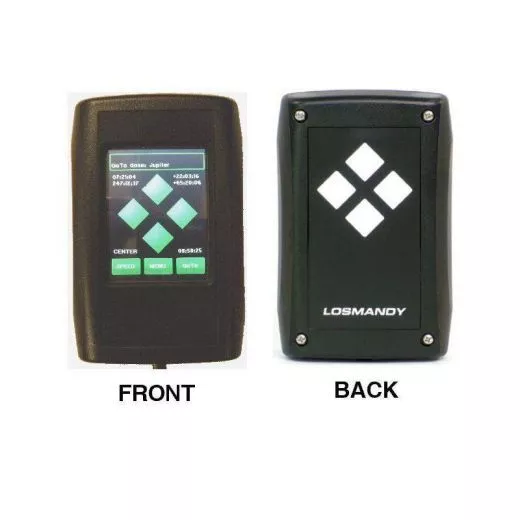

The colored touchscreen clearly guides you through the menu in four pre-selectable languages: English, German, French and Spanish
On the back of the hand control box there are four raised buttons for manual movement of the axes. This means you can move the telescope sensitively with your eye on the eyepiece or computer screen without using the touchscreen.
Database with over 40,000 objects
DC servo motors, instead of less precise stepper motors
GPS compatible with optional receiver (see accessory recommendation)
Saves the last setting even after switching off" class="tw-data-text tw-text-large tw-ta" data-placeholder="Übersetzung" data-ved="2ahUKEwj11qjzwpeJAxXz8wIHHTF6A5MQ3ewLegQIBxAT" dir="ltr" id="tw-target-text" style="text-align:left">Losmandy mounts have long enjoyed an outstanding reputation. They are characterized by precise control and a lot of love for mechanics.
This Losmandy mount not only has an elegant external finish, its interior also consists of precisely machined aluminum and stainless steel components. Adjustable slip clutches in both axes make handling and navigation in the sky easier. Because you don't have to blindly search for clamping levers at night - the mount stays where you want it.
The mount is equipped with the GoTo system Gemini 2:
The colored touchscreen clearly guides you through the menu in four pre-selectable languages: English, German, French and Spanish

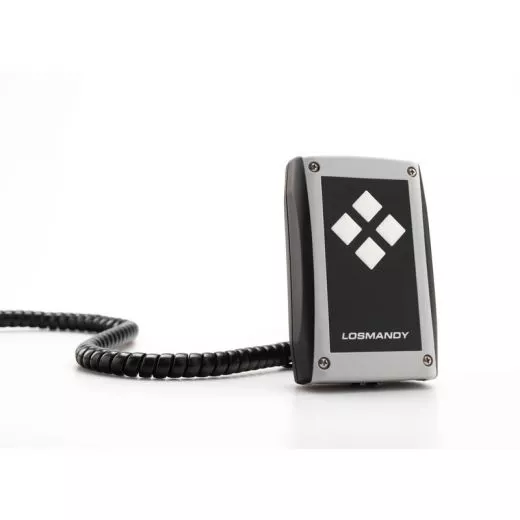

On the back of the hand control box there are four raised buttons for manual movement of the axes. This means you can move the telescope sensitively with your eye on the eyepiece or computer screen without using the touchscreen.
Database with over 40,000 objects
DC servo motors, instead of less precise stepper motors
GPS compatible with optional receiver (see accessory recommendation)
Saves the last setting even after switching off
undefined
The advantages at a glance:
compact and transportable
Mount with high load capacity
High quality: precise aluminum and stainless steel components
Typically stable 3 inch saddle plate for 3 inch dovetail rails
ultra-fast assembly
Buttery smooth running thanks to needle bearings!
Mounting for optional polar finder telescope, but polar alignment is done electronically as standard.

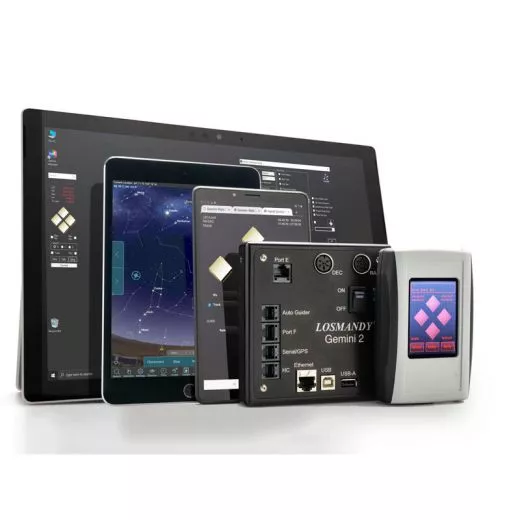

including counterweight" class="tw-data-text tw-text-large tw-ta" data-placeholder="Übersetzung" data-ved="2ahUKEwj11qjzwpeJAxXz8wIHHTF6A5MQ3ewLegQIBxAT" dir="ltr" id="tw-target-text" style="text-align:left">The positioning accuracy of 0.5 arcseconds is a welcome relief for astrophotographers. The Periodic Error Correction (PEC) compensation compensates for inaccuracies and allows you to achieve precision that meets modern astrophotography. Are you planning astrophotography with an autoguiding camera? That is also possible. You connect your camera via an autoguiding port (TTL). The control also has two USB ports. Without any further driver problems, connect the mount to the PC and control it via a planetarium program. Thanks to the firmware update via the Internet, you always stay up to date.
The advantages at a glance:
compact and transportable
Mount with high load capacity
High quality: precise aluminum and stainless steel components
Typically stable 3 inch saddle plate for 3 inch dovetail rails
ultra-fast assembly
Buttery smooth running thanks to needle bearings!
Mounting for optional polar finder telescope, but polar alignment is done electronically as standard.
including counterweight
Divisible mount head: For easier transport,
the declination axis can be separated from the mount body.
The two parts of the mount then only weigh 20 and 8 kilograms!
Our expert comment:
The Gemini 2 computer now includes "Level 6".
(Jan Ströher)
Technical data
Performance
Max. payload (kg)
34
Power supply (volts)
12-18
Current (A)
3
Worm gear teeth (DEC) (piece)
360
Worm gear teeth (RA) (piece)
270
Axle bearing
needle
Worm wheel material
aluminum
Material worm shaft
Brass
Diameter worm wheel DEC (mm)
143
Diameter worm wheel RA (mm)
171
Weight of the mount (kg)
28
Counterweight(s) (piece)
1 (10kg)
Counterweight rod diameter (mm)
32
Mount saddle
Losmandy & Vixen
Pole height adjustment (°)
12 - 70
Azimuth fine adjustment (°)
+/- 10
Integrated clock
Yes
Type of engine
servo motor
Tracking accuracy (arcseconds)
+/- 5
Diameter declination axis (mm)
32
Diameter right ascension axis (mm)
50
Special features
PEC correction
Yes
Goto system
Yes
PC controllability
Yes
Internet updateable
Yes
Pole height scale
Yes
dragon-fly
Yes
equipment
tripod
without tripod
Polar finder
no
Generally
Total weight (kg)
33
series
G11
type
Mount
Construction type
parallactic
GoTo control
Database (objects)
40,000
Language version of the GoTo control
English, German, French, Spanish
Interfaces
Autoguider, USB
software
Gemini 2
Autoguiding
Yes
PEC correction
Yes
Price:
Our previous price 8.090,00 EUR
Now only 6.490,00 EUR
you save 20 % /1.600,00 EUR
19 % VAT incl. excl. Shipping costs
