Product no.: 75960

Losmandy mount GM811G-LT Gemini 2 GoTo





The Gemini 2 computer now includes "Level 6".

(Jan Ströher)

The Gemini 2 computer now includes "Level 6".

(Jan Stroeher)

Technical data
Performance
Max. payload (kg)
22
Power supply (volts)
12-18
Power consumption idle (mA)
500
Worm gear teeth (DEC) (piece)
180
Worm gear teeth (RA) (piece)
360
Axle bearing
needle

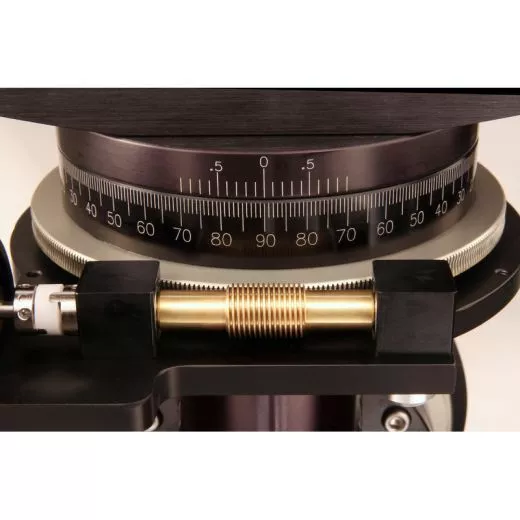

Worm wheel material
aluminum
Material worm shaft
Brass
Diameter worm wheel DEC (mm)
71
Diameter worm wheel RA (mm)
143
Weight of the mount (kg)
12
Counterweight(s) (piece)
1 (5kg)
Counterweight rod diameter (mm)
32

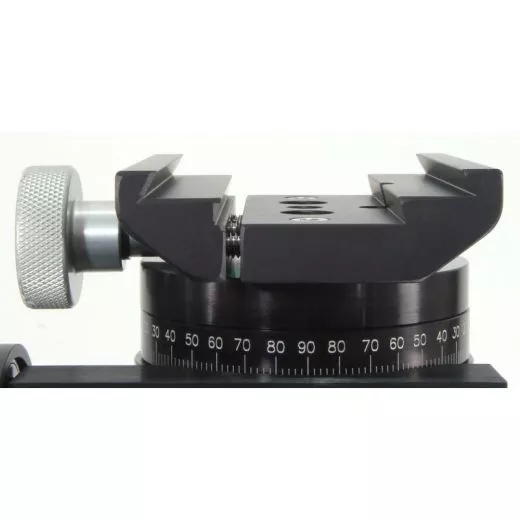

Mount saddle
Losmandy & Vixen
Special features
PEC correction
Yes
Goto system
Yes
PC controllability
Yes
Internet updateable
Yes
Pole height scale
Yes
equipment
tripod
without tripod
Polar finder
no
Generally
Total weight (kg)
17
series
GM8
type
Mount
Construction type
parallactic
GoTo control
Database (objects)
40,000
Language version of the GoTo control
English, German, French, Spanish

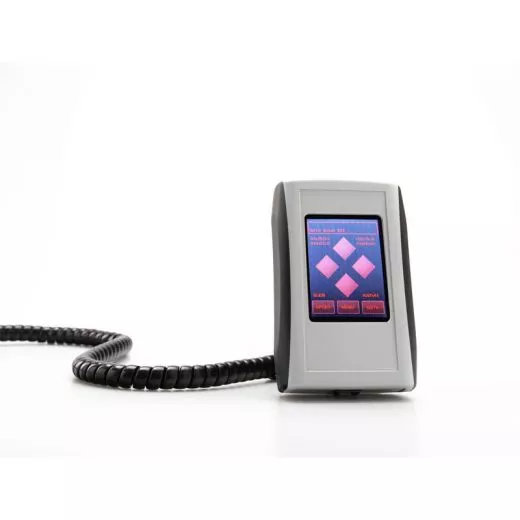

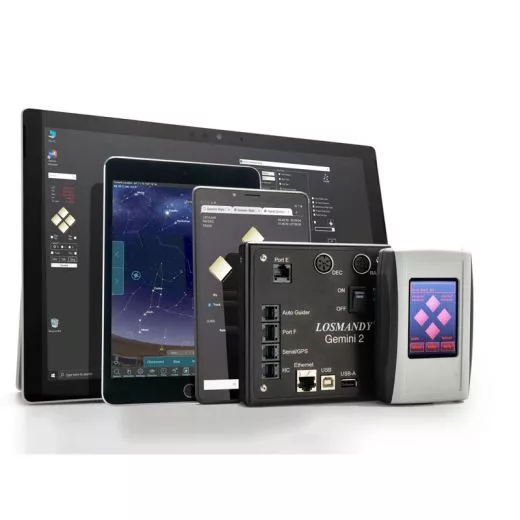

Hand control box
Gemini 2
Interfaces
Autoguider, USB">Our expert comment:

The Gemini 2 computer now includes "Level 6".

(Jan Ströher)

The Gemini 2 computer now includes "Level 6".

(Jan Stroeher)

Technical data
Performance
Max. payload (kg)
22
Power supply (volts)
12-18
Power consumption idle (mA)
500
Worm gear teeth (DEC) (piece)
180
Worm gear teeth (RA) (piece)
360
Axle bearing
needle
Worm wheel material
aluminum
Material worm shaft
Brass
Diameter worm wheel DEC (mm)
71
Diameter worm wheel RA (mm)
143
Weight of the mount (kg)
12
Counterweight(s) (piece)
1 (5kg)
Counterweight rod diameter (mm)
32
Mount saddle
Losmandy & Vixen
Special features
PEC correction
Yes
Goto system
Yes
PC controllability
Yes
Internet updateable
Yes
Pole height scale
Yes
equipment
tripod
without tripod
Polar finder
no
Generally
Total weight (kg)
17
series
GM8
type
Mount
Construction type
parallactic
GoTo control
Database (objects)
40,000
Language version of the GoTo control
English, German, French, Spanish
Hand control box
Gemini 2
Interfaces
Autoguider, USB

Price:

4.490,00 EUR

19 % VAT incl. excl. Shipping costs
