Product no.: ASRED08-140

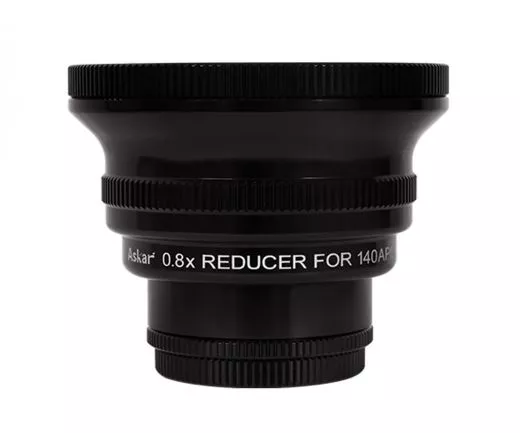

Askar 0.8x reducer/corrector for 140APO

The Askar 0.8x Reducer - Corrector for the 140mm f7 Triplet APO turns the 140 mm APO into a fast astrograph.

♦ developed for the Askar 140APO

♦ shortens the focal ratio to f5.6

♦ suitable for full frame cameras


Askar 0.8x Reducer - Corrector for the 140mm f7 Triplet APO

The Askar 140 APO 0.8x Reducer is optimized for the Askar 140APO and expands the scope of use of the telescope.

The 0.8x reducer reduces the focal ratio of the Askar 140APO to F5.6. It is a standard reducer that also performs the field flattening function. A shorter focal ratio expands the telescope's field of view and allows for shorter exposure times, making it suitable for capturing large areas of nebulae, star clusters and faint, fast-moving celestial objects.

The 0.8x reducer is designed as a triplet and offers an image circle of 44 mm, making it also suitable for full-frame cameras. The back focus from the M48 thread is standard 55 mm. The telescopic-side thread is M84x1. On the camera side, the reducer is equipped with adapters in sizes M54x0.75 and M48x0.75. At the same time, it has a built-in 2-inch filter thread M48x0.75. The CNC-milled metal dust caps protect against damage and dirt when not in use.



140APO focal length with 0.8x reducer: 784mm
140APO focal length ratio with 0.8x reducer: f/5.6
Optical construction: triplet

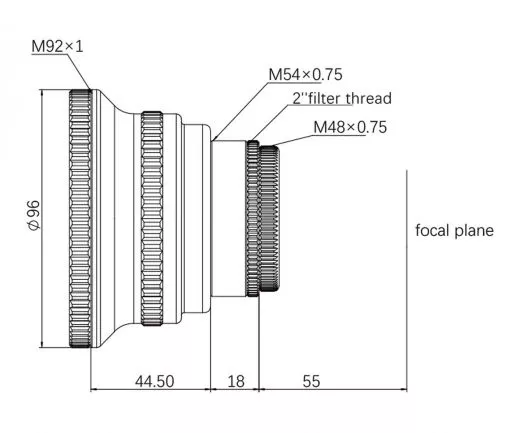

Back Focus: 55mm（from the base of M48 male thread）
Camera-side thread: M54×0.75, M54×0.75-M48×0.75 (M48×0.75 filter thread inside)


♦ Reducers
♦ Dust caps




Price:

449,00 EUR

19 % VAT incl. excl. Shipping costs
