Product no.: PEG-INDIGOFW7-2

Pegasus Astro Indigo filter wheel - 7 positions for 2" filters

This filter wheel enables motorized, computer-controlled filter changes.

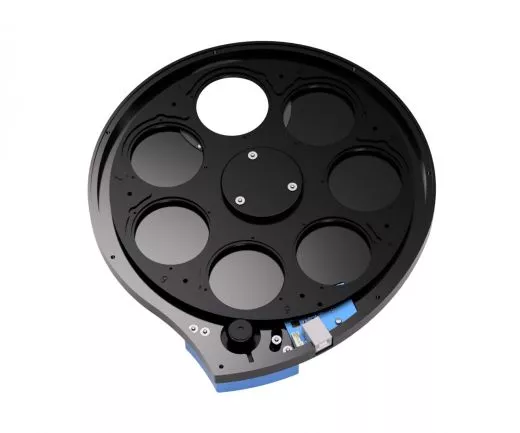

Offers 7 positions, precisely defined
Accepts round filters, 2" mounted or 50mm unmounted

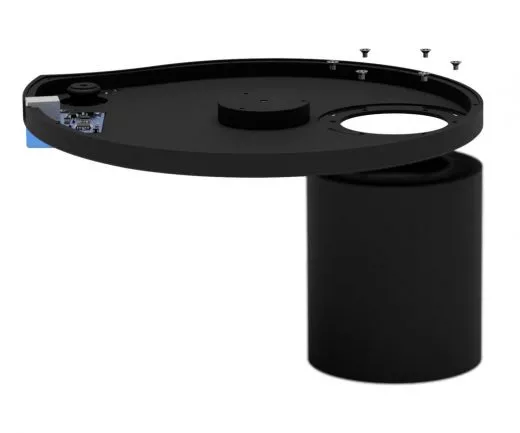

Easy to insert the filters after removing the telescope side cover
Thin design, only 19.6mm optical path
Alignment can be finely adjusted
Single cable operation via USB, no power cable
Pegasus Astro Indigo filter wheel - 7 positions for 2" filters

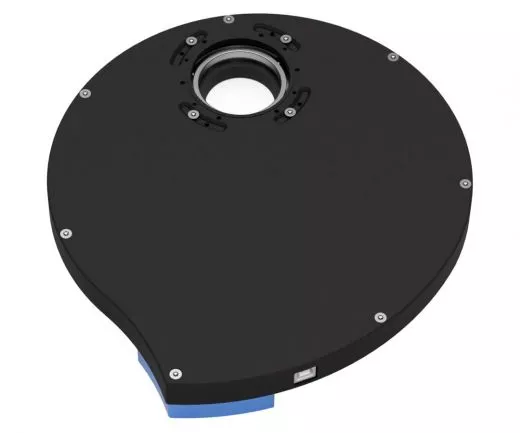

Pegasus Astro's new high quality Indigo filter wheel features a 7 position carousel for mounted 2" or unmounted 50mm filters.

Accurate filter selection
The filter wheel rotates clockwise or counterclockwise to select filters. A combination of direct-drive stepper motor and optical encoder ensures your filter selection is precise and absolutely accurate at every filter position.

Thin design
The Indigo filter wheel housing is made of CNC machined aluminum. The high-quality aluminum alloy made it possible to make the filter wheel as thin as possible (19.6 mm).

Alignment for both adapters

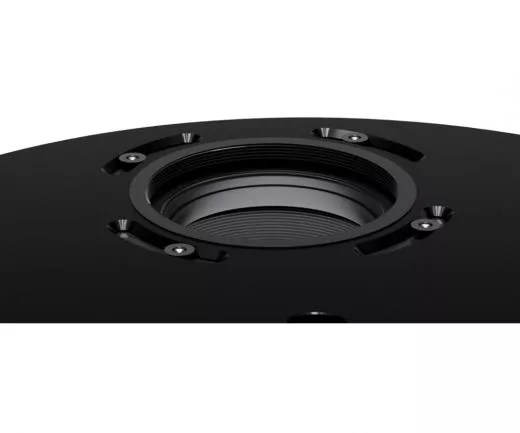

Both sides of the filter wheel have M54 openings. The screw adapter allows you to properly align the orientation of your camera or telescope sides. Simply loosen the screws and rotate the adapter to the desired orientation.

Camera connection
The 6 screw holes on the camera side allow direct connection of astronomical cameras, which follow the same 6-hole pattern (62mm diameter). A handy feature allows you to reduce the entire flange focus range instead of attaching adapters.

Operation via a cable
The filter wheel only requires a USB2 cable (Type B). This simplifies connectivity as no separate power supply is required when using USB control.

Installation instructions
The manufacturer offers installation instructions in English, which you can download here.

Software and drivers
The manufacturer provides its Unity platform, which you can download here. The Unity platform contains an ASCOM driver.
Filter size: Round filters, 2" mounted or 50 mm unmounted
Number of filter places: 7
Direction of rotation: Clockwise or counterclockwise
Drive and filter lock: stepper motor and IR sensor for accurate position
Telescopic side connection: M54x0.75
Camera side connection: M54x0.75
Fine alignment: On both connections
Computer connection: USB 2.0 Type B
Power supply: 5V (via USB), max. 300mA
Material: aluminum, CNC milled

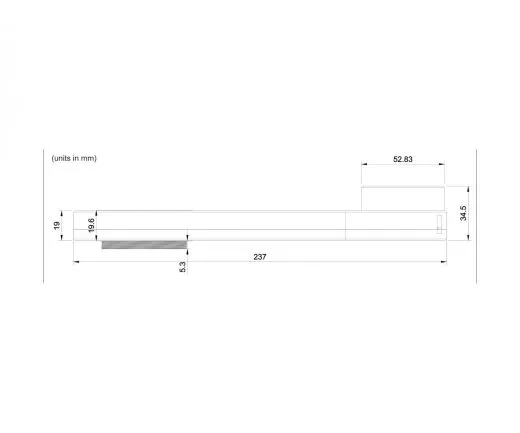

Diameter: 237mm
Maximum mechanical thickness: 34.5mm
Optical path length: 19.6 mm
Weight: 0.9kg
Filter wheel
M2 screws for unmounted filters
USB 2.0 cable type B, 1.8 m




Price:

539,00 EUR

19 % VAT incl. excl. Shipping costs
