TS-Optics ToupTek Color Camera and Autoguider - D=6.46 mm Sensor
Product no.: TS327CMINI
TS-Optics ToupTek Color Camera and Autoguider - D=6.46 mm Sensor

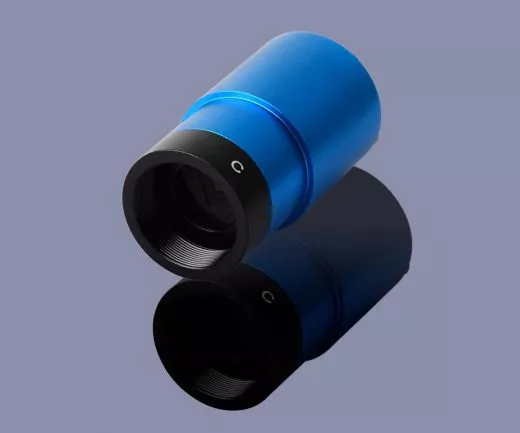

ToupTek planetary camera and autoguider in a compact 1.25" housing with Sony IMX327 color sensor with high resolution.
CMOS color sensor IMX327 from Sony with a high QE - always find a guide star
Pixel size 2.9 µm - allows you to guide large telescopes with small guiding scopes and to use finder guiding
Sensor size 5.6 x 3.1 mm

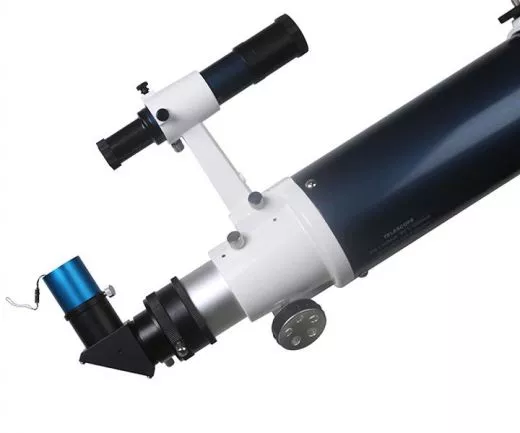

Practical 1.25" body - you can insert the autoguider / camera like an eyepiece into the guiding scope, finder or off axis guider.
A true lightweight with only 70 grams and no bigger than a 1.25" eyepiece
Extensive scope of delivery: USB cable, ST4 autoguiding cable, C mount adapter and 1.25" extension tube
You can also use the camera as a high-quality lunar and planetary camera. Due to the sensitive sensor even images of deep sky objects are possible.
Incl. adapter to C thread for the connection of industrial camera lenses
The GP702000B is a very good autoguider and much more. The modern Sony IMX327 color sensor convinces with a high quantum efficiency, which simplifies guide star search and ensures short exposure times for planetary images. Another special feature is the extremely high resolution due to 2.9 µm pixels. This makes this camera very interesting for astrophotography.
You always find a guide star, even with an off-axis guider - guaranteed!
With the high resolution, you can easily guide telescopes of up to 11" aperture with a 50 mm finder - guiding with the finder becomes possible.
The practical 1.25" housing makes adaption easy. Push the camera into the 1.25" receptacle, focus and get started with guiding.
Short working distance from the front surface to the sensor - you can reach focus even with short maximum distances.
With only 70 grams weight, the focuser is almost not loaded.
Of course, ST4 cable and ST4 port are supplied. Connect the camera directly to the autoguiding port of the mount.
Highly sensitive sensor combined with high resolution for ultimate lunar and planetary photographs.
-- Color sensor allows color imaging without complex processing
Camera fits any 1.25" focuser. Clamp the camera like an eyepiece, focus and start astrophotography.
The high sensitivity makes the GP702000B suitable for photographing nebulae and galaxies.
The camera is equipped with a UV/IR cut filter, so you can also take landscape photos without the color balance suffering.

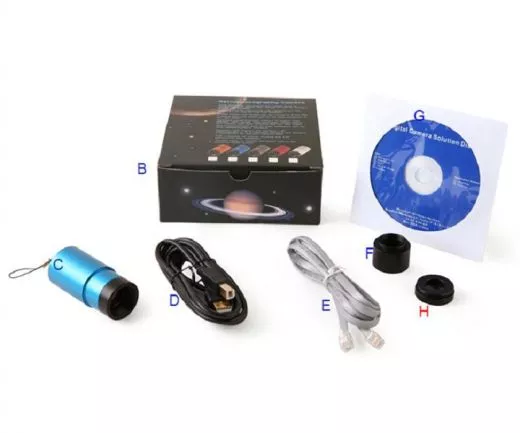

Camera body
USB2.0 cable
ST4 cable
M28.5-C adapter
1.25" extender, length 20 mm
Dust cap
The GP702000B is a very good autoguider and much more. The modern Sony IMX327 color sensor convinces with a high quantum efficiency, which simplifies guide star search and ensures short exposure times for planetary images. Another special feature is the extremely high resolution due to 2.9 µm pixels. This makes this camera very interesting for astrophotography.
The advantages of the GP702000B as an autoguider
The advantages of the GP702000B as an astro camera
The camera is equipped with a UV/IR cut filter, so you can also take landscape photos without the color balance suffering.
Drivers and Software
ToupTek provides drivers and software for this camera, you can download them here.| Sensor: | 1/2.8" CMOS IMX327 |
| Resolution: | 2.1 megapixels, 1920x1080 |
| Pixel size: | 2.9 µm |
| Sensor size: | 5.6 mm x 3.1 mm |
| Exposure time: | 105 µs - 1000 s |
| Frame rate at full resolution: | 18 fps |
| ROI: | Supported |
| ST4 autoguider port: | Yes |
| Focus distance to sensor: | 13 mm |
| Shutter type: | Rolling shutter |
| Entry window: | UV/IR cut filter |
| Operating system compatibility: | Mac, Windows, Linux |
| Interface: | USB 2.0 |
| Bit rate: | 12 bit output (12 bit ADC) |
| Telescope connector: | 1.25" / M28.5x0.6 |
| Operating temperature: | -10 °C - +50 °C |
| Relative humidity range use: | 30 % - 80 % |
| Storage temperature: | -20 °C - +60 °C |
| Relative humidity range storage: | 10 % - 60 %. |

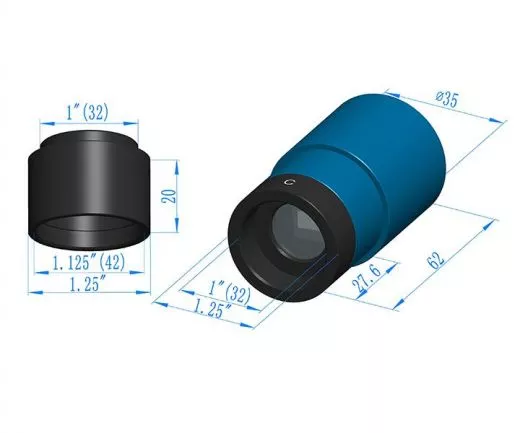

| Size: | D=35 mm x 62 mm |
| Weight: | 70 g |
Price:
Our previous price 249,00 EUR
Now only 209,00 EUR
you save 16 % /40,00 EUR
19 % VAT incl. excl. Shipping costs
