Product no.: TS664CMINI
TS-Optics ToupTek G3M664C Color Planetary Camera and Autoguider - Chip D=9.01 mm
The Sony IMX664C color sensor offers a high resolution, the camera is very good for moon, sun and planets and of course ideal as a powerful autoguider for astrophotography.
Sony 1/1.8" CMOS monochrome sensor IMX664C with 4.1 megapixel resolution
Sensor size 7.84 x 4.45 mm - diagonal 9.01 mm
High resolution due to 2.9 µm pixels

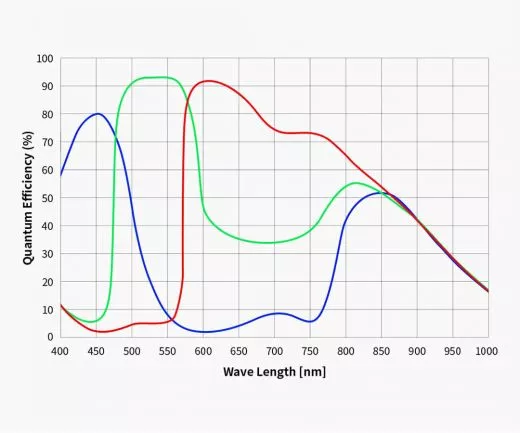

Very high sensitivity due to >91 % QE
Practical 1.25" body, you can insert the camera into the telescope or off-axis guider like an eyepiece
At only 70 grams, the camera weighs no more than a 1.25" eyepiece
91 frames per second, therefore very good to use for EAA

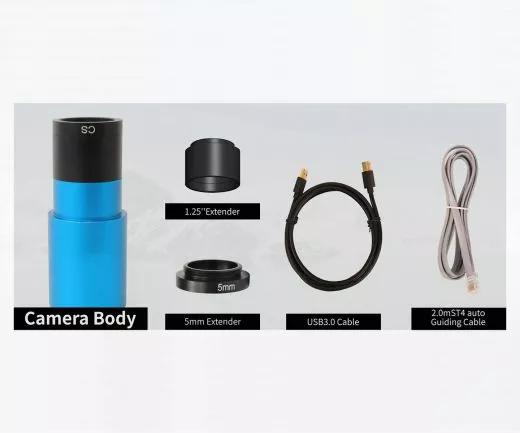

Extensive scope of delivery, such as USB and ST4 cable, C-mount adapter, 1.25" extension tube
ToupTek TS664CMINI Mini Color Astro Camera and Autoguider
The camera is equipped with a large 1/1.8" sensor. The new SONY STARVIS and Exmor-R technology produces very low-noise images with high sensitivity. Added to this is a very high resolution thanks to particularly small pixels. The result is a very versatile camera that delivers excellent results for a wide range of requirements. Among other things, the camera is well suited for:
Moon and planetary photography, due to the small pixels you only need a moderate or often no Barlow lens at all
Solar photography with a suitable filter - approx. 450 mm focal length, for example with the TSAPO72F6 or TSCFAPO70, show the sun (or moon) completely
EAA (Electronically Assisted Astronomy) of these objects by a suitable frame rate
Autoguiding - a guide star is always found
Deep-sky photography, the high sensitivity of the sensor allows nebulae and galaxies to be photographed with short exposure times
The practical 1.25" body:

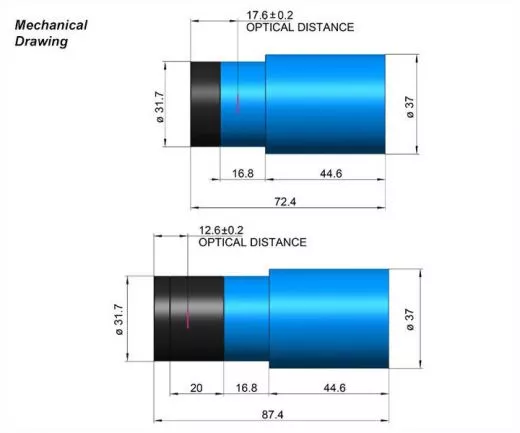

The camera is supplied in a compact 1.25" housing. This makes it easy to connect to the telescope. The camera is inserted into the focuser like an eyepiece and focused. You can start astrophotography immediately. In addition, the housing is equipped with a female C-mount thread on the telescope side. This allows you to screw the camera to the telescope or a camera lens.
Drivers and software
The manufacturer ToupTek offers current drivers and software on its website. Here are the links:
Drivers
Software
| Sensor: |
Sony IMX664C color sensor |
| Resolution: |
4.1 megapixels, 2688*1520 pixels |
| Pixel size: |
2.9 µm |
| Sensor size: |
7.84 x 4.45 mm - diagonal 9.01 mm |
| QE: |
>91 % |
| Exposure time: |
244 µs - 1000 s |
| Full-well capacity: |
38 ke- |
| Readout noise: |
6.2 to 0.69 e- |
| Frame rate: |
91 frames per second at full resolution |
| ST4 guider port: |
yes |
| Protection window: |
IR cut filter |
| Connection: |
USB3.0 |
| Bit resolution: |
12 bit ADC |
| Telescope connection: |
1.25?, M28.5x0.6 and C-mount |
| Size: |
35 x 62 mm |
| Weight: |
70 grams |
Price:
Our previous price 349,00 EUR
Now only 319,00 EUR
you save 9 % /30,00 EUR
19 % VAT incl. excl. Shipping costs
