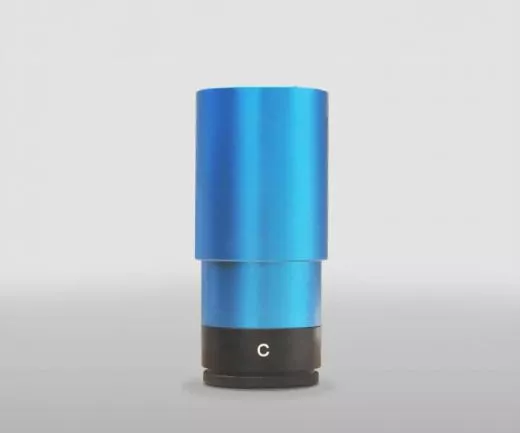

TS-Optics ToupTek GPCMOS02000KPA Color Camera and Autoguider - Chip D=6.46 mm
Product no.: TS290USB2C
TS-Optics ToupTek GPCMOS02000KPA Color Camera and Autoguider - Chip D=6.46 mm
A very sensitive autoguider for astrophotography from ToupTek, with high resolution IMX290 color sensor and 1.25" body

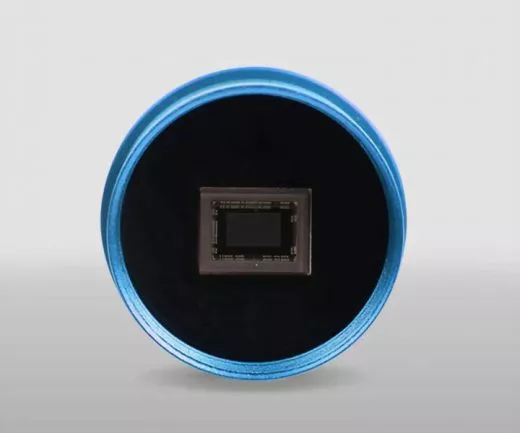

Color CMOS sensor IMX290 from Sony with a QE of over 81% for very high sensitivity - always find a guide star
Pixel size 2.9 µm - allowing you to guide large telescopes with small guiding scopes and to use finder guiding
Sensor size 5.6 x 3.1 mm
Practical 1.25" body - you can insert the autoguider / camera like an eyepiece into the guiding scope, finder or off axis guider.
A true lightweight with only 70 grams and not larger than a 1.25" eyepiece
Practical scope of delivery: USB cable, ST4 autoguiding cable and 1.25" barrel extension
The camera can also be used as a high-grade lunar and planetary camera. Due to the high sensitive sensor even images of deep sky objects are possible.
C thread for the connection of lenses for industrial cameras, extension for CS lensesThe GPCMOS02000KMA is the ultimate autoguider and much more. The modern Sony IMX462 monochrome sensor convinces with an outstanding QE of over 80%. Only a few sensors achieve this sensitivity. Another special feature is the extremely high resolution due to 2.9 µm pixels. This makes this camera very interesting for astrophotography.
The advantages of the GPCMOS02000KPA as an autoguiderYou always find a guide star, even with an off-axis guider - guaranteed!
With the high resolution, you can easily guide telescopes of up to 11" aperture with a 50 mm finder - guiding with the finder becomes possible.
The practical 1.25" housing makes adaption easy. Push the camera into the 1.25" receptacle, focus and get started with guiding.
Short working distance from the front surface to the sensor - you can reach focus even with short maximum distances.
With only 70 grams weight, the focuser is almost not loaded.
Of course, ST4 cable and ST4 port are supplied. Connect the camera directly to the autoguiding port of the mount.
The advantages of the GPCMOS02000KPA as an astro cameraHighly sensitive sensor combined with high resolution for ultimate lunar and planetary photographs.
Camera fits any 1.25" focuser. Clamp the camera like an eyepiece, focus and start astrophotography.
The high sensitivity makes the GPM462M suitable for photographing nebulae and galaxies.
The camera is equipped with a UV/IR blocking filter.

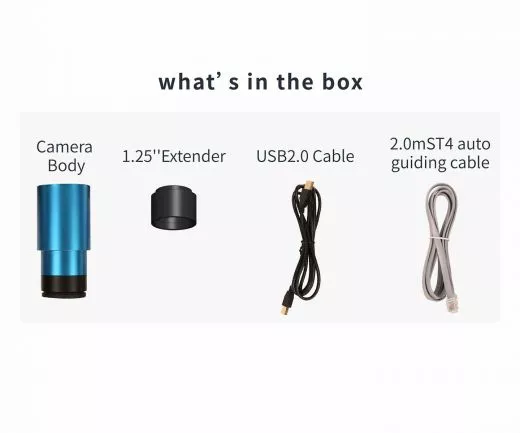

Camera body
Dust cap

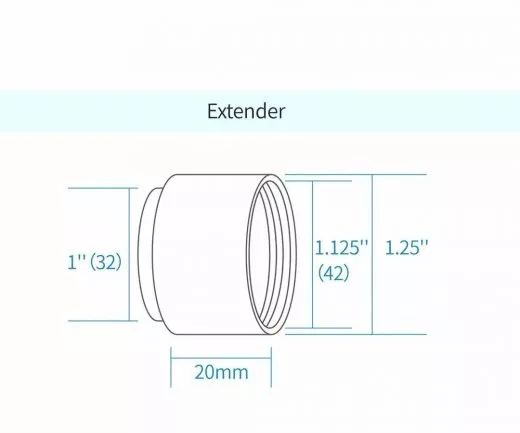

C-mount - M28.5x0.6 thread adapter, length 20 mm (1.25" barrel extension)
USB2.0 cable Type B
ST4 cable (2.0 m)
The advantages of the GPCMOS02000KPA as an autoguider
The advantages of the GPCMOS02000KPA as an astro camera
| Sensor: | 1/2.8" CMOS IMX290 |
| Resolution: | 2.1 megapixels, 1920x1080 |
| Pixel size: | 2.9 µm |
| Sensor size: | 5.57 mm x 3.13 mm (diagonal 6.39 mm) |
| QE (Maximum): | 81% |
| Readout noise: | 0.53 e- to 0.84 e- |
| Exposure time: | 0.105 ms - 1000 s |
| Frame rate at full resolution: | 18 fps |
| ROI: | Supported |
| ST4 autoguider port: | Yes |
| Back focus distance: | 8.5 mm only body, 17.5 mm with C mount adapter, 12.5 mm with CS mount adapter |
| Shutter type: | Rolling shutter |
| Entry window: | UV/IR blocking filter |
| Operating system compatibility: | Mac, Windows, Linux |
| Interface: | USB 2.0 |
| Bit rate: | 12 bit output (12 bit ADC) |
| Telescope connection: | 1.25", M28.5x0.6 and C-mount |

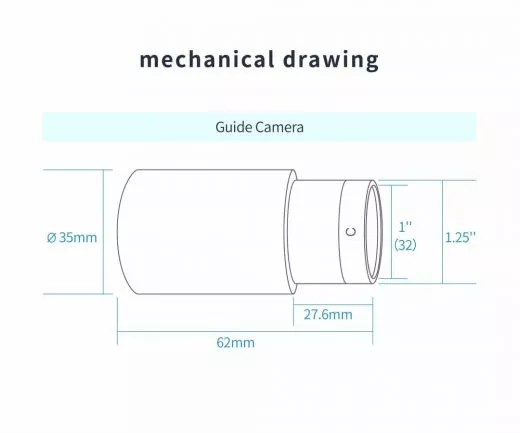

| Size: | D=35 mm x 62 mm (D=35 mm x 82 mm with 1.25" barrel extender) |
| Weight: | 70 g |
Price:
Our previous price 219,00 EUR
Now only 169,00 EUR
you save 23 % /50,00 EUR
19 % VAT incl. excl. Shipping costs
