TS-Optics ToupTek GPM174M monochrome planetary camera and autoguider, sensor D=13.3 mm
Product no.: GPM174M
TS-Optics ToupTek GPM174M monochrome planetary camera and autoguider, sensor D=13.3 mm
Autoguider and planetary camera with large Sony IMX249 monochrome sensor - the astro camera is also very well suited for solar photography.

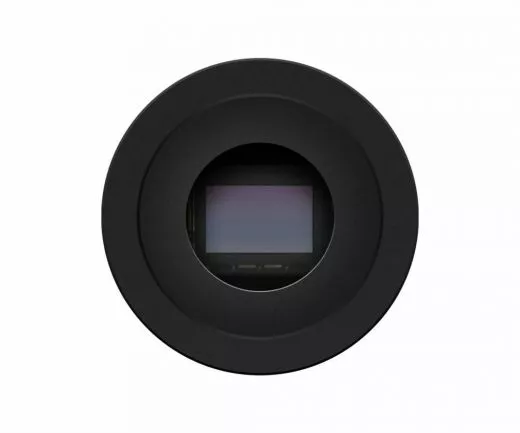

Sony IMX249 monochrome sensor with 13.3 mm diagonal (11.34 mm x 7.13 mm)
5.86 µm pixel size - well suited for all telescopes
1920x1200 pixels - more field of view than FullHD
Good sensitivity into the infrared
ARF clear glass filter protects the sensor from dust and also lets IR light pass
Includes ST4-level autoguiding interface
Also ideal for solar photography (no banding)
Practical 1.25" housing - you can insert the camera into the guide scope, finder or off-axis guider like an eyepiece.
Extensive scope of delivery: USB cable, ST4 autoguiding cable, C-CS mount adapter and 1.25" extension tube
Connection with C-thread for connecting lenses for industrial cameras, extension for CS lenses
The camera is equipped with a large 1/1.2" sensor. The SONY Pregius and Exmor technology produces very low-noise images with high sensitivity. The result is a very versatile camera that delivers excellent results for a wide range of requirements. Among other things, the camera is well suited for:Lunar and planetary photography - locating without Barlow lens, imaging with Barlow lens
Solar photography with a suitable filter - approx. 700 mm focal length show the sun (or moon) completely
Autoguiding - a guide star is always found
Deep-sky photography - the high sensitivity of the sensor allows nebulae and galaxies to be photographed with short exposure times

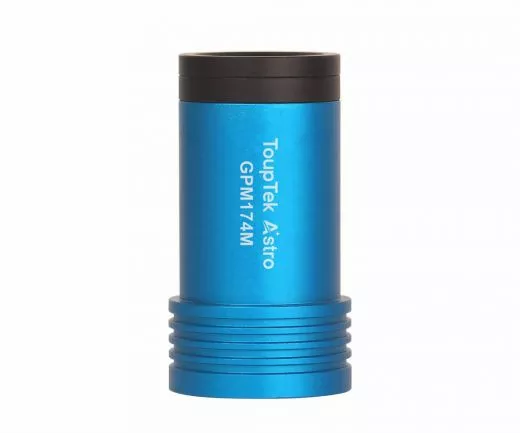

The practical 1.25" body:
The camera is supplied in a compact 1.25" housing. This makes it easy to connect to the telescope. The camera is inserted into the focuser like an eyepiece and focused. You can start astrophotography immediately. In addition, the housing is equipped with a female C-mount thread on the telescope side. This allows you to screw the camera to the telescope or a camera lens.
Drivers and online user manuals
The manufacturer ToupTek offers current drivers and a user manual on its website. Here are the links:
Manual
Drivers, Software
Safety:
The camera is equipped with a large 1/1.2" sensor. The SONY Pregius and Exmor technology produces very low-noise images with high sensitivity. The result is a very versatile camera that delivers excellent results for a wide range of requirements. Among other things, the camera is well suited for:
The practical 1.25" body:
The camera is supplied in a compact 1.25" housing. This makes it easy to connect to the telescope. The camera is inserted into the focuser like an eyepiece and focused. You can start astrophotography immediately. In addition, the housing is equipped with a female C-mount thread on the telescope side. This allows you to screw the camera to the telescope or a camera lens.
Drivers and online user manuals
The manufacturer ToupTek offers current drivers and a user manual on its website. Here are the links:
Manual
Drivers, Software
| Sensor: | Sony IMX249 monochrome sensor |
| Resolution: | 2.3 megapixel, 1920x1200 |
| Pixel size: | 5.86 µm |
| Sensor size: | 11.3 x 7.03 mm - diagonal 13.31 mm |

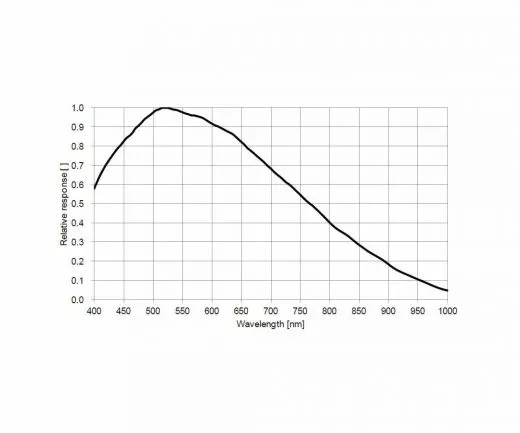

| Spectral range: | 380-1100 nm |
| QE: | 89% peak |
| Read noise: | 6.48 to 3.96 e- |
| Full well: | 33.4 ke- |
| Exposure time: | 0.42 µs - 1000 s |
| Frame rate at full resolution: | 16.2 fps @ 8 bit, 8.5 fps @12 bit |
| ST4 guider port: | yes |
| Protection window: | AR coated window |

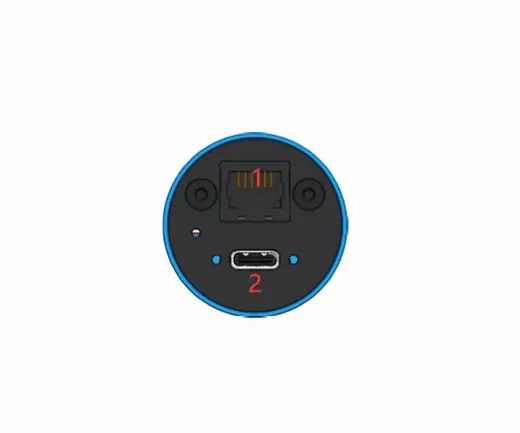

| Connection: | USB2.0, Type C |
| Bit resolution: | 12 bit ADC |

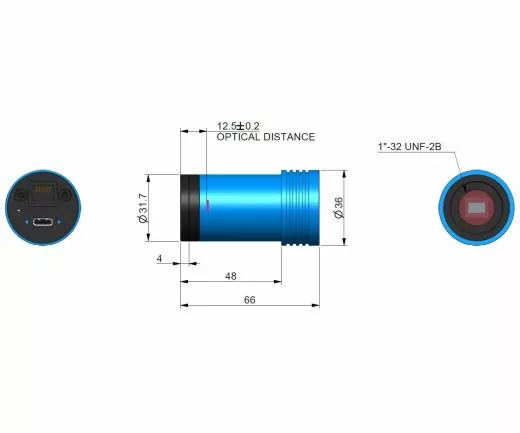

| Telescope connection: | 1.25", M28.5x0.6 and C-mount |
| Back focus distance: | 8.5 mm without adapter, 12.5 mm with CS adapter, 17.5 mm with C adaptation |
| Size: | D=37 mm, L=66 mm (with CS connection) |
| Weight: | 70 grams |

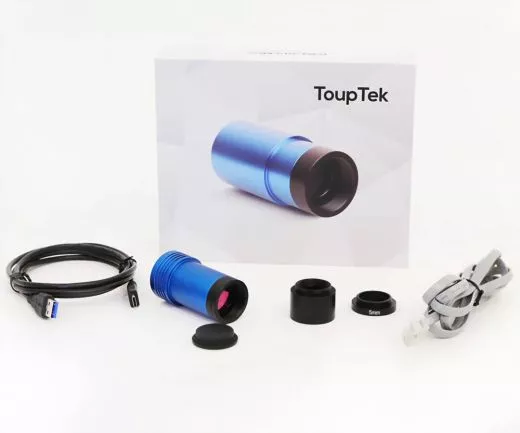

- Gift box L:15 cm W:15 cm H:10 cm (0.8~1.0 kg)
- High-speed USB3.0 A male to C male connectors cable, length 2.0 m
- GPM series camera with CS-mount (inner) and cover
- 1.25 inch nosepiece
- C-mount extender ring (length 5 mm)
- ST4 guiding cable, length 2.0 m
- High-speed USB3.0 A male to C male connectors cable, length 2.0 m
- GPM series camera with CS-mount (inner) and cover
- 1.25 inch nosepiece
- C-mount extender ring (length 5 mm)
- ST4 guiding cable, length 2.0 m
