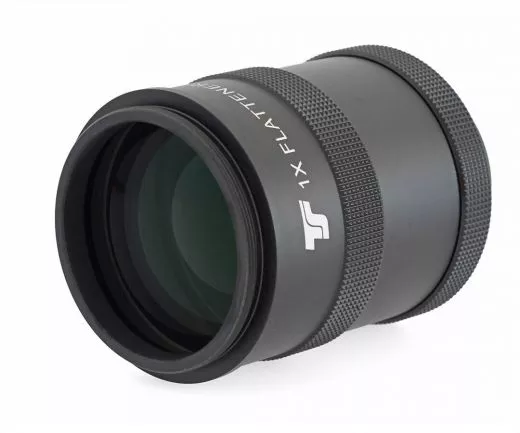

TS 1.0x image field corrector for the 102 mm f/7 SD Apo

The SD apochromats from Teleskop-Service offer an image without chromatic aberration through the use of two special glasses in the 2-element objective. Now we offer a corrector for astrophotography, which was specially designed for this objective and allows very good photographic results. The corrector does not change the focal length or the focal ratio. It offers full illumination and correction up to full frame format.

Connecting the corrector to the telescope:
The corrector is screwed directly to the focuser via the M63x1 thread. This ensures optimum hold and the best possible illumination. Even with heavy cameras, there is no risk of tilting.

Connecting the camera to the corrector:
The corrector offers many possibilities for camera adaptation, as it has several intermediate threads that also allow individual adaptation.

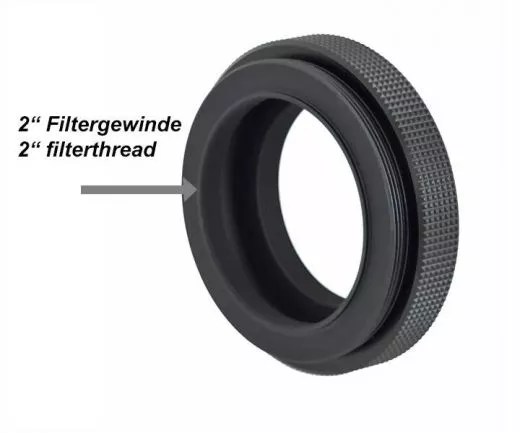

The standard is 55 mm from the M48x0.75 external thread, making it easy to connect almost all cameras. Suitable T-rings are linked. If you unscrew the camera adapter, you will find an internal thread for 2" filters.

There is an M63x1 internal thread directly on the corrector. Starting from the first internal thread, the corrector offers a comfortable working distance of 89.5 mm to the camera sensor.

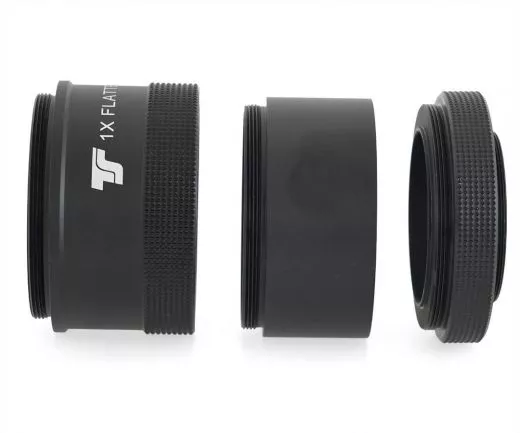

Part of the corrector is an M63x1 extension tube with a length of 23 mm. From the second M63x1 internal thread, you therefore have a working distance of 66.5 mm to the camera sensor.

Optical system:	Flattener - image field corrector for astrophotography
Focal length change:	no change of the focal length
Elements:	Two air-spaced elements
Connection telescope side:	M63x1 male thread
Connections on camera side:	2x female M63x1 thread and 1x male M48x0.75 thread
Working distance from the M48x0.75 male thread:	55 mm to the sensor
Working distances from the M63x1 internal threads:	89.5 mm and 66.5 mm to the sensor
Length of the corrector without the external threads:	73.5 mm
Diameter of the corrector:	70 mm

TS corrector

Dust caps on telescope and camera side
