Product no.: ASI4400MC-P

ZW Optical ASI4400MC Pro - USB3.0 Color Astro Camera, Sensor D=43.3 mm

Cooled USB 3.0 full-frame size color astro camera with powerful, back-illuminated 36 x 24 mm CMOS sensor with 14 bit for astrophotography


Full-frame color sensor Sony IMX366 - back-illuminated

Sensor size: 36 mm x 24 mm, diagonal 43.3 mm

Resolution: 8192x5460 (44 MPixels)

4.4 µm pixels

Powerful Peltier cooling

14 bit ADC - high dynamic range

High full well

No amplifier glow due to Zero Ampglow System

Anti-dew heater already installed

Telescope side connection: M54x0.75 female thread

Working distance only 17.5 mm from the internal thread

Built-in tilter

ASI4400MC Pro uses Sony´s latest back-illuminated IMX366 full-frame format 14-bit ADC sensor. It is a 44 MP camera with a pixel size of 4.4 µm that can accommodate a super large well depth of 74.6 ke.

With the low readout noise of 1.1 e and amazing zero amp-glow, the ASI4400MC Pro is born to be another great innovation of ZWO in the field of full-frame cooled OSC astro cameras.

The "single shot" colour camera offers more comfort than monochrome cameras. Not everyone wants to go through the laborious L-RGB process for beautiful coloured nebula or planet images. The color cameras offer you the possibility to get beautiful pictures without changing filters. In direct comparison to the DSLR camera, the ASI camera convinces with a much higher light sensitivity, a smoother image and significantly more depth. Stars don´t burn out that easy.

Further advantages and product features of the ASI 4400MC Pro color camera:

USB 3.0 for fast download - can also be used with USB 2.0

DDR3 memory buffer for stable data transfer with USB2.0 - minimizes frame dropping

No amplifier glow!

Powerful Peltier cooling up to 35 °C under ambient conditions

One of Sony´s most light-sensitive CMOS sensors

Higher full well by 4.4 µm pixels - ideal for medium-speed sharp telescopes like apochromats, Newtonian telescopes, ...

Distance M54x0,75 connection thread (female thread) to camera sensor: 17.5 mm

High sensitivity - QE over 80% - ideal astronomy camera for low-light objects

14-bit ADC ... you can achieve a depth almost like CCD cameras, but with a much higher sensitivity.

Built-in tilter to prevent the sensor from being angled toward the image plane and the resulting blurring

Application areas of the camera:

Deep-sky images (nebulae and galaxies): Due to the high sensitivity, nebulae and galaxies are imaged after only a few seconds. The camera can be cooled up to 35 °C below ambient temperature. This further reduces the already low noise. By raising the GAIN (comparable to the ISO setting for digital SLR cameras), you can reduce exposure times to less than 30 seconds. Effects caused by air turbulence or inaccuracies in the tracking are thus eliminated.

Moon and planetary images: Extremely short exposure times due to high sensitivity freeze the air turbulence. Due to the large sensor, the entire disc of the moon can be imaged even with a longer focal length telescope. Video astronomy is also possible.



Important aspects

Full-frame OSC camera
The ASI4400MC Pro uses full-frame format, the sensor length and width are 36 mm * 24 mm and the diagonal is 43.3 mm.

With 44 megapixels (8192x5460 pixel array) and 4.4 µm pixels, it delivers incredible resolution and light sensitivity in every shot. The full-frame format lets you capture the entire field your optics can deliver - no cropping, no lost edges - perfect for wide-field targets and large deep-sky objects. Each pixel supports a full-well capacity of 74,600 electrons, providing exceptional dynamic range. Bright stars retain their natural color and detail, while faint nebula structures and galaxy arms remain beautifully visible. The result is cleaner, more balanced images with outstanding tonal depth across the frame.

The OSC (One Shot Camera) design is also very well suited for beginners in astrophotography, as it eliminates the need for time-consuming combination of RGB or LRGB images.

QE value
One of the outstanding features of the ASI 4400MC Pro is its sensational light sensitivity. The QE of 80% by the BACK ILLUMINATION technology and the non-existent amplifier glow make the camera very suitable for all astronomical applications, but especially for deep sky astrophotography.

IMX366 Backlit Sensor
The back-illuminated CMOS sensor improves sensitivity and noise reduction - the key factors to enhancing image quality, while radically realigning their fundamental pixel structure from front-illumination to back-illumination. It has retained the advantages of CMOS image sensors such as low power consumption and high-speed operation.

With a conventional front-illumination structure, the metal wiring and transistors on the surface of the silicon substrate that form the sensor´s light-sensitive area (photo-diode) impede photon gathering carried out by the on-chip lens. A back-illuminated structure minimizes the degradation of sensitivity to optical angle response, while also increasing the amount of light that enters each pixel due to the lack of obstacles such as metal wiring and transistors that have been moved to the reverse of the silicon substrate.

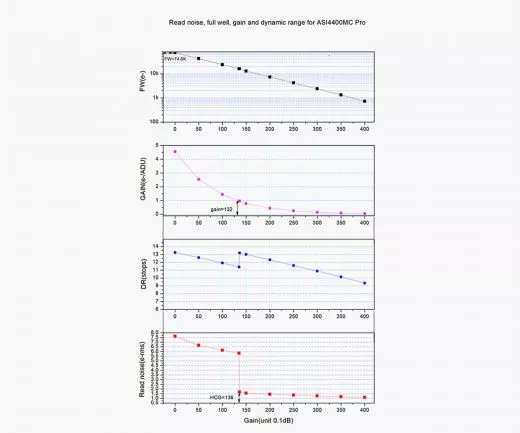

Large well depth capacity, low read-out noise and high dynamic range
Despite its moderately large 4.4 µm pixels, the ASI4400MC Pro still has a full well capacity of 74.6 ke, giving it a very high dynamic range of over 13 f-stops. This reduces the likelihood of overexposure and achieves richer color gradation.

Zero amp glow
Traditional CMOS sensors produce a weak infrared light source during operation quite often seen in the corner of uncalibrated images as the tell tale signs of ´amp glow´. As the ASI4400MC Pro uses zero amp glow circuitry, you won´t have to worry about amp glow even when using high gain, long exposure imaging.

Two-stage TEC cooling: ultra-low dark current
ASI4400MC Pro uses two stage TEC cooling that can lower the CMOS sensor temperature to 30 to 35 °C below ambient, which can greatly reduce dark current generation and sensor noise even with extended exposure times.

The unique dark current suppression technology can even further reduce dark current noise. When it is cooled to -20 °C, the current noise can be as low as 0.001995 e/s/pix, which is completely negligible!

Note: ASI4400 Pro camera requires 1 A current from the USB, if your PC can not provide enough current, please use an external 12 V power supply to power the camera.

Anti-dew heater integrated
The ASI4400MC Pro comes with the polyimide heater that can avoid any dew problems. The anti-dew heater, which fits completely onto the protective window, heats it up slightly to prevent condensation problems.

The power of the anti-dew heater is approx. 5 W. It can be turned off in the software to save power.

USB3.0 & 512 MB DDR3 memory
The ASI4400MC Pro is equipped with a USB 3.0 transmission interface and a built-in 512 MB (4 Gbit) DDR3 cache to ensure stable and secure data transmission. Under long exposure, it effectively avoids frame dropping and greatly reduces the glow effect caused by slow reading speed.

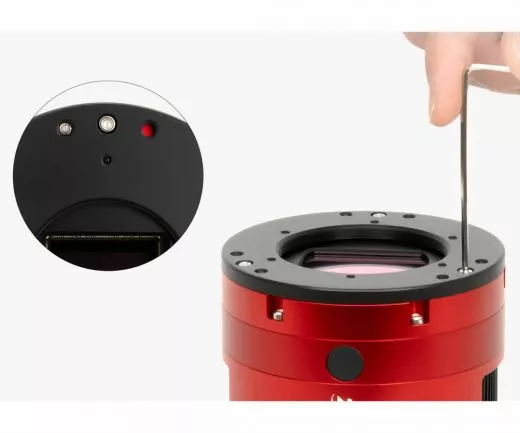

Sensor tilt adjustment
The ASI4400MC Pro includes three sets of sensor tilt adjustment screws. Each set has a push and a pull screw that let you fine-tune the sensor´s alignment with your telescope´s optical axis. This adjustment helps correct any slight tilt that can cause stars to appear elongated or out of focus toward the edges of the frame, ensuring sharp, even focus across the entire image.


Further notes and helpful information

Important: external power supply required!
This camera requires 1 amp even in uncooled operation, which is a problem for USB sockets on computers, because they are only rated for 900 mA (0.9 A).

Stable operation of the camera is therefore only possible with an external 12 V power supply.



Sensor type:	Sony IMX366 color sensor
Sensor size:	36 mm x 24 mm, diagonal 43.3 mm
Pixel size:	4.4 µm
Resolution:	8192x5460 (44 MPixels)

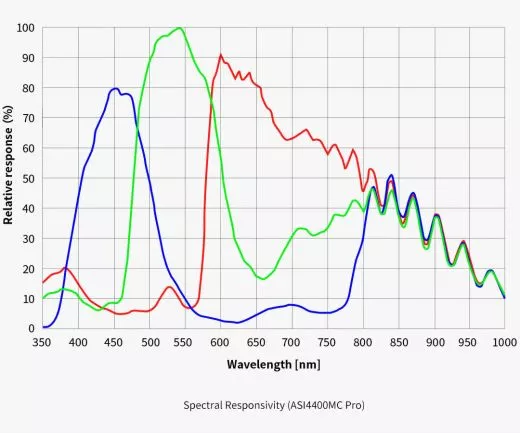

Spectral range:	~400 to ~700 nm
Shutter:	Rolling shutter
ADC:	14 bit
Cooling:	Powerful Peltier cooling 30 to 35 °C below ambient
Full well:	74.6 ke-
Readout noise:	1,1 e - 7,2 e
Sensitivity:	Peak 80% QE
Frame rate:	8.3 fps at full resolution
Zero amp glow design:	Yes
Window type:	UV/IR cut
Telescope connection:	M54x0.75 female thread
Working distance from female thread to sensor:	17.5 mm
Built-in tilter:	Yes
Computer connection:	USB3.0
Dew heater:	Yes (up to 5 W)
Power consumption:	12 V, 3 A
Power connector:	5.5x2.1 mm coaxial power conector, center pole positive
Diameter:	90 mm
Weight:	0.7 kg

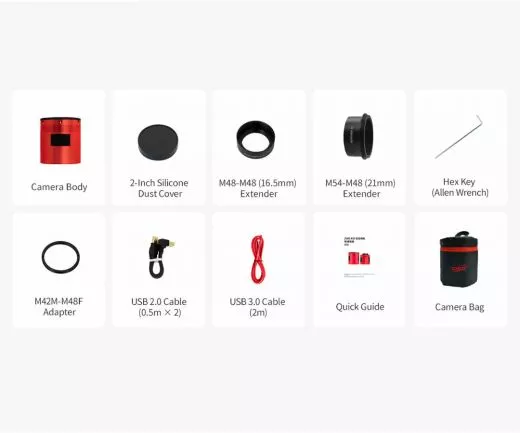

Camera
- 2" Dust Cover
- M48 Extender (16.5 mm)
- M54M-M48F Adapter (21 mm)
- M48F-T2M Adapter (0 mm)
- Hexagon Key
- 2x USB 2.0 cable (0.5 m)
- USB 3.0 cable (2 m)
- ASI Quick Guide
- Camera Bag



Price:

Our previous price 5.290,00 EUR
Now only 3.690,00 EUR
you save 30 % /1.600,00 EUR

19 % VAT incl. excl. Shipping costs
