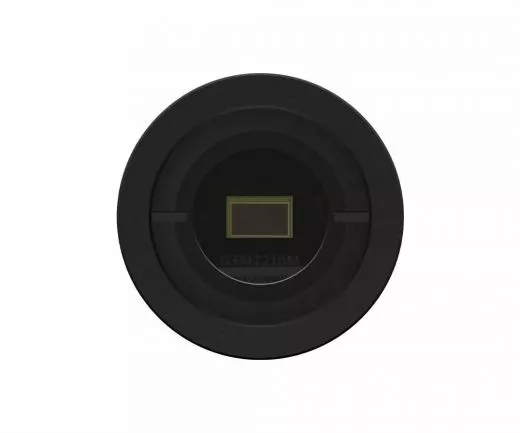

TS ToupTek Monochrome Planetary Camera with SC2210 sensor, D=8.8 mm
Product no.: G3M2210M
TS ToupTek Monochrome Planetary Camera with SC2210 sensor, D=8.8 mm
The SmartSens Technology SC2210 monochrome sensor offers high sensitivity and low noise, making the camera ideal for observing the moon, sun, and planets, and of course as a powerful autoguider for astrophotography.
SmartSens Technology 1/1.8" CMOS monochrome sensor SC2210 Mono with 2.1 megapixel resolution
Sensor size 7.68 x 4.32 mm - diagonal 8.81 mm
Good resolution thanks to 4 µm pixels
Very high sensitivity thanks to >92% QE, low noise
USB 3.0 interface
Practical 1.25" body, you can insert the camera into the telescope or off-axis guider like an eyepiece
At only 70 grams, the camera weighs no more than a 1.25" eyepiece
150 frames per second, making it ideal for stacking and EAA

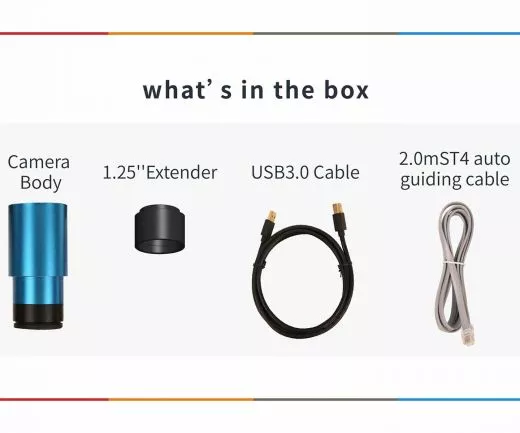

Extensive scope of delivery, including USB and ST4 cables, C-mount adapter, 1.25" extension tube
Moon and planetary photography, where the high frame rate allows for stacking
Solar photography with a suitable filter - approx. 430 mm focal length show the sun (or moon) completely
EAA (Electronically Assisted Astronomy) of these objects by a suitable frame rate
Autoguiding - a guide star is always found
Deep-sky photography, the high sensitivity of the sensor allows nebulae and galaxies to be photographed with short exposure times
The practical 1.25" body:
The camera is supplied in a compact 1.25" housing. This makes it easy to connect to the telescope. The camera is inserted into the focuser like an eyepiece and focused. You can start astrophotography immediately. In addition, the housing is equipped with a female C-mount thread on the telescope side. This allows you to screw the camera to the telescope or a camera lens.
Drivers and software
The manufacturer ToupTek offers current drivers and software on its website. Here are the links:
Drivers
Software
Camera
USB 3.0 cable
ST4 cable (2 m)
1.25" extension (20 mm)
TS ToupTek Monochrome Planetary Camera with SC2210 Mono sensor
The camera is equipped with a large 1/1.8" sensor. This provides very low-noise images with high sensitivity. The result is a very versatile camera that delivers excellent results for a wide range of requirements. Among other things, the camera is well suited for:The practical 1.25" body:
The camera is supplied in a compact 1.25" housing. This makes it easy to connect to the telescope. The camera is inserted into the focuser like an eyepiece and focused. You can start astrophotography immediately. In addition, the housing is equipped with a female C-mount thread on the telescope side. This allows you to screw the camera to the telescope or a camera lens.
Drivers and software
The manufacturer ToupTek offers current drivers and software on its website. Here are the links:
Drivers
Software

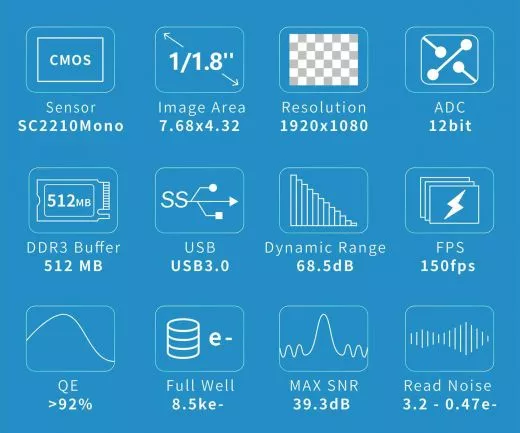

| Sensor: | SmartSens Technology SC2210 monochrome sensor |
| Resolution: | 2.1 megapixels, 1920*1080 pixels |
| Pixel size: | 4.0 µm |
| Sensor size: | 7.68 mm x 4.32 mm - diagonal 8.81 mm |

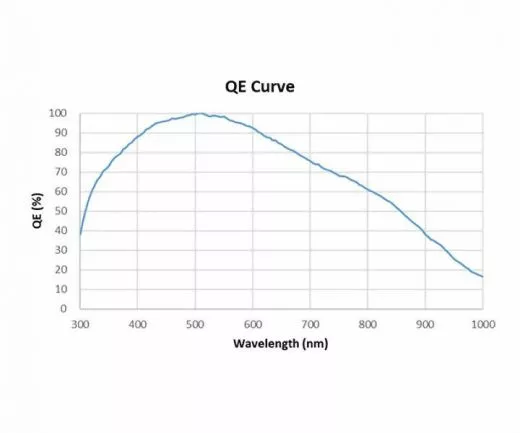

| QE: | >92% |
| Full well capacity: | 8.5 ke- |
| Readout noise: | 3.2 to 0.47 e- |
| Dynamic range: | 68.5 dB |
| Frame rate: | 150 frames per second at full resolution |

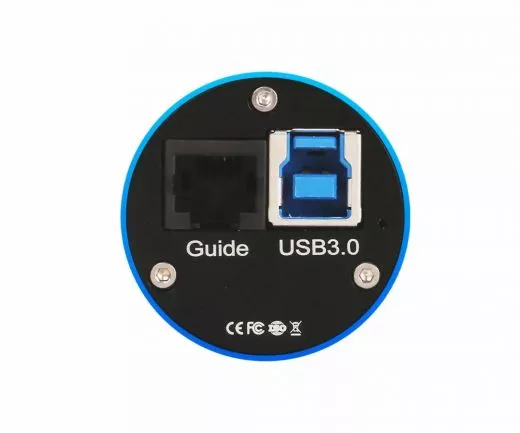

| ST4 guider port: | yes |
| Protective window: | AR clear glass |
| Working distance: | 17.6 mm |
| Connection: | USB3.0 |
| Bit resolution: | 12 bit ADC |
| Telescope connection: | 1.25", M28.5x0.6 and C-mount |

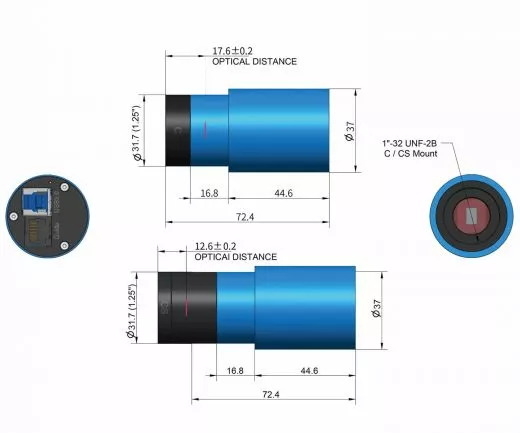

| Size: | 37 x 72.4 mm |
| Weight: | 70 grams |
Price:
289,00 EUR
19 % VAT incl. excl. Shipping costs
