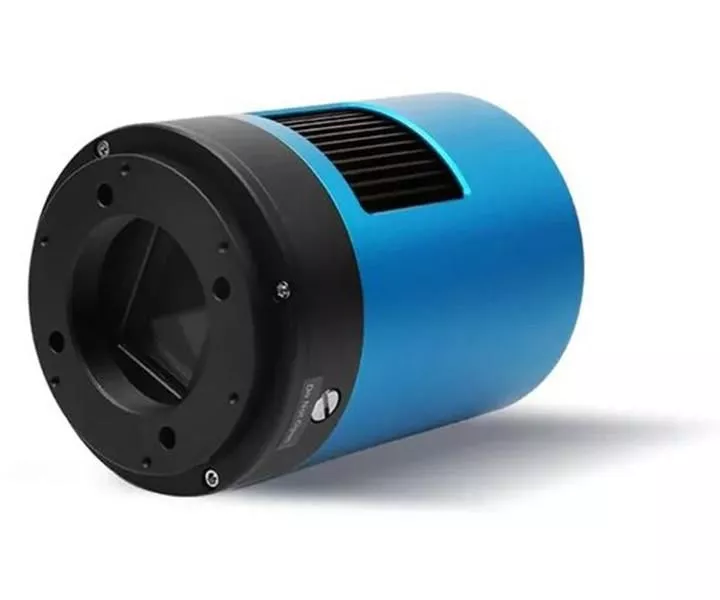

TS-Optics ToupTek Mono Astro Camera 585CP G2 Sony IMX585 Sensor D=12.78 mm
Cooled USB 3.0 mono astro camera with powerful Sony CMOS sensor for astrophotography - Gen. 2 with adapter flange
Powerful two-stage Peltier cooling up to 42 °C below ambient temperature 1/1.2" format Sony mono IMX585 sensor 3840 x 2160 pixels with 2.9 µm size 12 bit ADC - wide dynamic range DDR memory buffer 512 MB - for a more stable data transport No amplifier glow Telescope side connection: M42x0.75 female thread Working distance only 17.5 mm from T2 (M42x0.75) female thread Built-in UV/IR blocking filter as protection glass Binning is supported G2: the cameras come with a detachable T2 connection. The distance from the mounting surface for the flange to the sensor is 8.8 mm.
Another advantage is the sensational light sensitivity. The QE of 80% by the BACK ILLUMINATION technology already allow deep astro images with short exposure times. This makes the camera very well suited for deep sky photography.

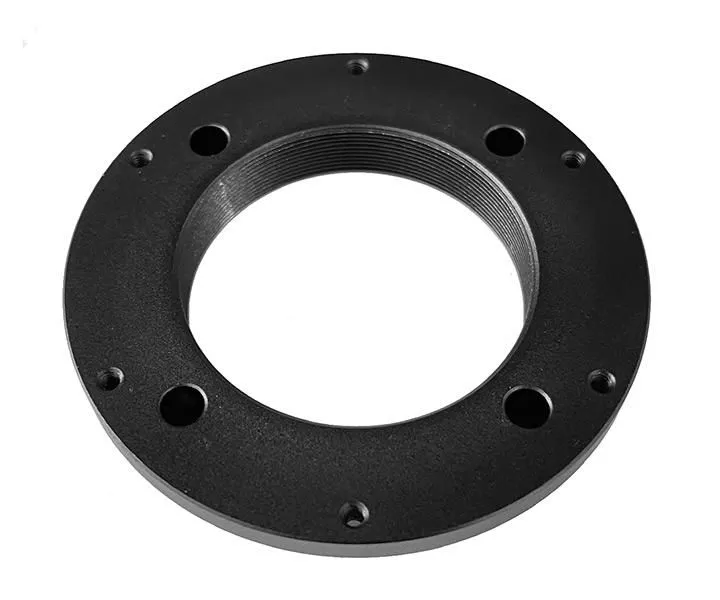

The optically effective path of the adapter is 8.7 mm - the flange focal distance of the camera without the T2 adapter is therefore 8.8 mm. Attachment of the adapter to the camera with 4x M2.5 screws - distance of the internal threads from the center is 26.5 mm Diameter of the adapter is 59 mm The adapter can also be used as a tilting adapter with optional M2.5 grub screws.
The back illumination improves the light acquisition and increases the amount of light at the same time. This makes significantly shorter exposure times possible and leads to an improved quantum efficiency of 80%.
Sony has developed a unique photodiode structure and on-chip lens optimized for backside-exposed structures, this results in higher sensitivity and lower random noise without light by reducing noise, dark current and defective pixels compared to the conventional front-side-illuminated structure.
1. TSFSLM48T2 - filter drawer with T2 connection on the camera side and M48 thread on the telescope side.
2. TSVF220 - 20 mm M48 extension.
Total 55.5 mm flange focal distance - the 0.5 mm compensates well for the glass travel of the filter - spot landing!!!
The new G2 cameras are also mechanically compatible with ZWO filter wheels (not electronically compatible) and the ZWO filter drawer. The filter changers are screwed on directly via the M2.5 threads. The articles are linked in the accessories section.
Connecting the ToupTek filter drawer and the ToupTek off-axis guider to a cooled ToupTek G2 camera is not completely intuitive, which is why ToupTek has produced a suitable instruction video. You can watch the video here and also download it, for example by clicking the right mouse button:
Video in SD quality
Video in HD quality
Camera Dust cap (on camera) Adapter from M48 to T2 with 16.5 mm length (M48 inside - T2 outside) T2 extension with 21 mm length Adapter ring with M48 external and T2 internal thread Power supply unit with mains cable USB 3.0 high-speed cable - length 1.5 meters
EN- Safety instructions
Not suitable for children under 3 years of age.
Packaging not suitable for consumption.
Keep packaging out of reach of children. Risk of suffocation!
Never look at the sun with a telescope or binoculars. Risk of blindness!
Children should only use telescopes and binoculars in the presence of an adult.
Cooled USB 3.0 mono astro camera with powerful Sony CMOS sensor for astrophotography - Gen. 2 with adapter flange
TS 585CP Mono Astro Camera of the latest Generation without Amp Glow
The camera with the powerful Sony IMX585 sensor allows astrophotography on a very high level. This modern sensor can be used for all areas of astrophotography. The 3.7 µm pixels make this camera a high resolution all-rounder with highest sensitivity for short exposure times.Another advantage is the sensational light sensitivity. The QE of 80% by the BACK ILLUMINATION technology already allow deep astro images with short exposure times. This makes the camera very well suited for deep sky photography.
Gen. 2 supplied with removable T2 adapter
To make the camera even more flexible, the T2 connection on the camera is removable. The working distance of 17.5 mm remains unchanged.Back-illumination technology:
Sony´s back-illuminated CMOS imaging sensor improves sensitivity and noise reduction - key factors in improving image quality - by changing the basic pixel structure from front- to back-illuminated. The advantages of CMOS image sensors, such as low power consumption and high operating speed, have been retained.The back illumination improves the light acquisition and increases the amount of light at the same time. This makes significantly shorter exposure times possible and leads to an improved quantum efficiency of 80%.
Sony has developed a unique photodiode structure and on-chip lens optimized for backside-exposed structures, this results in higher sensitivity and lower random noise without light by reducing noise, dark current and defective pixels compared to the conventional front-side-illuminated structure.
No amp glow:
Conventional CMOS sensors produce a faint infrared light source during operation, which can often be seen in the corners of uncalibrated images as a telltale sign of "amp glow". Since the TS585CP uses zero amp glow circuitry, you don´t have to worry about amplifier glow even when using high-gain, long-exposure images.Connection to correctors with M48 thread and 55 mm working distance with filter change
Most coma correctors or field flatteners for refractors have 55 mm working distance and an M48x0.75 thread on the camera side. Here you will find an interesting suggestion for the connection. The camera has a back focus of 17.5 mm from the T2 female thread. The adapters are from the camera to the corrector:1. TSFSLM48T2 - filter drawer with T2 connection on the camera side and M48 thread on the telescope side.
2. TSVF220 - 20 mm M48 extension.
Total 55.5 mm flange focal distance - the 0.5 mm compensates well for the glass travel of the filter - spot landing!!!
The new G2 cameras are also mechanically compatible with ZWO filter wheels (not electronically compatible) and the ZWO filter drawer. The filter changers are screwed on directly via the M2.5 threads. The articles are linked in the accessories section.
Connecting the ToupTek filter drawer and the ToupTek off-axis guider to a cooled ToupTek G2 camera is not completely intuitive, which is why ToupTek has produced a suitable instruction video. You can watch the video here and also download it, for example by clicking the right mouse button:
Video in SD quality
Video in HD quality
The manufacturer of the camera is ToupTek
As one of the largest manufacturers of professional cameras for digital photography, ToupTek brings the necessary knowledge for cameras that just work.| Sensor: | CMOS mono sensor IMX585 |
| Size: | 11.14 mm x 6.26 mm - 12.78 mm diagonal |
| Pixel size: | 2.9 µm |
| Number of pixels: | 3840 x 2160 - 8.3 MP |
| Bit depth: | 8 Bit and 16 Bit @HDR |
| Frames per second: | 45 fps at 12 bit and full resolution, 70 fps at 8 bit and full resolution |
| Cooling: | Peltier cooling up to 42 °C below ambient temperature |
| Power supply: | 12 V, 3 A |
| Power connection: | 5.5/2.1 mm coaxial power connector (2.5 mm DC connector) |

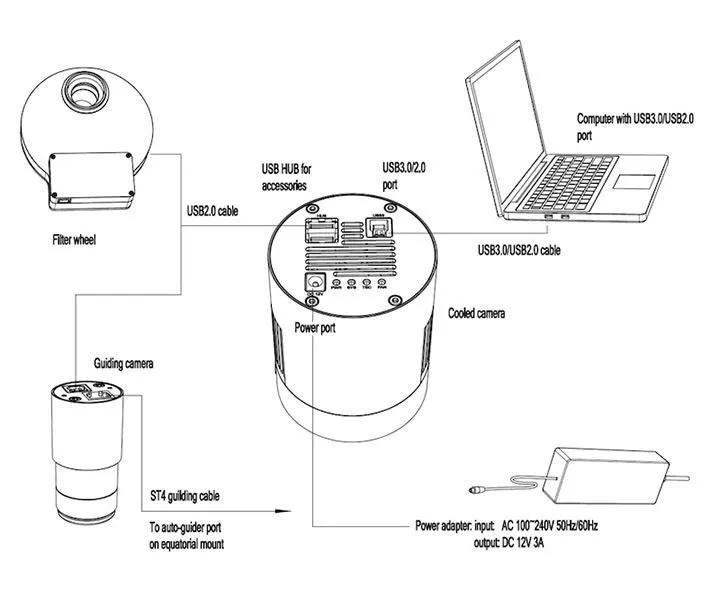

| Interfaces: | USB 3.0 and USB 2.0 |
| Supported operating systems: | Windows from XP |

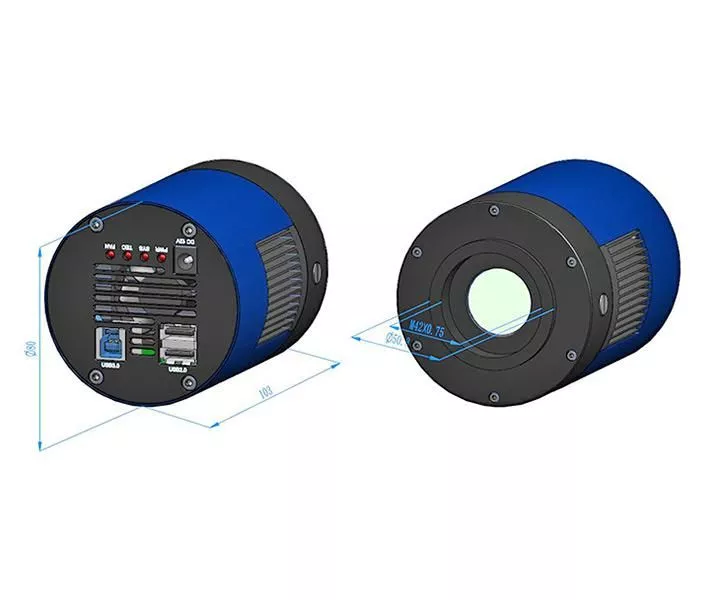

| Body diameter: | 80 mm |
| Body length: | 100 mm |
| Distance from the back to the openings for the fan: | 36 mm |

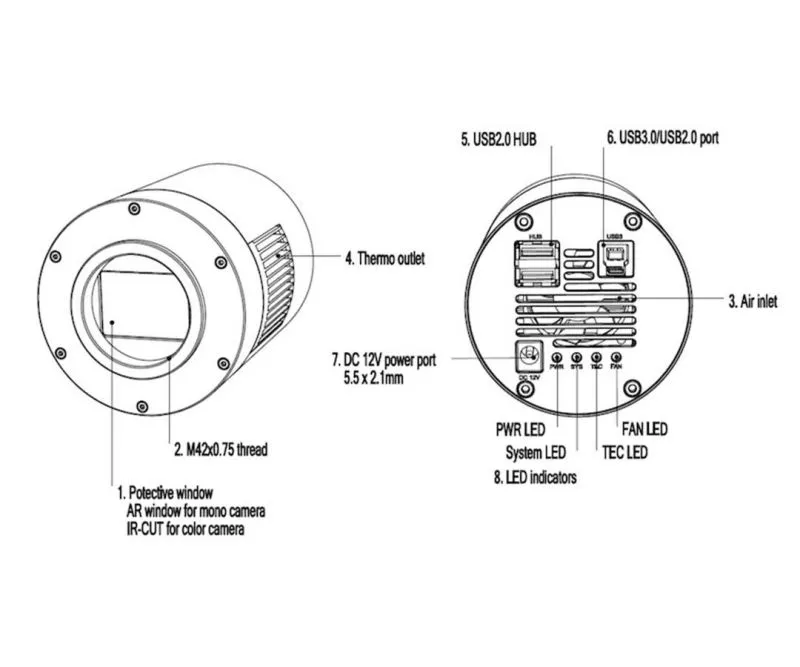

| Connection telescope side: | T2 internal thread (M42x0.75) |
| Back focus: | 17.5 mm (distance sensor to internal thread) |
EN- Safety instructions
Not suitable for children under 3 years of age.
Packaging not suitable for consumption.
Keep packaging out of reach of children. Risk of suffocation!
Never look at the sun with a telescope or binoculars. Risk of blindness!
Children should only use telescopes and binoculars in the presence of an adult.
This Product was added to our catalogue on 23/05/2025.
