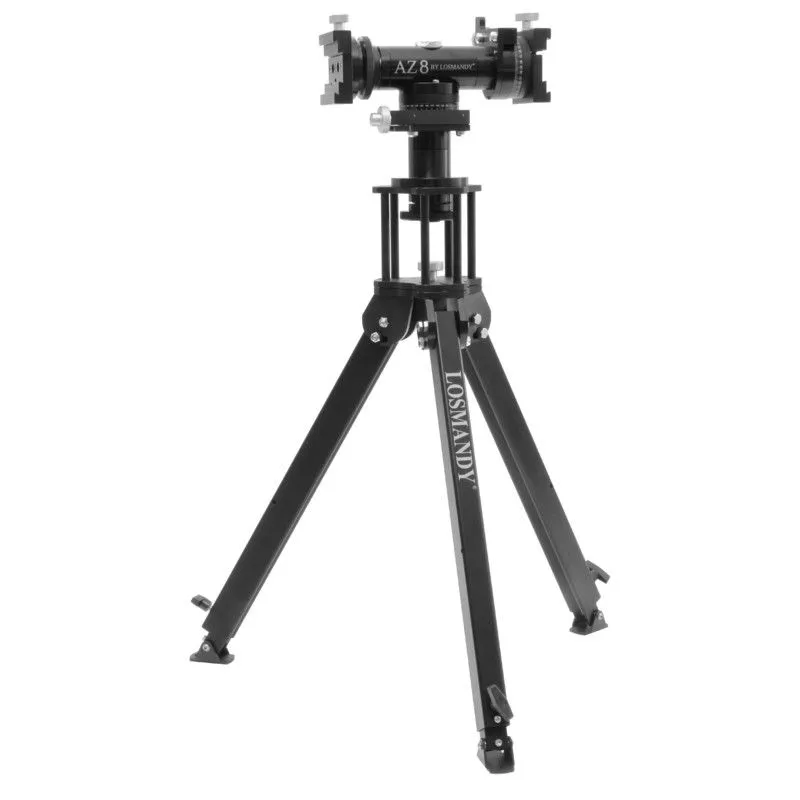

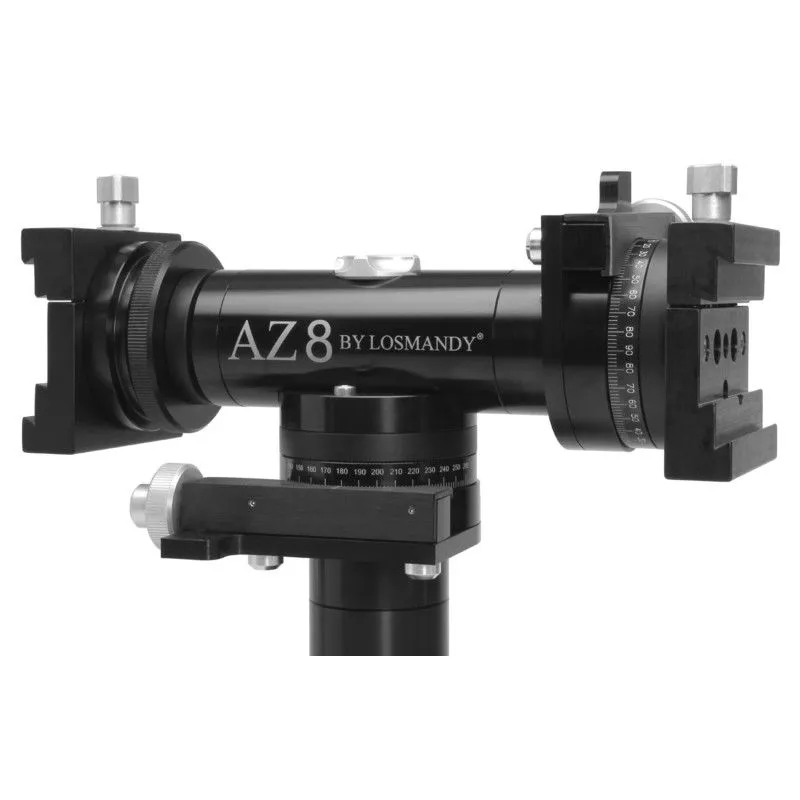

Losmandy mount AZ8 with tripod

Adjust the desired object quickly and intuitively using the variable slip clutch. The fine adjustment and tracking of both axes can then be carried out using a precision mechanical gearbox in Losmandy quality: needle bearings and worm wheel with a 7cm diameter and 180 teeth, a brass worm shaft with ball bearings at both ends.

Other advantages:

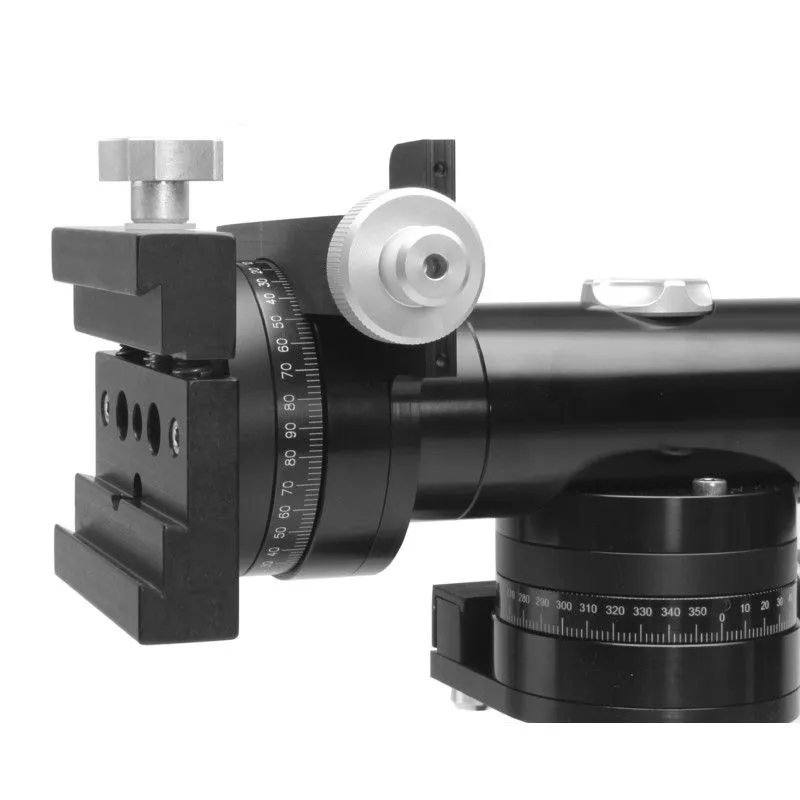

    The alignment can be read precisely from the laser engraved partial circles.
    The two saddle plates accept prism rails according to both Losmandy and Vixen standards.
    An optional half column is available to raise the mount by 15cm.

Excellent for solar observation, for example: With the Losmandy AZ8 you can operate one optic with white light and a second with H-alpha filter in parallel. But also for photography of bright objects: moon, sun, earth observation. Equip one optic with a camera and the second parallel optic with an eyepiece for visual observation.

Technical data
Performance
Load capacity (kg)
16 (per page)
Weight (g)
6000
Material worm shaft
Brass
Worm wheel material
aluminum
Special features
dragon-fly
Yes
Partial circles
Yes
Prism rail connection
Yes
Goto system
no
equipment
tripod
Tripod
tripod
Tripod weight (kg)
5.9
Max. tripod height (cm)
117
Generally
series
AZ8
Total weight (kg)
12
type
Mount
Construction type
