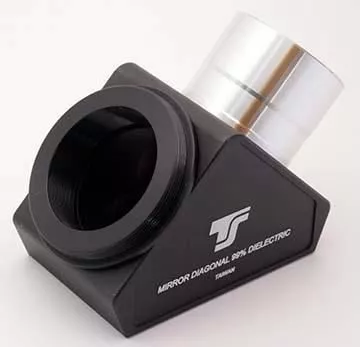

TS-Optics 1.25" and T2 Diagonal Mirror - 99% - 1/12 Lambda

High-quality 1.25" star diagonal for high image quality

♦ full illumination of 1.25"

♦ 99% reflection for a brighter image

♦ 1/12 lambda

♦ metal housing

♦ T2 thread on eyepiece side




1.25" star diagonal - 99% reflectivity - 1/12 lambda - CNC metal housing

An excellent 1.25" star diagonal for a very good image - with ring clamp for a secure hold.

Many star diagonals have a reflectivity of approx. 90° reflection (10% light is lost) and have a plastic housing. This 1.25" star diagonal from TS Optics is a really high-quality alternative with excellent imaging and high manufacturing quality. It offers full 1.25" illumination, so long focal length 1.25" eyepieces can also be used. The telescope-side sleeve has a filter thread.

Another advantage over many other star diagonal is the low-set (9 mm compared to 3 to 3.5 mm) clamping screw. The lower position prevents eyepieces with large diameters from blocking the screw.



Illumination:	full 1.25" illumination
Reflection:	99 %
optical quality:	1/12 lambda
Mirror substrate:	optical glass BK7
Housing:	completely CNC machined from metal
Connection telescope side:	1.25" sleeve with filter thread for 1.25" filter
Connection on eyepiece side:	T2 thread with 1.25" adapter
Effective optical length:	55 mm (without 1.25" adapter)

In the box:
♦ 1.25"/T2 star diagonal with metal housing
♦ 1.25" eyepiece adapter for use with eyepieces
