Omegon Pro APO AP 140/910 Triplet ED FCD-100 Apochromatic Refractor

This telescope is checked, measured and, if necessary, adjusted by us before delivery. The focuser is adjusted.

Examples of our test protocols: Test recordings
How we adjust: About us

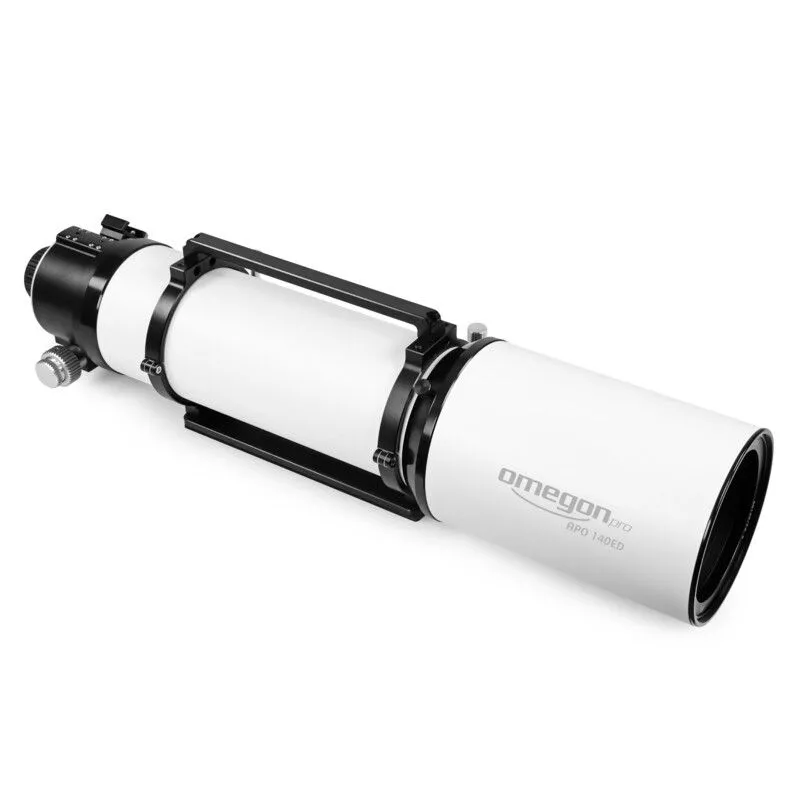

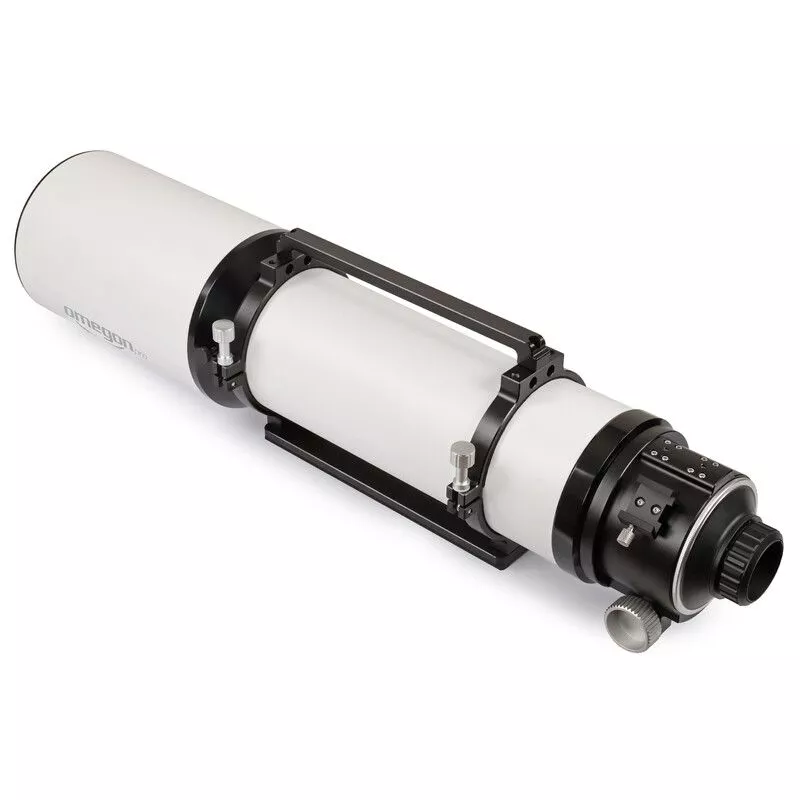

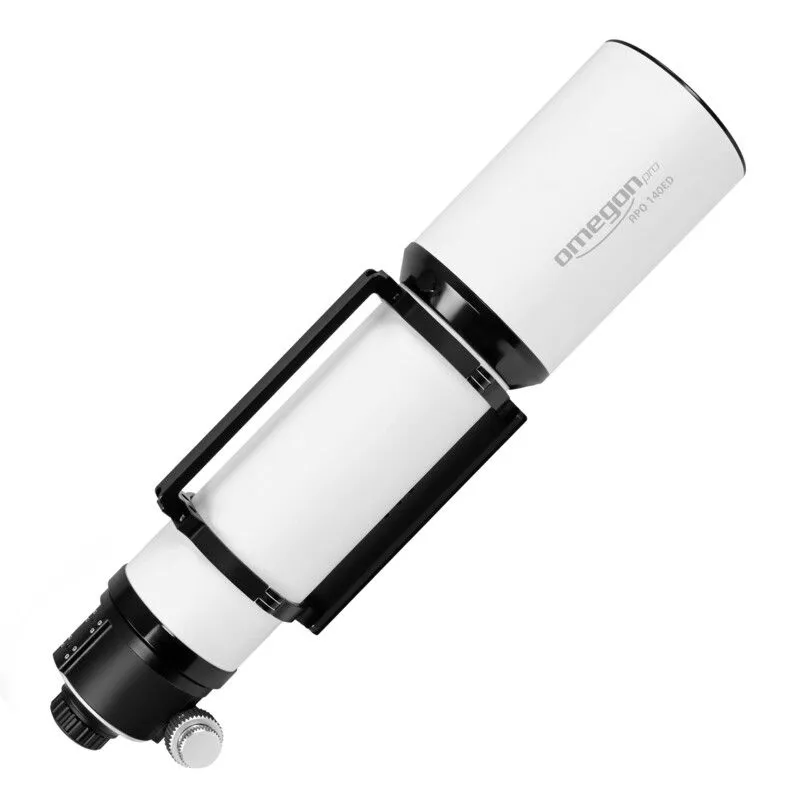

Omegon Pro APO AP 140/910 Triplet ED FCD-100 Apochromatic Refractor




Large opening for the small home observatory
The Omegon 140mm Apochromat is a telescope for astrophotographers and visual observers looking for the highest image quality and a large instrument.
Thanks to the size of the optics, it collects a lot of light and is ideal for small observatories or amateur astronomers with a fixed location. If you are not afraid of some larger equipment, then this telescope can also give you wonderful astrophotos in areas with little light pollution. The higher resolution also makes this telescope an expert for close binary stars. Visual deep sky observations with high contrast are also particularly successful with the 140 f/6.5.
The triplet lens is particularly sharp and uses the high-quality FCD100 ED glass manufactured by Hoya in Japan with extremely low color deviation, which enables razor-sharp planetary observations and impressive astrophotos.

The advantages at a glance:

    Triplet apo lens with FCD-100 ED lens: High-quality apochromatic lens with pure color and high-contrast images
    Internal screens against reflections for even better contrast when observing and astrophotography
    3.5 inch hybrid focuser with 1:10 reduction: Connect even heavy accessories up to 10kg
    Everything thought of: This telescope comes with CNC tube rings, GP mounting rail, finder shoe and extendable dew cap. A telescope for astrophotographers to get started!



Made for perfect astrophotos
The apochromat has arrived in modern times because the imaging from this telescope is nothing less than outstanding. The ED triplet apo lens with air gap ensures particularly high-contrast and pure-color images. At the heart of your astrophotography machine is the FCD-100 glass from Hoya from Japan, which is known for its low color deviation. You can also treat nebulae and planets to very high magnification: the images will remain clear and sharp.
A telescope for all astro enthusiasts who value high-quality images.

More about FCD-100:
Thanks to technological innovation, Hoya has successfully optimized the mass production of FCD-100. An optical glass with extremely low dispersion, which even comes close to fluorite. By combining it with an optical glass with a high refractive index, it has been possible to achieve a previously unattainable innovative chromatic aberration correction.

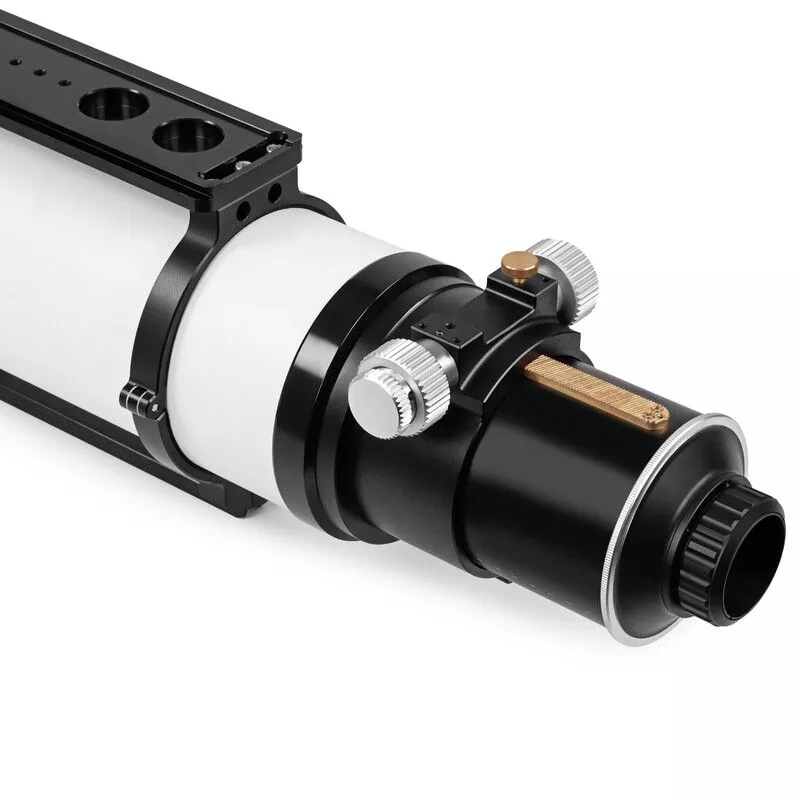

3.5" focuser for full-format sensors

With this huge focuser, all your problems will be a thing of the past - at least those relating to the illumination of your camera. Because you can use any camera from APS-C to full format and get perfect results thanks to the interaction of the lens and focuser.
The focuser works based on a hybrid technology consisting of a rack (oblique grooves) and ball bearings. This means: The focus can be adjusted as smoothly and precisely as possible, but the load capacity and stability are high. Now you can even attach heavy cameras and equipment weighing up to 10kg.

M63 thread connection (inside): In addition to the classic 2-inch (with 1.25-inch reducing adapter) connection for eyepieces and cameras, this instrument also offers a 63mm thread so that you can easily and stably fix a flattener or reducer.

The handle with double use
Simply clever: With the practical carrying handle, you always have your Apo safely in your hand. Whether during transport or when installing on the mount. The handle also serves as a mounting rail for accessories attached in parallel. So everything has its place: For example, use a guiding scope and guiding camera.



Scope of delivery:

    Apochromat 140/910 in triplet design with Hoya ED glass in an adjustable lens mount
    CNC manufactured pipe clamps with ¼ inch photo thread
    Tube with extendable dew cap (outer diameter 145mm)

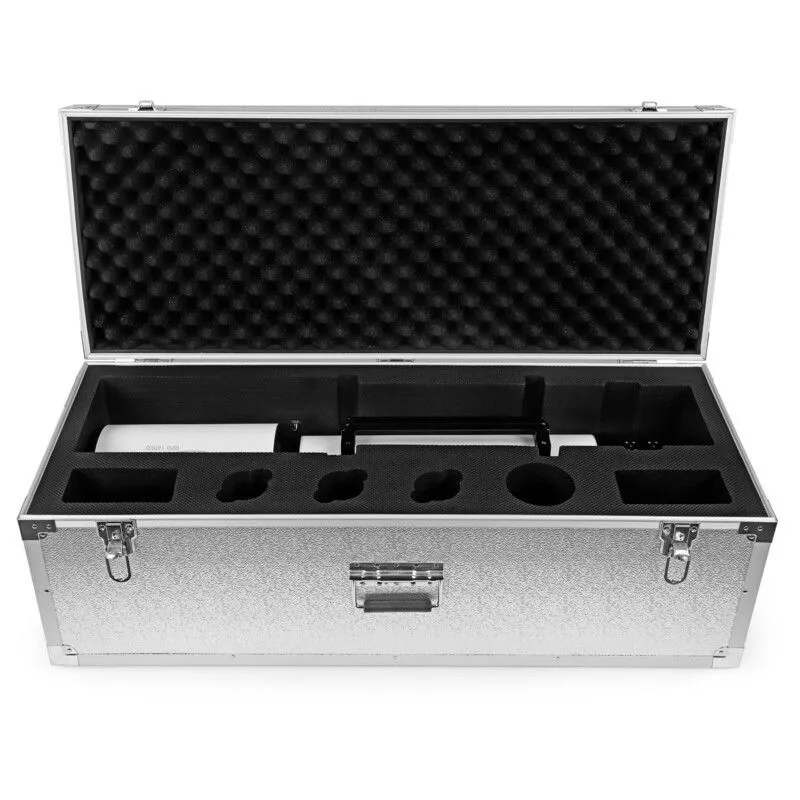

    Transport case
    Finder scope adapter
    2"/1.25" reducer adapter

TECHNICAL DATA
optics
type
refractor
Construction type
Apochromat
Opening (mm)
140
Focal length (mm)
910
Aperture ratio (f/)
6.5
Resolution power (arcseconds)
0.82
Limit size (like)
12.5
Light gathering capacity (-fold of a 7mm pupil)
400
Max. sensible magnification (x)
280
Lens design
Triplet
Glass material
HOYA FCD-100
Tube weight (kg)
10.5
Tube length (mm)
850
Tube material
aluminum
Compensation
FMC
Lens hoods in the tube
Yes
Dew cap diameter (mm)
182
Focuser
Construction type
R&P pinion
Connection (eyepiece side) (inch)
2
Connection thread (camera side)
M63x1 (f)
Ring clamping
Yes
Load capacity (kg)
10
Reduction
1:10 fine drive
Mount
Mount type
without mount
Accessories included
proofreader
without
Prism rail
Losmandy style
Carrying handle
Yes
Transport case
Yes
Viewfinder shoe
Vixen/Skywatcher levels
Pipe clamps
Yes
Generally
series
Per APO
Areas of application
Astrophotography
Yes
Moon & Planets
Yes
Nature observation
not recommended
Nebulae & galaxies
Yes
Sun
no (only with suitable sun filter)
Recommended for...

Beginners
no
Advanced
Yes
observatories
Yes

$Omegon Pro APO AP 140/910 Triplet ED FCD-100 Apochromatic Refractor$
