ZWO Guidescope Mini 30mm f/5 guide scope / finder

Compact 30 mm f/5 Guide Scope
Apochromatic, multi-coated lens system
For telescopes with a focal length of less than 750 mm
Camera-side mount: M42x0.75 (T2)
Fits all common finderscope mounts

The compact guide scope fits all common finderscope mounts, including those from Omegon, Skywatcher, TS-Optics, GSO, Vixen, and Celestron. The guide scope is simply mounted in place of the finderscope, making connecting it to your telescope incredibly easy.

The autoguider is also easily attached. By rotating the lens, the focus can be adjusted from 0 mm to 20 mm from the T2 thread. This allows the use of all common autoguiders and cameras with a T2 mount. With an optional T2 to 1.25" adapter, you can also use the compact autoguiders with the 1.25" housing. The clamping is then achieved using the two knurled screws and a clamping ring.

Technical Specifications
Performance
Lens Diameter (mm)
30
Focal Ratio (f/)
5
Focal Length (mm)
150
Camera Mount
T2
Eyepiece Mount
1.25"
Optical Coating
FMC
Number of Lenses
3
Focusing
Helical
Focusing Travel (mm)
20
Suitable for Focal Length (mm)
< 750
Features
Finder Shoe
Yes
General
Type
Guiding Aid
Design
Guidescope
Weight (g)
384

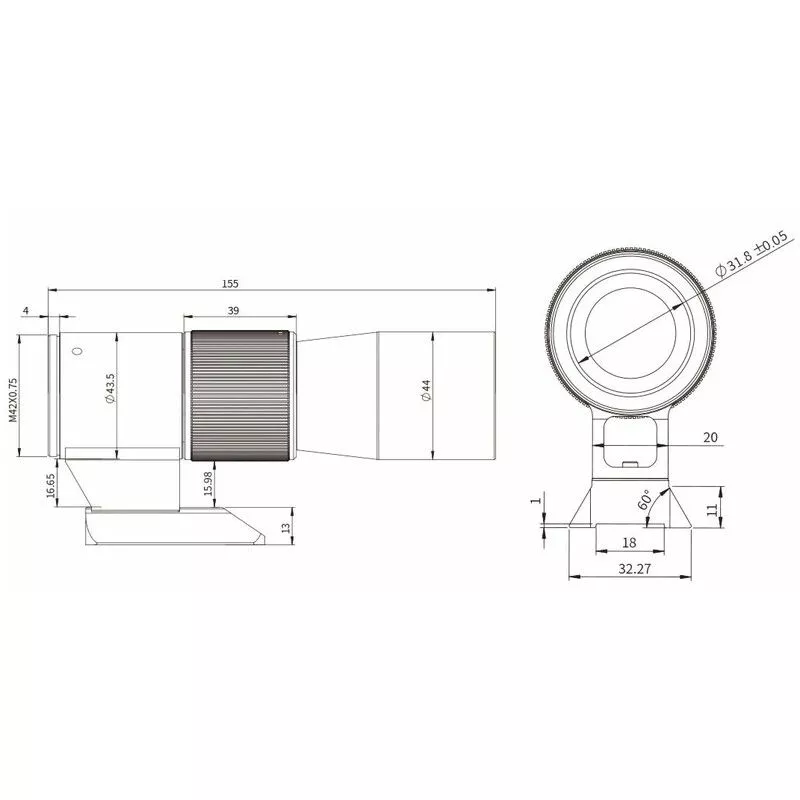

External Dimensions LxWxH (mm)
155 x 44 x 73

Product Safety
Manufacturer: Suzhou ZWO Co., Ltd., Moon Bay Road 6, SuZhou Industrial Park, 215123 SuZhou, CN, www.zwoastro.com
