Askar 0.8x reducer/corrector for 120Apo

This reducer effectively shortens the exposure time and significantly increases the field of view.

♦ Designed for the Askar 103APO

♦ Reduces the focal length by a factor of 0.8 to 672 mm

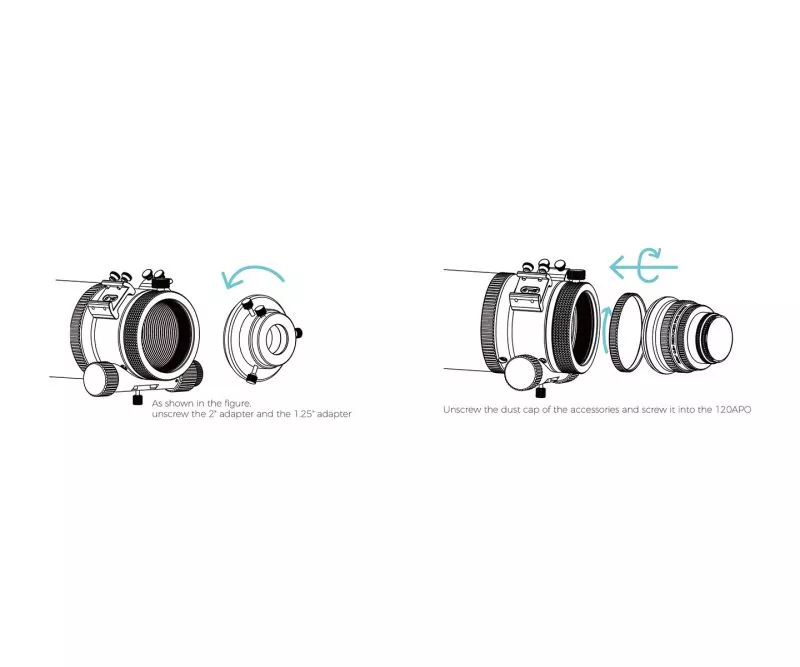

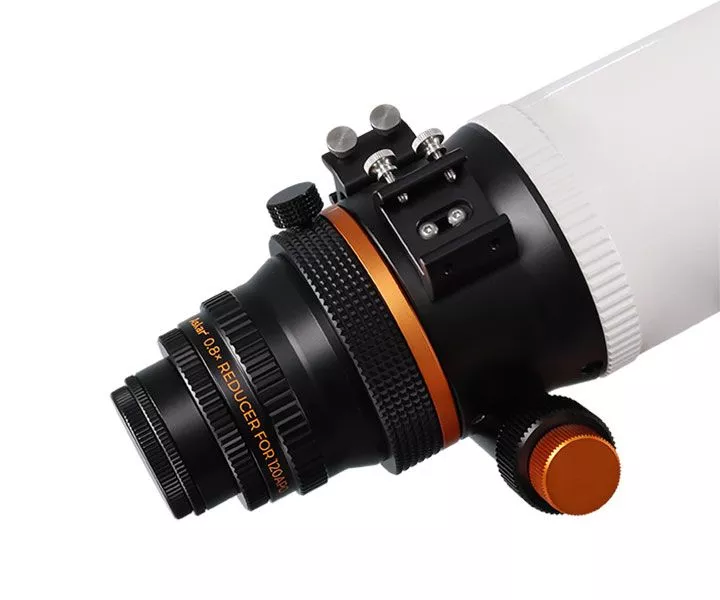

♦ Is screwed to the focuser

♦ Camera-side threads M54x0.75 and M48x0.75

♦ 55 mm back focus from the base of the M48 thread

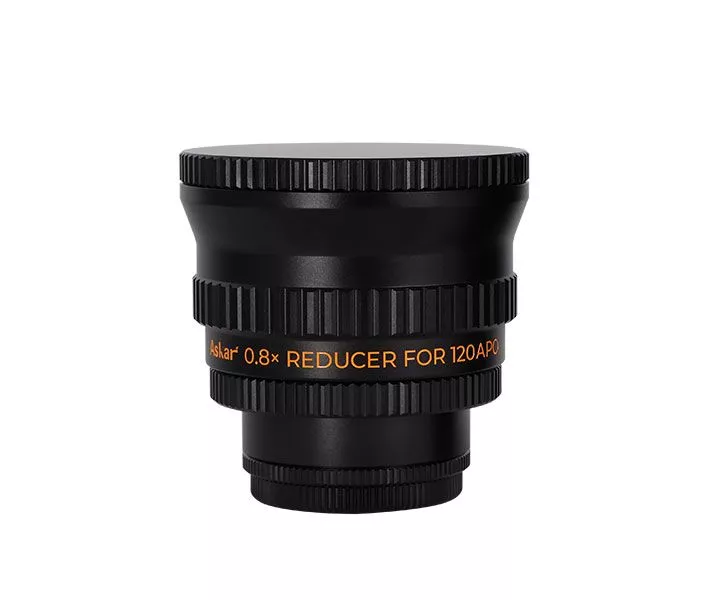

Askar 0.8x reducer for 120APO

The 0.8x reducer shortens the aperture ratio of the Askar 120APO to f/5.6 and simultaneously enlarges and flattens the image field. A faster aperture ratio allows the telescope to have a wider field of view and shorter exposure times, making it suitable for capturing large areas of nebulae, star clusters and faint, fast-moving celestial objects.

The three-lens reducer offers a 44 mm image circle that is sufficient for full-format cameras. The weight is 0.75 kg, the support dimension from the base of the M48 thread is 55 mm.

There are two external threads available on the camera side: M54x0.75 and M48x0.75. At the same time, the integrated 2-inch filter thread (M48x0.75) can be used for direct mounting of filters. CNC-milled metal protective caps are included for safe storage.




Type: Focal Length Reducer
Suitable for telescopes: Askar 120APO
Shortening factor: 0.8 times
Optical structure: Triplet (three lenses)

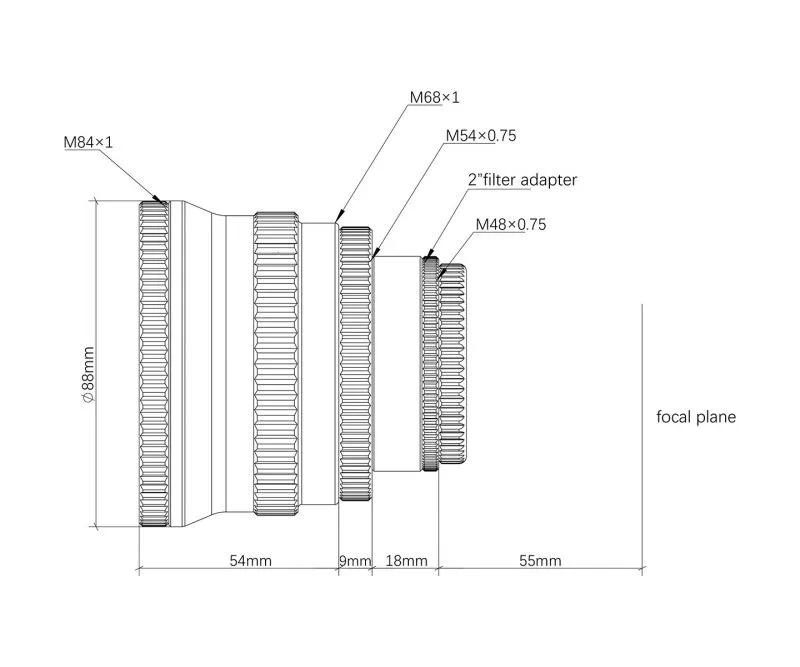

Connection to the telescope: M84x1
Filter thread telescopic side: M48x0.75 inside
Camera-side threads: M54x0.75 external, M48x0.75 external
Back focus: 55mm from the flange of the M48 thread
Weight: 0.75kg
