The Askar 120APO is checked, measured and, if necessary, adjusted by us before delivery. The focuser is adjusted.

Examples of our test protocols: Test recordings
How we adjust: About us

Please contact for advice on this telescope. This way you can benefit from our experience before you buy.

We ship this telescope free of charge in Germany.

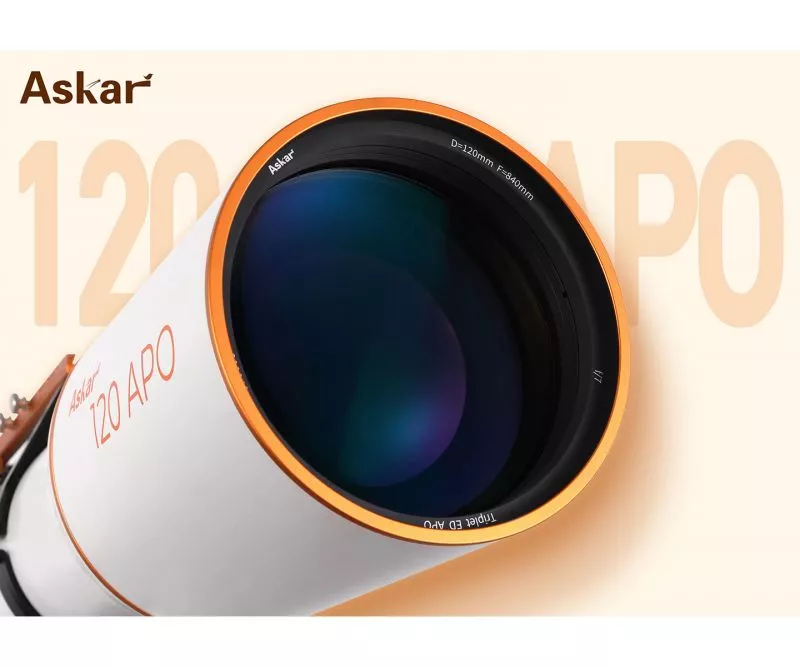

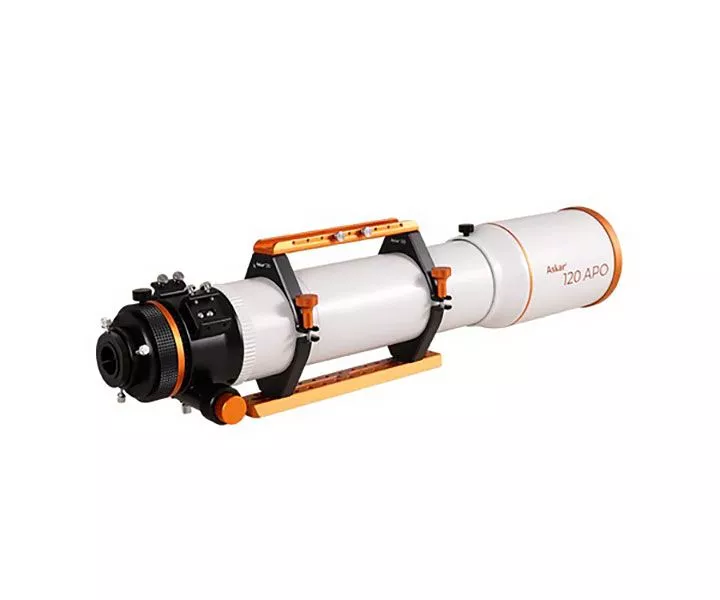

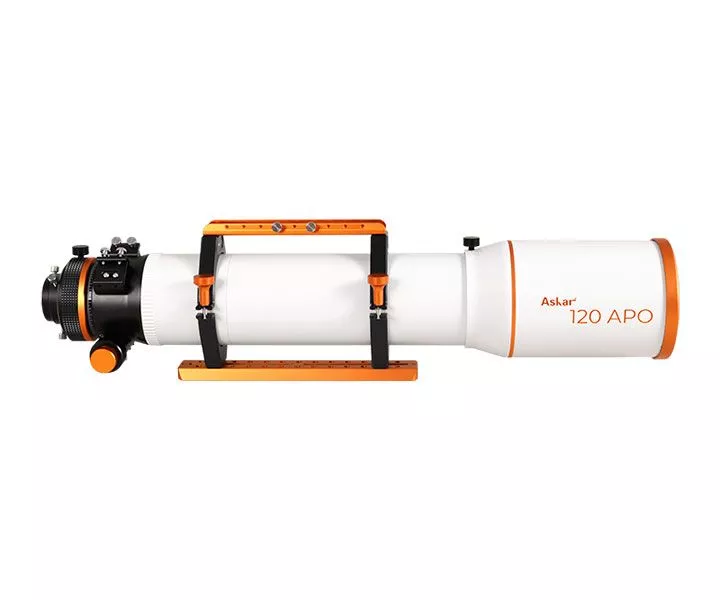

Askar 120APO 120mm 840mm f/7 apochromatic refractor ED-APO




The Askar 120APO is an apo refractor with 120 mm aperture, 840 mm focal length and a native focal ratio of 1:7 with many useful functions and a corrector or reducer as an option.

♦ Aperture 120 mm - focal length 840 mm - focal ratio f/7

♦ Triplet lens with an ED element

♦ Stable 3.3" RAP focuser with 1:10 micro reduction, 360° rotation connection and 100 mm adjustment range

♦ Sufficient working distance for observation with 2" accessories and for photography

♦ Flattener and 0.8x reducer available

♦ CNC clamps with prism rail (Vixen/EQ5) and carrying handle

♦ Two viewfinder shoes

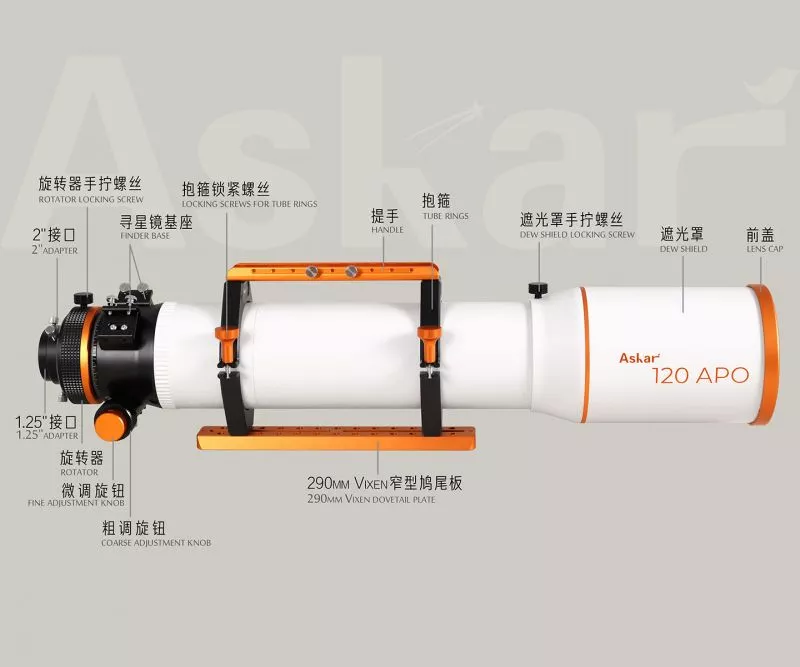

The retractable design of the dew cap and the enlarged locking screws allow for convenient use. The dew cap serves to protect the lens from external and internal light influences as well as to protect the lens itself.

The Askar 120APO has two viewfinder shoes, one on each side. Many users are concerned about the limited space for installing additional astronomy accessories. For this reason, Askar has installed special finder shoes on both sides of the focuser. This not only eliminates the need to disassemble the finder scope when changing the position of the finder, but also provides additional mounting positions for additional astronomical accessories.

The handle of the Askar 120APO has a special slot so that it can also serve as a base for mounting a finder scope. The handle itself has been extended by 60 mm, making it easier to attach the astrograph to the pipe clamps.

The total weight of the pipe clamps is only 780 g. The knurled screws make it easy to open and close the pipe clamps. At the same time, the bottom of the pipe clamps is raised and offers more space.

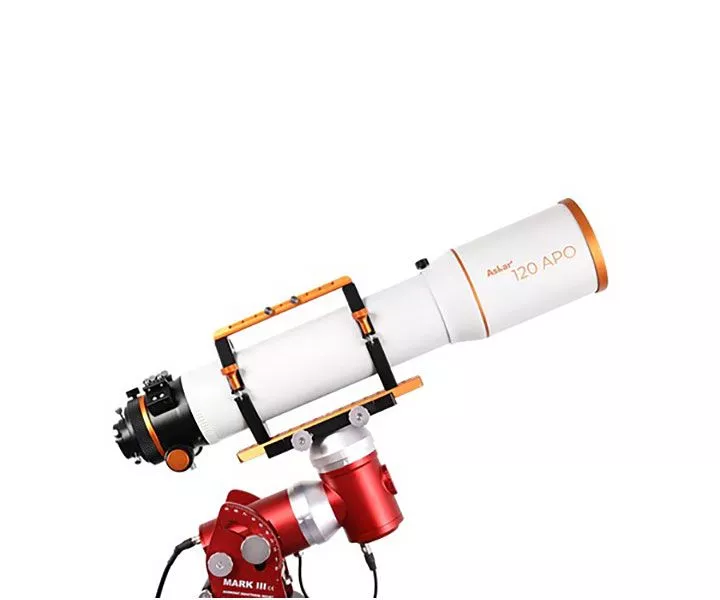

The Vixen standard dovetail bar is compatible with most equatorial mounts and bases on the market. It has been lengthened and provided with screw holes so that the plate is now 290 mm long, making it easier to balance on the mounts. With the slot on the handle, the distance between the pipe clamps can be adjusted as desired. In addition, a Losmandy dovetail bar is also available to purchase, which can be used with various equatorial mounts.

Useful optical options

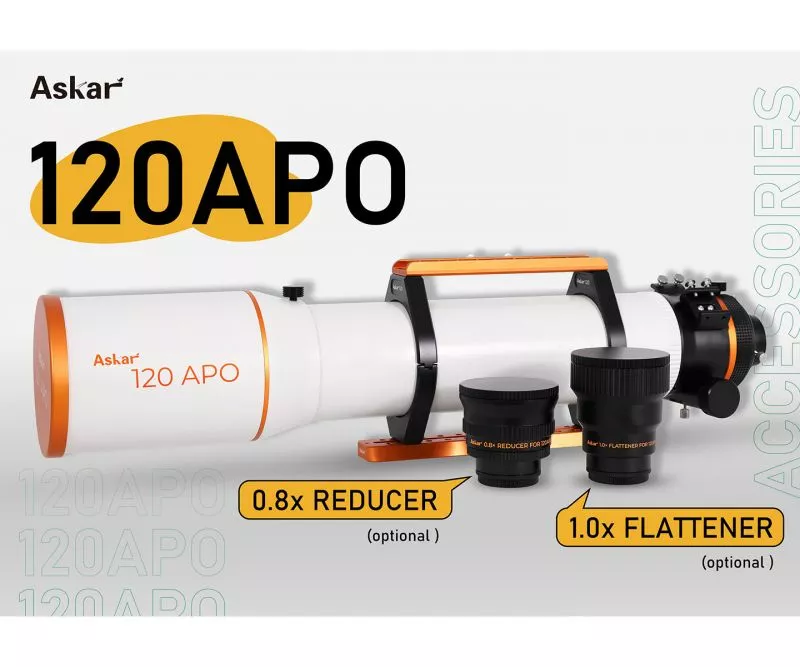

There are (currently) two optional accessories for the Askar 120APO: a 1x flattener and a 0.8x reducer. Both have built-in filter threads that allow filters to be mounted directly. They are also equipped with M54/M48 adapters that are suitable for holding accessories.

The 1x flattener does not change the focal ratio of the telescope itself. When mounted on the Askar 120APO, it maintains an aperture ratio of f/7. The flattener corrects field curvature and coma, resulting in flatter field edges and finer star points.

With the 0.8x reducer, the aperture ratio of the Askar 120APO can be brought to f/5.6. It is a standard reducer that also offers the option of flattening the field of view. A shorter aperture ratio allows the OTA to have a wider field of view and shorter exposure times, making it suitable for capturing large areas of nebulae, star clusters and faint, fast-moving celestial objects.

When it comes to visual observation, the Askar 120APO attaches great importance to the quality of observation. It can be easily focused when 1.25" or 2" star diagonals or various eyepieces are attached. Due to the segmented lens barrel, binocular lenses can also be connected for visual observation.

High-quality focuser



The Askar 120APO is equipped with a rigid 3.3" rack and pinion focuser with reduction that is compatible with most motor focusers on the market. There is a high-precision scale on the 10 cm long focusing path. The entire focuser is CNC machined and has an internal anti-reflective coating that provides additional measures to eliminate stray light.

On the back of the focuser there is a large 360° precision rotator with accurate scales for convenient adjustment and storage of rotation angles, enabling precise rotation. It is also equipped with an enlarged locking screw for the rotator, which can be easily locked even under high loads.

The connection at the back of the telescope comes with a 1.25"/2" adapter.

The entire tube of Askar 120APO is manufactured by high-quality CNC machining and treated with anodizing and spray painting. The orange accents on the ivory white tube create a bright and eye-catching look that creates a stylish and elegant overall look.

Let the Askar 120APO accompany you as you explore the magnificent landscapes of the universe and create unforgettable memories. Act now and start your astronomical adventure with the Askar 120APO!

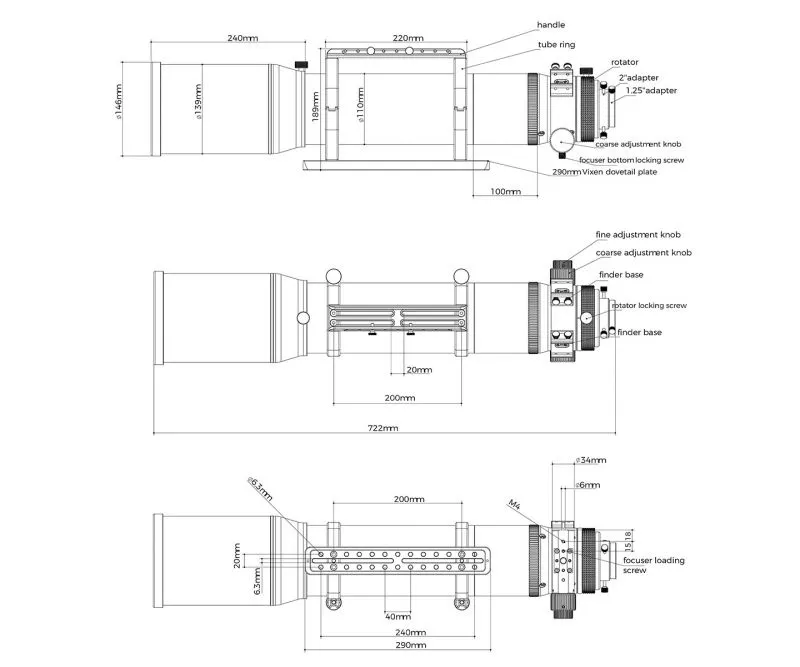

Opening: 120mm
Focal length: 840mm
Aperture ratio: f/7
Lens: Triplet Apo with air gap (including an ED lens)
Eyepiece focuser: 3.3" rack and pinion focuser with reduction and 360° rotation
Adjustment range: 10 cm
Adapter: 2", 1.25"
Dew cap: Retractable
Prism rail: GP/EQ5 standard, 290 mm long
Total length: 722 mm (with dew canopy retracted), 804 mm (with dew canopy extended)
Tube weight: 5.7 kg
Tube with tube rings and prism rail: 6.5 kg


♦ 120APO OTA
♦ CNC clamps with carrying handle and prism rail
♦ Two finder shoes mounted on the focuser
♦ Carry bag
