ZWO ASI2600MM Mono Astro Camera with Guiding Sensor and ASIAir - Sensor D=28.3 mm
Cooled astro camera with Sony IMX571 monochrome sensor, guiding sensor and ASIAir in one housingZWO Wireless Smart Camera ASI2600MM Air - 3 in 1 Solution: Guiding, Imaging and Smart Control
Get rid of all these hassles:Enjoy the beauty of the night sky anywhere
Start your astrophotography journey with great convenience
The ASI2600MM Air combines guiding, imaging, and smart control into one compact, lightweight device. Say goodbye to complex setups and enjoy a seamless, hassle-free astrophotography experience.
Main sensor
The main sensor IMX571 features an APS-C format and 26MP total pixels. The size is 23.5 mm in width x 15.7 mm in height, and the diagonal is 28.3 mm. The 3.76 µm x 3.76 µm small pixel size accommodates an impressive full depth of 50 ke. With the new hardware technology, it is even extended to 73 ke.
Guiding sensor
The SC2210 sensor taken from the ASI220MM Mini camera features very high sensitivity. The QE peak value reaches 92% at 500 nm. The read noise is as low as 0.6 e. As the new generation of guide sensor, it has achieved great results in guiding, proved by hundreds of astrophotographers.

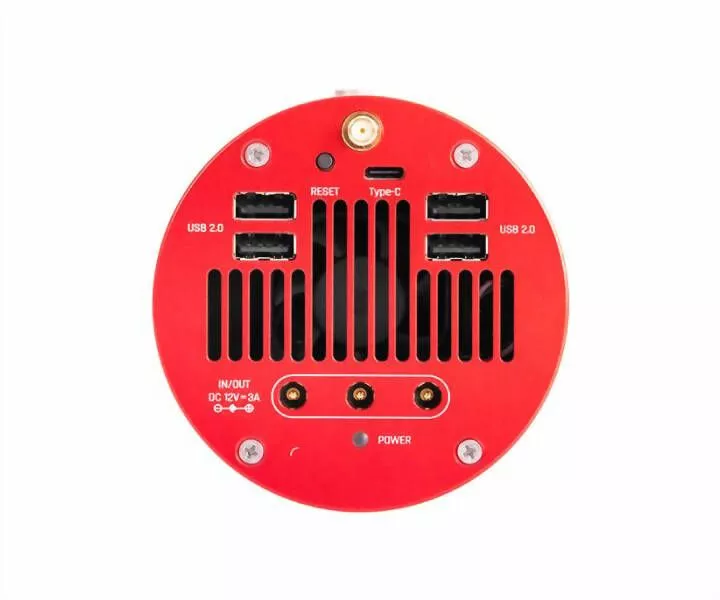

Effortlessly connect multiple devices: 4x USB2.0, 3x DC12V 10A, 1x USB Type-C
USB 2.0 ports for your focuser, filter wheel, and mount, DC 12 V 10 A input/output ports for reliable power, and USB Type-C port for fast file transfers to computer - you can focus on capturing stunning images without worrying about connectivity issues.
Shoot with confidence: ample storage and stability
With a massive 256 GB eMMC storage, the ASI2600MM Air allows you to capture multiple targets with ease. Rigorously tested with over 300 benchmarks, it ensures system stability. Plus, the USB 2.0 ports support up to 1 TB external storage, giving you plenty of room for all your astrophotography needs.
Dive into the rich details of the celestial targets
In expanded mode, the full well capacity of this camera reaches 73 ke, which is 1.46 times of that of the IMX571 sensor (51 ke), making long-exposure shots less prone to overexposure. The large full well capacity and high dynamic range make capturing both light and dark areas with stunning clarity and detail possible. Witness the miracle details and colors of targets like never before!
Dual-band Wi-Fi for stable signal
Experience unparalleled connectivity with ZWO´s enhanced external dual-band antenna, supporting both 2.4G and 5G frequencies and offering stable and smooth usage within 20 meters.

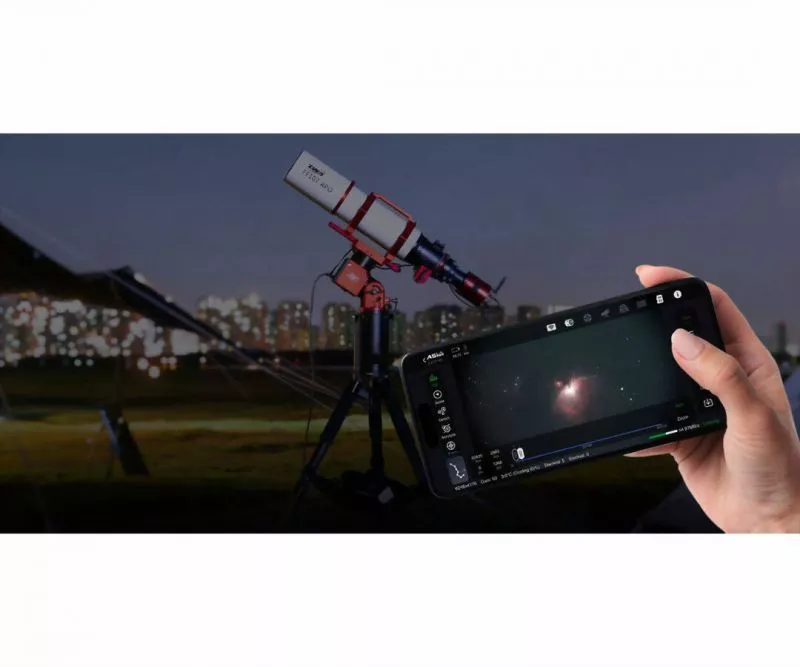

Get full control of your entire rig at your fingertips
With the ASIAIR smart app, you can easily control guiding, imaging, your mount, and electronic focuser - all from your phone. It supports multiple imaging modes, making it easy for even beginners to quickly learn and capture professional-quality images.
Guiding
After connecting to the mount, guiding is realised via the built-in guiding sensor, the built-in ASIAir control and the imaging software, i.e. the ASIAIR app or ASIImg from the ASIStudio suite. An ST-4 autoguider cable to the mount is therefore just as unnecessary as a separate guiding camera.
Instant post-processing and sharing
Live stack is supported during your imaging session. You may also make adjustments to brightness, contrast and others on the final image. Instantly share your masterpieces on social media platforms and astronomy communities, making your work stand out.
Go further with ZWO´s self-developed system
Powered by ZWO´s patented technologies, the system ensures stable astrophotography performance. Continuous App OTA updates keep your device up-to-date with the latest features, enhancing your user experience and expanding your capabilities.
User manual
ZWO supplies a user manual for the very similar color version, you can download the PDF rigth from here: asi2600mc-air-en.pdf
Practical tip: Good storage is an important preventive measure against dew and also extends the service life:
After use, put the camera straight into a Protect Case and add some silica gel. During storage, the silica gel absorbs the moisture from the camera. At the same time, the penetration of moist room air is prevented. Dry storage can even partially regenerate the small desiccant tablets in cooled cameras. Your camera or accessories are always ready for you in optimum condition. You can find the silica gel and the case in our product recommendations.
The cameras are not airtight, so if the camera remains on the telescope, it is exposed to moisture. The small amount of desiccant in the camera can protect the sensor and the inside of the protective glass from moisture for the duration of the exposure, but not for days on end. Moisture problems can be the result. A simple trick is to stretch a plastic bag around the focuser to which the camera is attached so that no air can get in. Silica gel is placed in a small cloth bag inside the plastic bag. This will also create a "dry climate zone" for the camera on the telescope. This allows you to leave the camera on the telescope for a few days for an imaging session lasting several days.
In the medium and long term, however, this is no substitute for proper storage in an airtight case with silica gel.

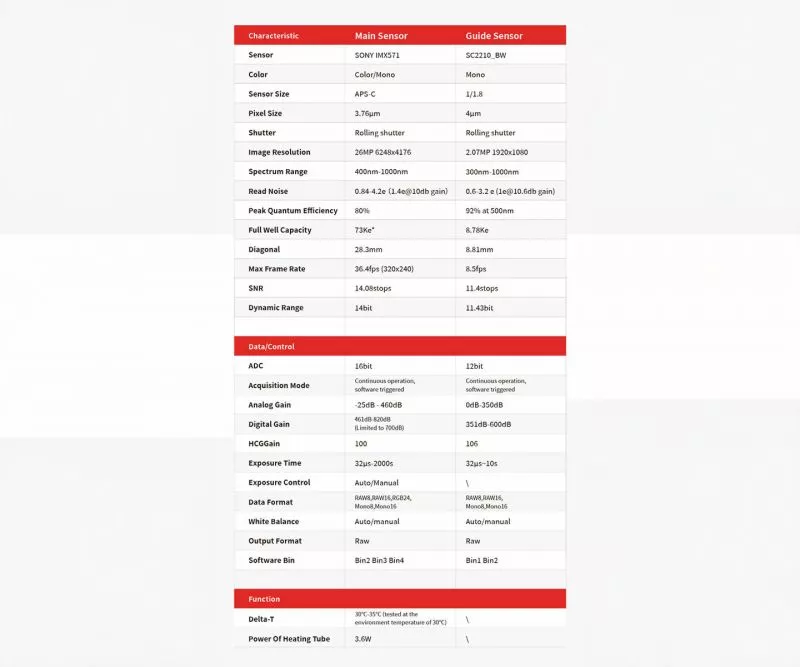

| Imaging sensor: | Sony IMX571 (back-illuminated CMOS monochrome sensor) |
| Sensor size: | 23.5 mm x 15.7 mm, diagonal 28.3 mm (APS-C) |
| Pixel size: | 3.76 µm |
| Resolution: | 26 megapixels |
| Pixel array: | 6248x4176 pixels |
| Exposure Range: | 32 µs to 2000 s |
| ADC: | 16 bit |
| Cooling: | Powerful Peltier cooler, cooling 30 °C to 35 °C below ambient |
| Full well: | 50 ke-, up to 73 ke- at extended full well mode |
| Readout noise: | 0.84 to 4.2 e- |
| Sensitivity: | Peak 91% QE |
| Zero amp glow design: | Yes |
| Window type: | IR cut |
| Anti-dew measures: | Anti-dew heater, 2.88 W, can be turned off |
| Guide sensor type: | SC2210 |
| Dimensions: | 7.68 mm x 4.32 mm, diagonal 8.81 mm (1/1.8") |
| Pixe size: | 4 µm x 4 µm |
| Resolution: | 2.07 megapixels |
| Pixel array: | 1920×1080 pixels |
| Exposure Range: | 32 µs to 10 s |
| ADC: | 12 bit |
| QE: | 92% at 500 nm |
| FWC: | 8780 e- |
| Readout noise: | 0.6 to 3.2 e- |
| Frame rate: | 8.5 fps |
| ST-4 port: | no, not necessary |

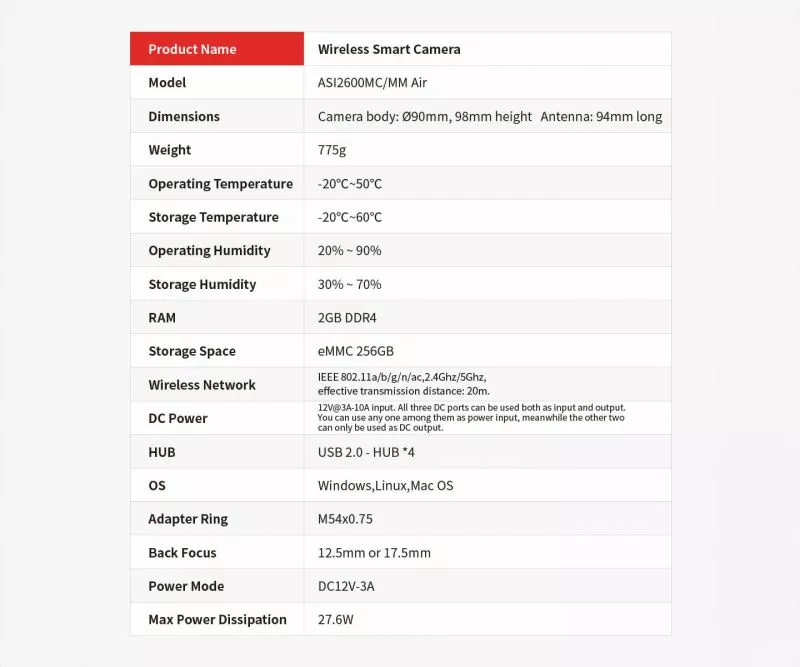

| Built-in controller: | ASIAir (Mini) type |
| RAM: | 2 GB DDR4 |
| Storage space: | eMMC 256 GB |
| Data interface corded: | Type-C (only for data transfer to computer) |
| Wireless network: | IEEE 802.11a/b/g/n/ac, 2.4 GHz / 5 GHz, effective transmission distance 20 m |
| DC power connectors: | 3x 5.5/2.1 mm coaxial power connectors, two of them as outputs |
| Power supply: | 12 V, 3 to 10 A, (power supply not included) |
| Power consumption: | 12 V, 3 A |
| Max power dissipation: | 27.6 W |
| USB Hub: | 4x USB 2.0 |
| Telescope connection: | M54x0.75 female thread |
| Working distance from female thread to sensor: | 17.5 mm |
| Diameter: | 90 mm |
| Length: | 98 mm |
| Antenna length: | 94 mm |
| Weight: | 0.76 kg |
EN- Safety instructions
Not suitable for children under 3 years of age.
Packaging not suitable for consumption.
Keep packaging out of reach of children. Risk of suffocation!
Never look at the sun with a telescope or binoculars. Risk of blindness!
Children should only use telescopes and binoculars in the presence of an adult.
