ZWO Mono Astro Camera ASI585MM Pro cooled, sensor D=12.84 mm, pixel 2.9 µm

For a larger view click on the thumbnail

Our previous price 899,00 EUR Now only 889,00 EURyou save 1% / 10,00 EUR

19 % VAT incl. excl. Shipping costs

Add to cartAdd to cart

Financing from 20,00 EUR per month
more information about installment purchase

Shipping time: In stock + testing

Product no.: ASI585MM-P

Reviews: (0)

MPN: ASI585MM-P

Manufacturer: ZWO

More products of: ZWO

• Print datasheet

• Details
• More images

Products description

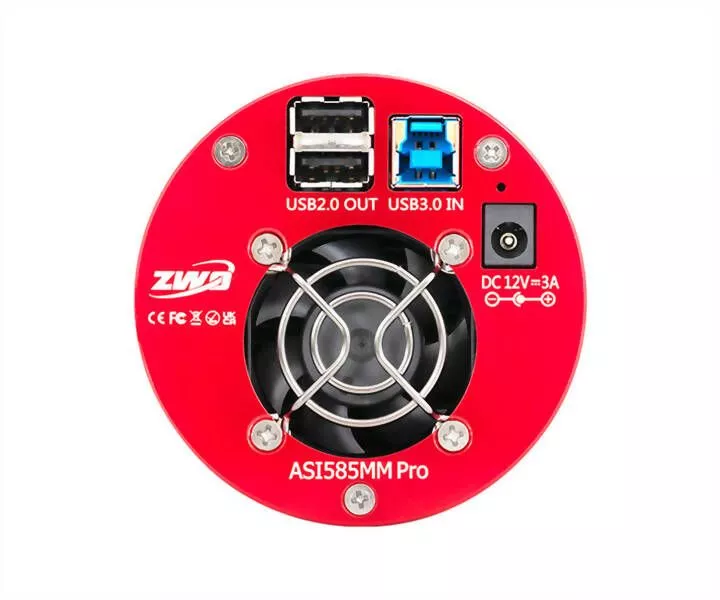

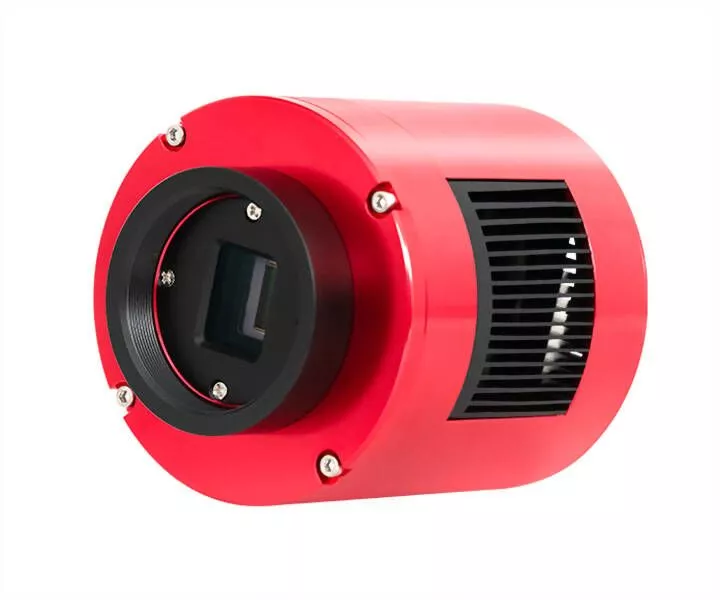

ZWO Mono Astro Camera ASI585MM Pro cooled, sensor D=12.84 mm, pixel 2.9 µm


A powerful monochrome camera with Peltier cooling for a very reasonable price - the CMOS camera can be used in any field of astrophotography.


Sensor: 1/1.2" CMOS IMX585 with 8.29 megapixel resolution

Sensor size: 6.26 mm x 11.13 mm - Diagonal: 12.84 mm

Very high resolution: 3840 x 2160 pixels with 2.9 µm size

Approx. 91 % QE - high sensitivity for short exposure times

Powerful pelier cooling up to 35 °C below ambient temperature

High frame rate of 47 fps also suitable for EAA

Full well capacity 40 ke-

Starvis 2 technology with back illumination

USB 3.0 for fast image download

DDR Memory Buffer 512MB

12 bit ADC

No amplifier glow (amp glow)

Extensive scope of delivery


ZWO ASI585MM Pro monochrome astro camera with active Peltier cooling - A camera for all astrophotographic applications

This camera is equipped with a 1/1.2" sensor with 3840*2160 pixels (4K UHD). The modern Sony IMX585 sensor is particularly impressive due to its high resolution (2.9 µm pixels), high frame rate and the complete absence of annoying amp glow. This makes this camera very interesting not only for planets and the sun and moon, but also for long exposures (deep-sky photography). The sensor is large enough for many deep-sky objects, yet you can usually manage without a corrector. The ASI585MM Pro is an ideal entry-level camera, but also an exciting second camera for dedicated astrophotographers. The camera is very well suited for:

Lunar and planetary photography with high detail resolution

Solar photography (with suitable filter) with high detail resolution

Long exposures of nebulae and galaxies

Infrared photography to reduce the effects of seeing, resulting in a sharper luminance channel

EAA (electronically assisted astronomy) for planets, moon and sun

This camera is an alternative to DSLR and mirrorless system cameras for deep-sky photography
Even the raw images are of high quality, as the sensor no longer shows any amplifier glow and the images are very smooth. Added to this is the powerful Peltier cooling up to 35 °C below ambient temperature, which means that low-noise images can be taken even at the height of summer.

Moon and planetary photography
Thanks to the fine 2.9 µm pixels, you can achieve a very high resolution from f/10, which makes the use of Barlow and converter systems superfluous.

EAA (electronically assisted astronomy)
The high resolution, combined with a high frame rate of 47 fps at full resolution (RAW8 format), allows real-time observation not only of planets, but also of the moon and sun due to the relatively large sensor. Simply observe together in a group - without having to wait until everyone has had a turn!

Anti-reflective clear glass filter protects the sensor from dust
The clear glass filter prevents dust from penetrating the sensor. It also lets UV and infrared light through so that you can also use the camera for infrared photography. With the right choice of contrast filters, fog filters, IR pass filters or UV/IR blocking filters, you have full control over which light falls on the sensor.

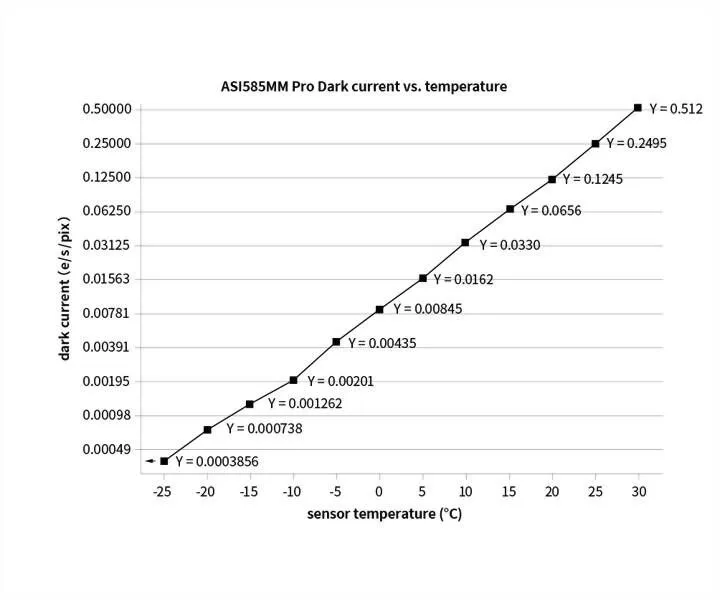

Peltier cooling - reduces the sensor temperature
The sensor heats up during shooting. Thanks to the controlled Peltier cooling, you can keep the sensor well cooled even at high outside temperatures. At an ambient temperature of 20 °C you can cool the sensor down to -15 °C.

Very high sensitivity for short exposure times
One advantage of the back-illuminated CMOS sensor is the reduced readout noise and improved sensitivity. In particular, Sony uses STARVIS-2 technology with the IMX585 sensor, which ensures excellent visibility in low light. You can achieve a very high light yield in astrophotography and obtain high image quality not only in visible light but also in the near infrared range (to reduce seeing). In addition, the low readout noise and the high full-well capacity ensure a larger dynamic range.

In combination with the large field of view offered by the large sensor format, the ASI585MM Pro is not only ideal for solar, lunar and planetary imaging, but can also be used as a live streaming camera or as an all-sky camera for observing or monitoring weather conditions.

The low noise and anti-ampglow circuit make this Peltier-cooled camera interesting for capturing deep-sky objects such as faint nebulae, star clusters and galaxies.

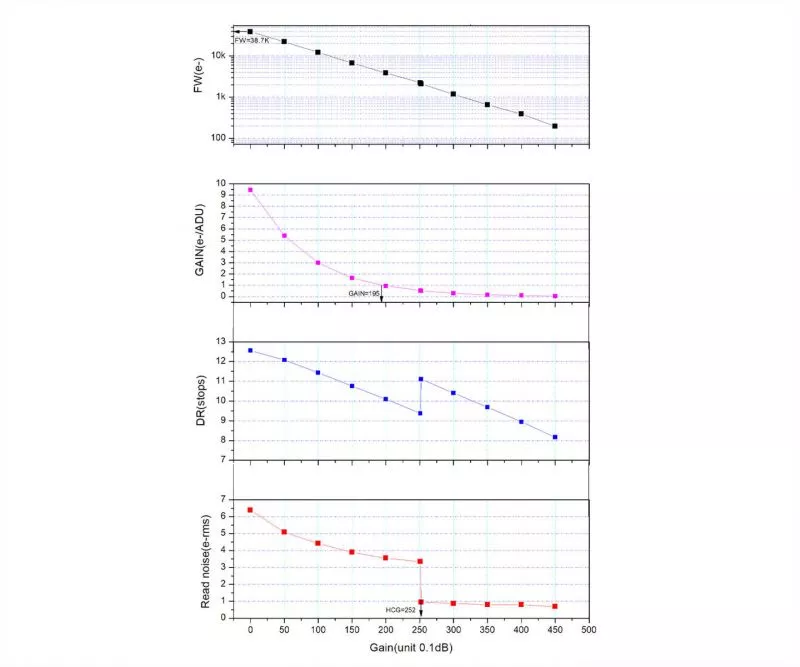

The HCG mode
The camera has a built-in HCG mode that can effectively reduce readout noise at high gain while maintaining the same wide dynamic range you would expect at low gain. When the gain is 252, the HCG mode turns on automatically. As a result, the readout noise is only 0.7 e-, while the dynamic range can still reach almost 12 f-stops.

Practical tip
The camera is often used on correctors that do not offer a filter thread. In addition, the filters should always be used as close as possible to the camera. Here we offer you a solution that can do much more.

2" filter holder directly in front of the camera

360° rotation for the right choice of image section

Quick coupling - you can remove the camera from the remote ear at any time without screws and thus tangling the cables

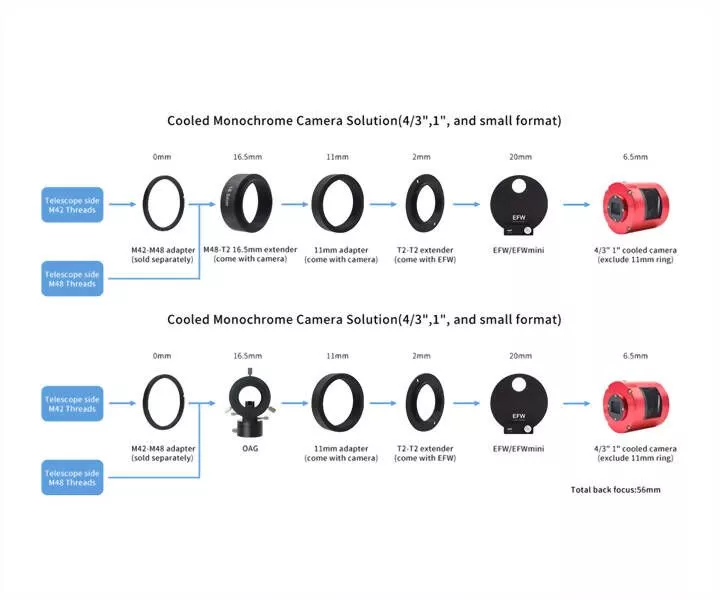

Adaptation is very simple, the 21 mm T2 extension is replaced by:

1x TSROTT2-T2 and 2x T2AbstimmA1

One tuning ring goes on the camera side, one tuning ring goes on the telescope side of the rotator. Then screw on the M42-M48 adapter with 16.5 mm length and you are at the correct distance with the camera.

Practical tip
Especially in our latitudes, the nights are often very humid. This moisture settles on your camera, eyepiece or filter when they come into the warm interior of your home. Cooled cameras are particularly affected by this. A photo session can quickly come to an end because the sensor ices up.

Proper storage is an important preventative measure against dew and also extends the service life of the camera.
After use, put the camera immediately into the Protect Case and add some silica gel. During storage, the silica gel absorbs the moisture from the camera. At the same time, the penetration of moist room air is prevented. Dry storage can even partially regenerate the small drying tablets in cooled cameras. Your camera or accessories are always ready for you in optimum condition. You can find the silica gel and the case in our product recommendations.

The cameras are not airtight, so if the camera remains on the telescope, it is exposed to moisture. The small amount of desiccant in the camera can protect the sensor and the inside of the protective glass from moisture for the duration of the exposure, but not for days on end. Moisture problems can be the result. A simple trick is to stretch a plastic bag around the focuser to which the camera is attached so that no air can get in. Silica gel is placed in a small cloth bag inside the plastic bag. This will also create a "dry climate zone" for the camera on the telescope. This allows you to leave the camera on the telescope for a few days for an imaging session lasting several days.

In the medium and long term, however, this is no substitute for proper storage in an airtight case with silica gel.

Downloads, drivers
ZWO provides software and drivers online for free download.

Software and drivers for all ZWO cameras



Sensor:	Sony 1/1.2 inch CMOS IMX585 (mono)
Resolution:	3840 x 2160 pixels, 8.28 megapixels
Pixel size:	2.9 µm
Sensor size:	11.13 mm x 6.26 mm
Sensor diagonal:	12.84 mm
Exposure time:	from 32 µs - 2000 s
Recording speed:	up to 46.9 fps at 4K UHD resolution
ROI:	Supported

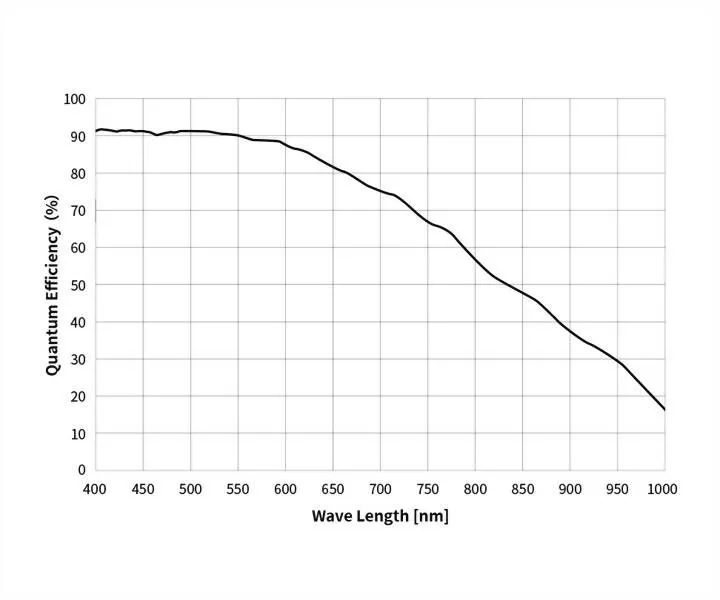

Quantum efficiency:	91 %
ADC:	12 bit
Full well:	40 ke-
Antiampglow circuit:	Yes
Readout noise:	0.7 e-
Distance from T2 female thread to sensor:	17.5 mm
Distance from T2 male thread:	6.5 mm (the male thread does not count)
Shutter type:	Rolling shutter
Protection window:	AR dust protection window (UV and IR light are transmitted)
Connection:	USB3.0/USB2.0
Bit resolution:	12 bit output (12 bit ADC)
Telescope connection:	2" / 1.25" / M42x0.75
Size:	78 mm diameter and 86 mm length
Weight:	410 grams



ASI camera cooled, with 11 mm T2 ring

Camera bag

USB3.0 cable, 2 m

Quick guide (English)

T2 extension (21 mm long)

M48 to T2 adapter (16.5 mm long)

Adapter from T2 to 1.25" receptacle with filter thread

Cover cap 1.25"

M42-M48 adapter (without optical path)

2x USB 2.0 cable, 0.5 m

Flat adapter T2 to 1.25" thread (without optical path)

4x spacer ring

EN- Safety instructions
Not suitable for children under 3 years of age.
Packaging not suitable for consumption.
Keep packaging out of reach of children. Risk of suffocation!
Never look at the sun with a telescope or binoculars. Risk of blindness!
Children should only use telescopes and binoculars in the presence of an adult.
