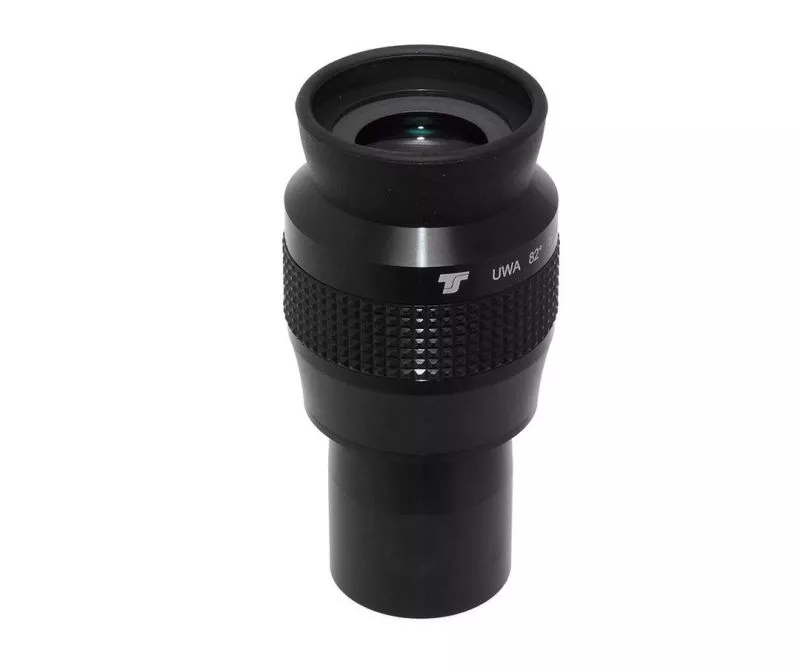

TS-Optics 1.25" ultra wide-angle eyepiece UWAN 10mm, 82° field of view

82° eyepieces with improved insight and excellent sharpness.

♦ Focal length 10mm for high magnification

♦ 82° field of view

♦ Very suitable for binocular observation, the eyepieces are only a maximum of 45 mm wide

♦ The soft rubber eyecup is foldable - ideal for people who wear glasses

♦ 1.25" insertion diameter with filter thread, tapered - no tilting possible

♦ Particularly high contrast thanks to special glasses and multi-layer coating on all glass-air surfaces

♦ Clear delimitation of the large field of view of 82°

♦ Very high contrast even on the moon and planets thanks to optimized apertures and clean internal blackening


TS-Optics UWAN 10mm 82° ultra wide angle eyepiece
The improved UWAN eyepieces from Telescope Service offer an extreme field of view of 82°. We placed particular emphasis on even better insight, more contrast and binocular suitability. The UWAN 10mm from TS-Optics sets standards in the field of large field eyepieces.

The UWAN 10mm is an eyepiece for higher magnification. It is a planetary eyepiece and at the same time an exciting deep sky eyepiece. Moon craters and the finest details on planets can be observed excellently. The viewing behavior is much better than with a Plössl or ortho eyepiece. But bright planetary nebulae or double stars can also be easily observed with this eyepiece. Use suitable telescopes to resolve globular clusters down to the core areas. Image brightness and contrast are guaranteed by multi-coating and clean internal blackening.

Features and advantages of the TS UWAN 10mm:


♦ Large, easily visible field of view of 82°
♦ Fully suitable for binoculars thanks to the conically tapered design on the side of the eye
♦ Soft rubber eyecup - easily foldable for glasses wearers
♦ Special lenses and high-quality multi-coating guarantee a bright, high-contrast image
♦ The 1.25" receptacle is tapered at the top, which guarantees secure clamping without tilting



Focal length: 10mm
Apparent field of view: 82°
Eye relief: 14 mm
Optical design: 7 lenses in 4 groups
Maximum diameter: 45 mm on the rubber ring
Height: 88 mm
Compensation: Multi-coating on every glass-air surface
Weight: 167 grams


♦ TS UWAN 10mm
♦ Dust caps on both sides
♦ Cleaning cloth
♦ Sturdy storage box with foam
