TS-Optics ToupTek GPM174M monochrome planetary camera and autoguider, sensor D=13.3 mm

Autoguider and planetary camera with large Sony IMX249 monochrome sensor - the astro camera is also very well suited for solar photography.

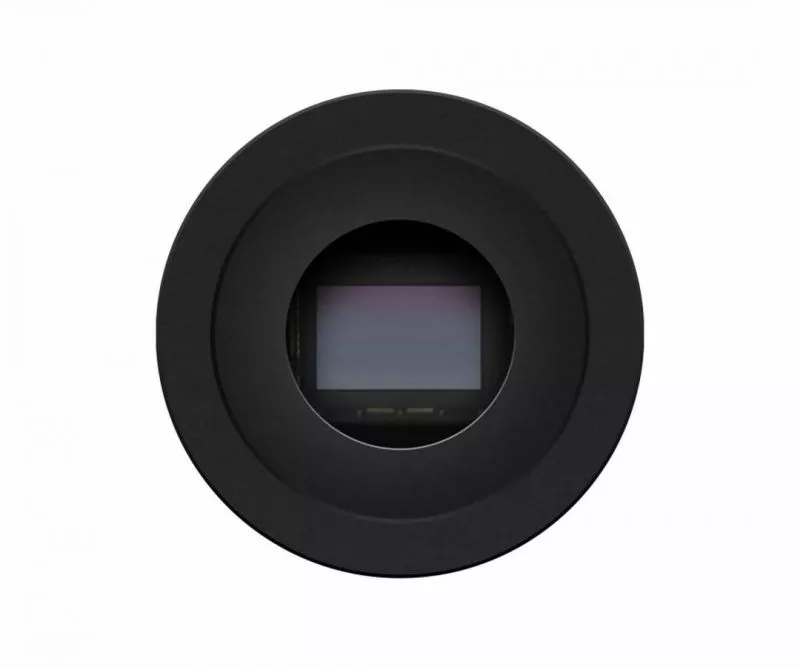

Sony IMX249 monochrome sensor with 13.3 mm diagonal (11.34 mm x 7.13 mm)

5.86 µm pixel size - well suited for all telescopes

1920x1200 pixels - more field of view than FullHD

Good sensitivity into the infrared

ARF clear glass filter protects the sensor from dust and also lets IR light pass

Includes ST4-level autoguiding interface

Also ideal for solar photography (no banding)

Practical 1.25" housing - you can insert the camera into the guide scope, finder or off-axis guider like an eyepiece.

Extensive scope of delivery: USB cable, ST4 autoguiding cable, C-CS mount adapter and 1.25" extension tube

Connection with C-thread for connecting lenses for industrial cameras, extension for CS lenses

The camera is equipped with a large 1/1.2" sensor. The SONY Pregius and Exmor technology produces very low-noise images with high sensitivity. The result is a very versatile camera that delivers excellent results for a wide range of requirements. Among other things, the camera is well suited for:

Lunar and planetary photography - locating without Barlow lens, imaging with Barlow lens

Solar photography with a suitable filter - approx. 700 mm focal length show the sun (or moon) completely

Autoguiding - a guide star is always found

Deep-sky photography - the high sensitivity of the sensor allows nebulae and galaxies to be photographed with short exposure times

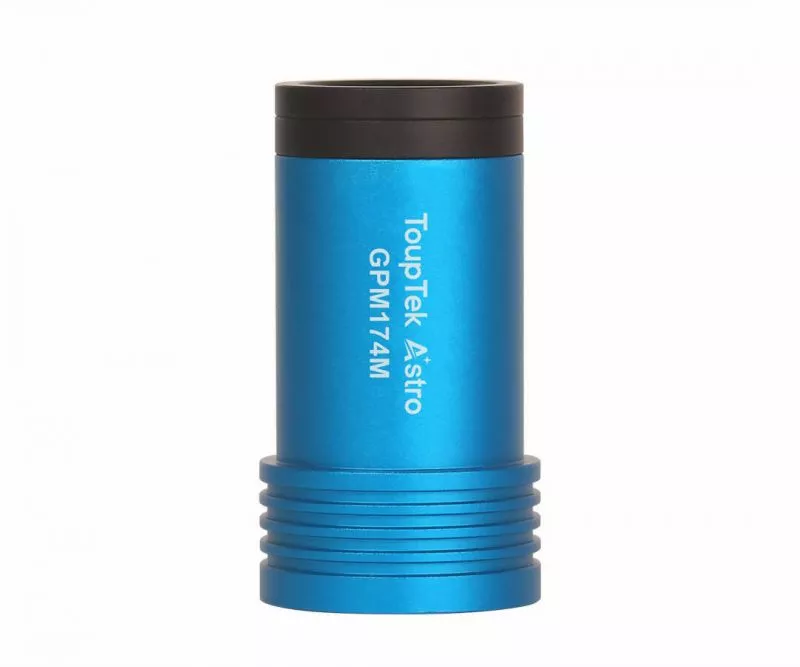

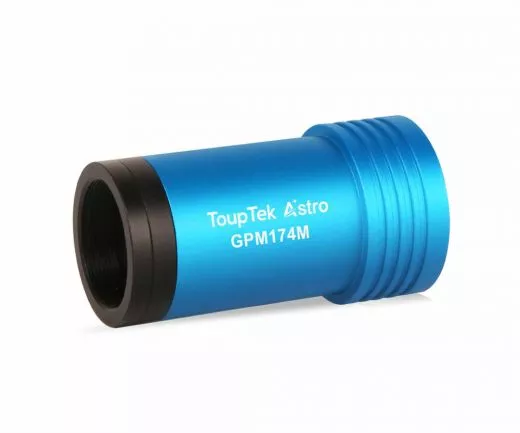

The practical 1.25" body:
The camera is supplied in a compact 1.25" housing. This makes it easy to connect to the telescope. The camera is inserted into the focuser like an eyepiece and focused. You can start astrophotography immediately. In addition, the housing is equipped with a female C-mount thread on the telescope side. This allows you to screw the camera to the telescope or a camera lens.

Drivers and online user manuals
The manufacturer ToupTek offers current drivers and a user manual on its website. Here are the links:
Manual
Drivers, Software

Sensor:	Sony IMX249 monochrome sensor
Resolution:	2.3 megapixel, 1920x1200
Pixel size:	5.86 µm
Sensor size:	11.3 x 7.03 mm - diagonal 13.31 mm

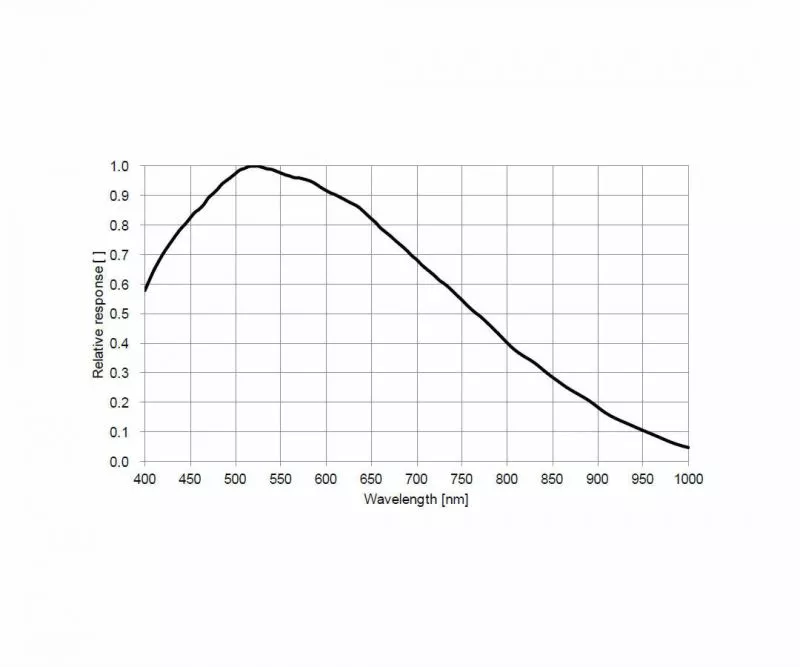

Spectral range:	380-1100 nm
QE:	89% peak
Read noise:	6.48 to 3.96 e-
Full well:	33.4 ke-
Exposure time:	0.42 µs - 1000 s
Frame rate at full resolution:	16.2 fps @ 8 bit, 8.5 fps @12 bit
ST4 guider port:	yes
Protection window:	AR coated window

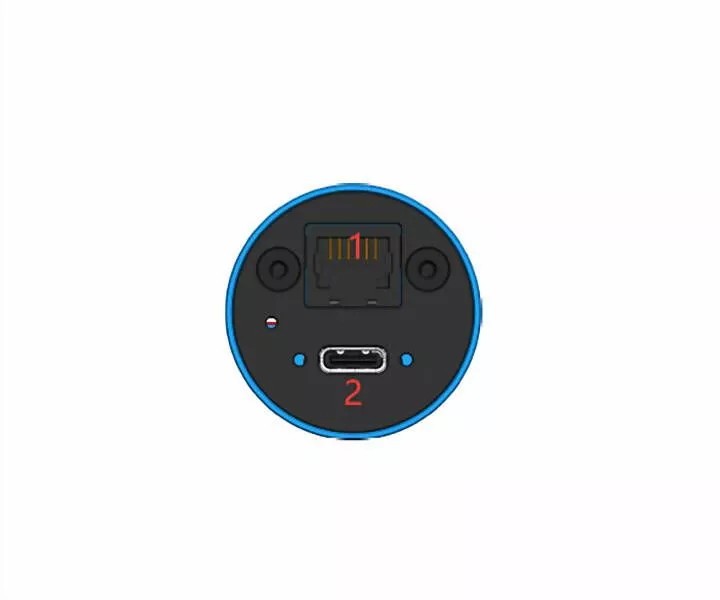

Connection:	USB2.0, Type C
Bit resolution:	12 bit ADC
Telescope connection:	1.25", M28.5x0.6 and C-mount

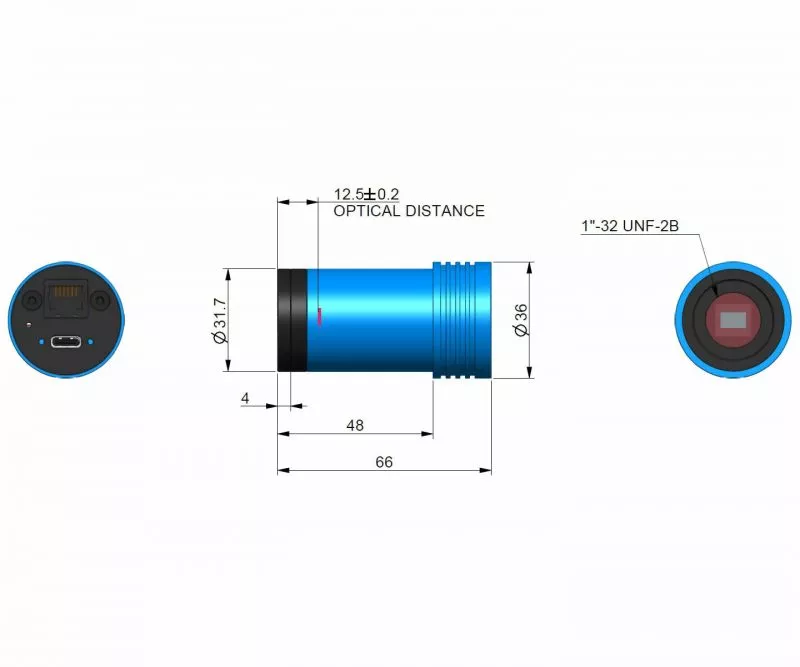

Back focus distance:	8.5 mm without adapter, 12.5 mm with CS adapter, 17.5 mm with C adaptation
Size:	D=37 mm, L=66 mm (with CS connection)
Weight:	70 grams

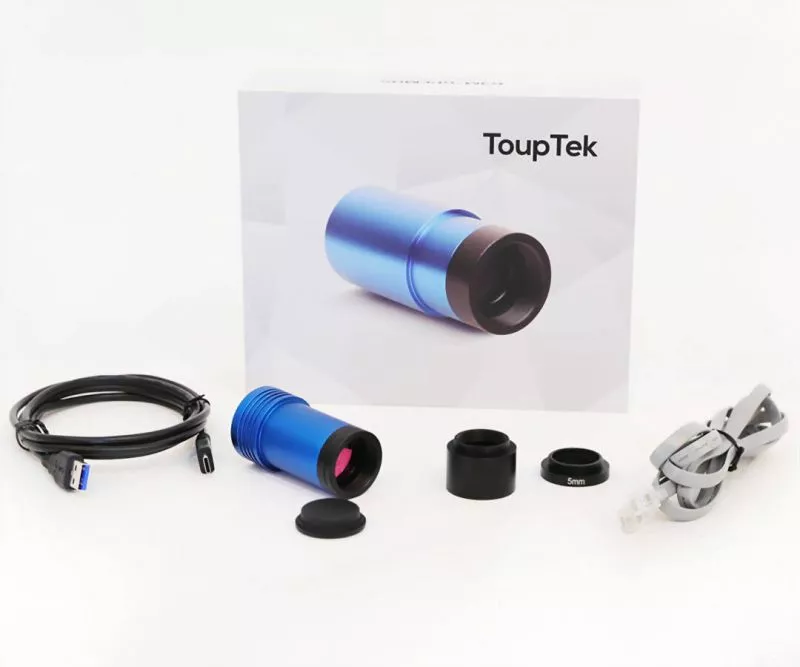

- Gift box L:15 cm W:15 cm H:10 cm (0.8~1.0 kg)
- High-speed USB3.0 A male to C male connectors cable, length 2.0 m
- GPM series camera with CS-mount (inner) and cover
- 1.25 inch nosepiece
- C-mount extender ring (length 5 mm)
- ST4 guiding cable, length 2.0 m

Safety:

Manufacturer / Importeur:	Teleskop-Service Ransburg GmbH
Street:	Von-Myra-Str. 8
ZIP / City:	85599 Parsdorf
Country:	Germany
