Pegasus Astro power and data distributor - an overview

Or: No more tangled cables on the column/sative



Who doesn't know this: in astrophotography, cameras, filter wheels, PCs, focusing motors, dew caps and much more. be supplied with more power and data. There are countless power supplies lying around on the floor; The whole tangle of cables invites you to get tangled up in it.





Pasted Graphic 1.png

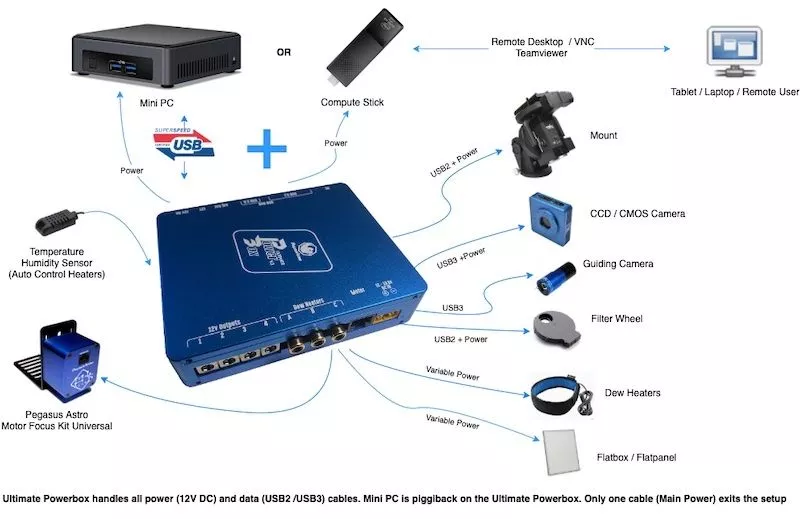

Instead, how about just a power supply cable going to a data/power distribution unit, and from here short cables to the corresponding devices?




Pegasus-Astro has developed very good solutions here:




Pegasus Pocket Powerbox Micro

Pegasus Astro Powerbox Micro

    4 x 12V DC power outputs
    Adjustable output (3, 5, 8, 9, 12 volts)
    2x PWM dew cap outputs
    Ampere measurement

Pegasus Pocket Powerbox Advance Gen2


    4x 12 VDC outputs, 12 A total current
    Adjustable output (3, 5, 8, 9, 12Volt) / 3Amp (can be switched ON/OFF) Powers your DSLR / mirrorless camera
    2 x USB2 ports & 2 x USB3 ports
    Volt/Ampere measurement
    2x PWM dew cap outputs
    Connection for external devices (sensors, motor drivers, etc.)
    Indi / ASCOM / Stand alone operation




Pegasus Ultimate Powerbox v2


    4x 12 VDC outputs, 12 A total current
    1x 12 VDC output, always on, 8 A
    Adjustable output (3, 5, 8, 9, 12Volt) / 3Amp (can be switched ON/OFF) Powers your DSLR / mirrorless camera
    2 x USB2 ports &
    2 x USB3.1 High Speed ​​Ports
    Volt/Ampere measurement
    3x PWM dew cap outputs (The firmware can automatically adjust the PWM outputs by querying the dew point of the environmental sensor.)
    Connection for external devices (sensors, motor drivers, etc.)
    Indi / ASCOM / Stand alone operation

full support of N.I.N.A, Stellarmate and Astroberry
    Native plugin support for TheSkyX






WHY SHOULD I BUY THESE DISTRIBUTORS WHEN I CAN BUY SIMILAR HUBS WITH 7 OR EVEN 10 PORTS ON AMAZON FOR ABOUT $50?



    Each port delivers a current of up to 8 amps. Other hubs cannot support this.
    Switchable USB ports. Each USB port can be controlled and turned on and off by our standalone software. (power + data). Other hubs cannot do this.
    Pegasus supports INDI/ASCOM switches. You can control the hub via your image editing software.
    Supports industrial-grade temperatures. You won't find a hub that can operate below 0 degrees Celsius (32 Fahrenheit).
    If you check the specifications of each hub, you will find that the operating temperature is between 0 and 40 degrees Celsius. All of these hubs are designed to operate in your cozy room and not for use in the mountains or outdoors where the temperature can drop quickly, especially on winter nights. If your hub works below this temperature, it's pure luck.
