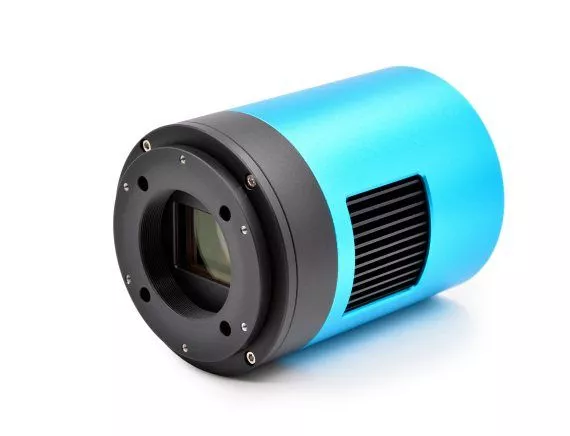

Touptek ATR3CMOS08300KPA cooled IMX585 OSC / color camera

The ATR3CMOS08300KPA has a small, interesting sensor with very low readout noise and large full well capacity.

A small but fine all-rounder that is suitable for recordings within our solar system (sun/moon/planets) with up to 45FPS (8Bit) / 22 FPS (16Bit) but also for long exposures of deep sky objects thanks to its cooling.

An improved seal and the regulated window heating ensure a sensor free of ice or condensation.

IR UV Cut installed, telescope side with T2 connection, 17.5mm back focus from the T2 thread. Includes adapter to M48 with a back focus of 55mm in total (Adaper ring M48 to T2 also included)

-IMX585 Color CMOS Sensor
-Resolution: 3840*2160
-2.9um Square Pixels
-1/1.2'' optical format
-12-bit ADC, 16bit@ HDR mode
-45fps at 8bit mode
-Up to 40ke- full well capacity
-512 Mbytes of memory
-Precise temperature regulation
-Zero Amp Glow
-Readout Noise: 0.55 e- (HCG mode)
-SNR Max: 41.2 dB (Low Noise Mode)
-Dynamic Range: 85.6 dB (HDR mode)
-35°C below ambient under short exposure/ -47°C under long exposure time(> 1s)
