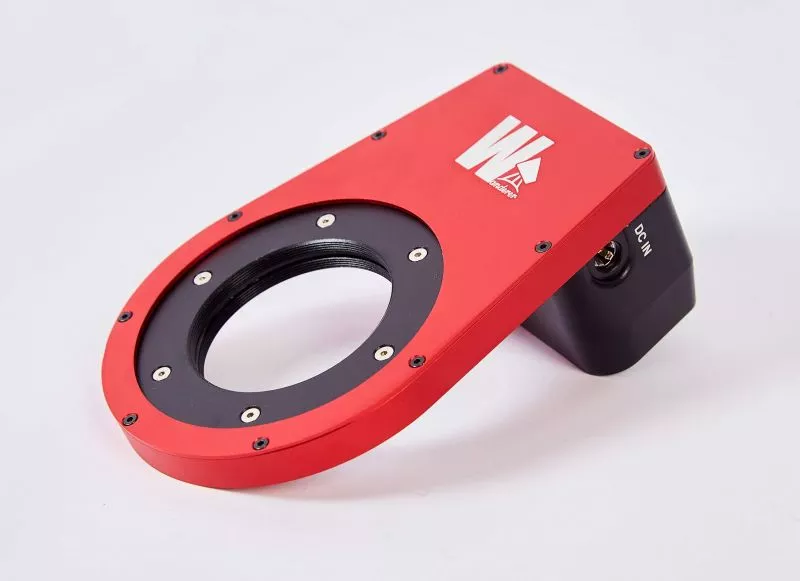

WandererRotator Mini V2 M54

Technical Data:
Mechanical connection:    M54x0,75 female thread (both sides)
max. load capacity:    5 Nm
Thickness:    10 mm
Weight:    420 g
Rotation speed:    maximum 4.5 degrees/sec.
Resolution:    0.01 degree
ASCOM support:    Yes
Dimensions:    172x89x34 mm
Clear aperture:    54 mm (2.1 inches)
Connection:    USB type B

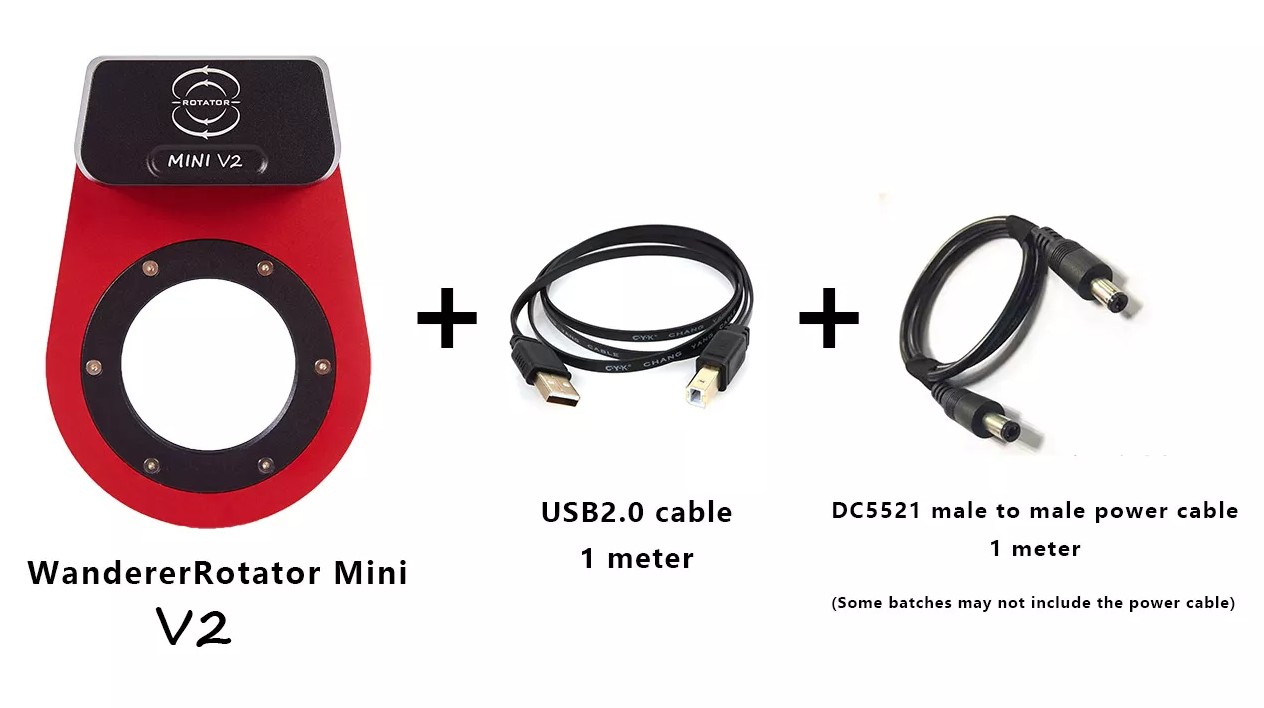

Package content:



Product descrition:


*Compared with the Mini V1, a 12V power input port is added to improve the stability of power supply
(Note: 12V power supply is mandatory)




High Payload
Maximum payload of 5 Nm*
*The torque generated by the imaging equipment to the rotator must be less than 5 Nm. For example, if the center of gravity of the equipment is 10cm away from the rotator, the maximum weight of the equipment should not exceed 5kg.




Fast and Accurate
Rotation rate: 4.5 degrees/sec
Angular resolution: 0.01 degree



Ultra lightweight
Thanks to the excellent mechanical design and the use of high-strength materials, it weighs only 420g.



Ultra low-profile
At just 10mm thick, the thinnest M54 rotator yet, this is a marvel of design and manufacturing.
*Please note that the length of the M54 male thread on either side must not exceed 5mm. The sum of the lengths of the M54 male threads on both sides must not equal 10mm. If exceeded, use a washer to reduce the effective thread length.



Zero flexure guaranteed
Patented magnetic design
Absolute zero flexure is guaranteed at any PA



De-rotation
For users of altazimuth and Dobson telescopes



Connect 6 devices simultaneously!
The ASCOM driver supports simultaneous and independent connection of up to 6 WandererRotators of any model!
