Produktbeschreibung

Avalon M-DUE - StarGo2 Pro

Die deutsche Übersetzung folgt noch, bitte ein wenig Geduld...

Bitte für eine Beratung zu dieser Montierung kontaktieren. So können Sie von unserer Erfahrung vor dem Kauf profitieren.

Bei jeder Montierung wird das Lagerspiel überprüft und eingestellt!


M-due, Single Fork Equatorial Mount, with High Resolution ABSOLUTE ENCODER, StarGO2 Pro controller. Second Telescope Adjustable System with predisposition for second saddle.

CONTENT PACKAGE

  • Mount Head with StarGo2 Pro

  • T-Pod Plate
  • Second Telescope Adjustable System
  • StarGo2 Pro control Keypad
  • Keypad connection cable
  • Metric Allen Wrench key set
  • 0,5 kg Counterweight with support shaft
  • Losmandy clamp
  • USB flash drive with manuals and software
  • Polar finder
  • Attachment screws
  • Documentation, warranty certificate
  • Power Supply
Description

The M-due Fast Reverse is a single arm fork mount devoted to deepsky imaging in the capacity range up to 25 kg in single telescope configuration and up to 32 kg in double telescope configuration.

The M-due design put together the M-uno and the M-zero mounts concepts, adding two very important features as the High Resolution ABSOLUTE ENCODER and the new StarGo2 Pro controller.

A robust mount base, an high payload capability and more then 6 positions available for the DEC arm on the RA axis. In this way it is possible to achieve the best balancing by using as less as counterweight possible.

HIGH RESOLUTION ABSOLUTE ENCODER ON BOTH RA/DEC AXIS

With the M-due mount, the Avalon Instruments exclusive Belt Drive System has been now improved by adding High Resolution ABSOLUTE ENCODER.

Slew Speed:  up to 10° / sec

StarGo2 Pro

The mount is controlled by the new StarGo2 Pro, the controller comes with the following features:

  • Raspberry pi 4 based
  • Compatible with all the Linux astronomical software (Kstar, Stellarium, Carte du Ciel etc.)
  • 4” Touch Screen Display on StarGo2 Pro case embedded
  • Connection mode:
    - HARDWARE CONNECTION
    - Mode 1: StarGo2 Pro as Hotspot
    - Mode 2: StarGo2 Pro connected to your network, via LAN or Wi-Fi
    - SOFTWARE CONNECTION
    - Desktop remote connection to the StarGo2 Pro Operative System - Raspberry Pi4 - for a full setup control - mount, CCD cameras, focuser etc.
    - Multiplatform Web App, for the system network connection and the mount function management
  • Standard Raspberry pi4 Input/Output:
    - 1 audio port, 2 USB 2.0 ports.
    - 2 USB 3.0 ports, 1 Ethernet port
    - 2 x 12 volt power out ports
    - 1 x variable 6 – 12 volts power out port
    - 1 x Keypad
    - Aux 1 RJ port with ASCOM and INDI driver ready to be used
  • SkySafari direct connection
  • Driver:
    - INDI (Linux, Mac O.S.)
    - ASCOM Alpaca (Windowd O.S.)

Finally a real All in one astrophotografic setup management system for:

Mount - CCD cameras - Focuser

Dual Dec fully rotating axis

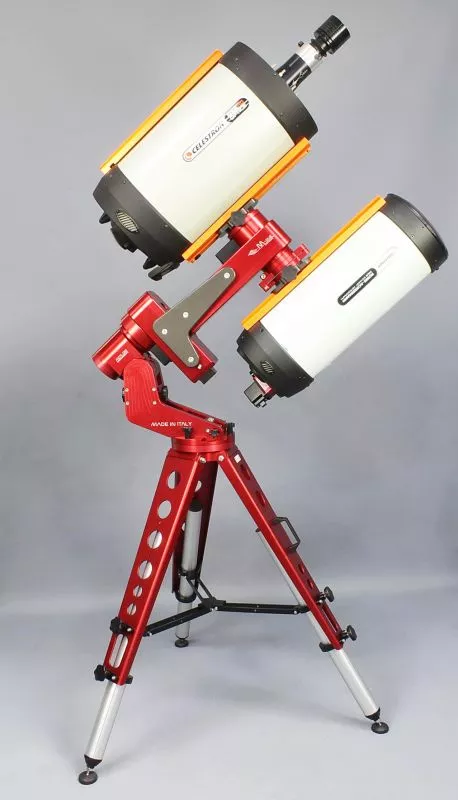

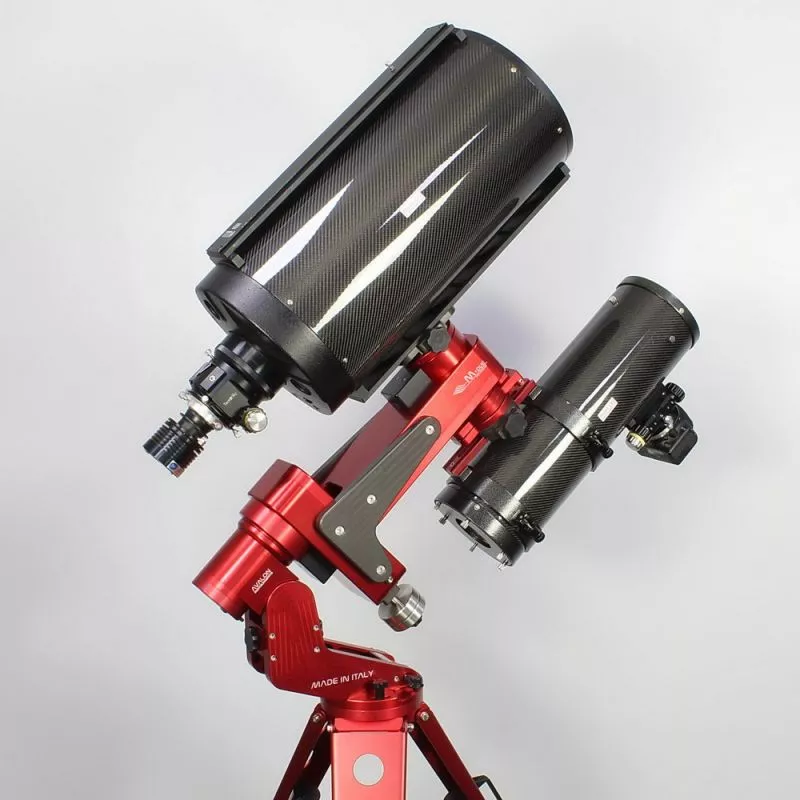

The M-Due comes with a fully rotating declination axis, which allows the use of a second clamp to hold a second OTA

StarGo2 Pro LCD Touchscreen Web App Screenshot. Click on the image below to watch more StarGo2 Pro menu screenshots.

stargo2 pro screen 01

M-due video



Technical DataTable
TypeSingle arm fork equatorial mount
EncoderHigh Resolution Absolute Encoder
Weight22,4 kg
Capacity25 kg single telescope setup, 32 kg double telescope setup.
Transmission systemAll belts drive system based on four stages reducer.
All the movements are on ball bearings. No maintenance and no backlash system.
Pulleys made with special polymer fiberglass charged and high precision toothed belts.
Construction MaterialAnodized aluminium, worked out from single blocks with high precision 5 axis CNC machines
Slew Speedup to 10° / sec
Polar FinderSkywatcher model
GOTO systemStarGo2 Pro
Counterweight barDovetail 3" clamp
Counterweight0,5 kg counterweight
Scope plateLosmandy, 3" (75mm), dovetail, single knob with 2 tightening points
Warranty2 years from the purchase date, extended to 5 years for the transmission system
