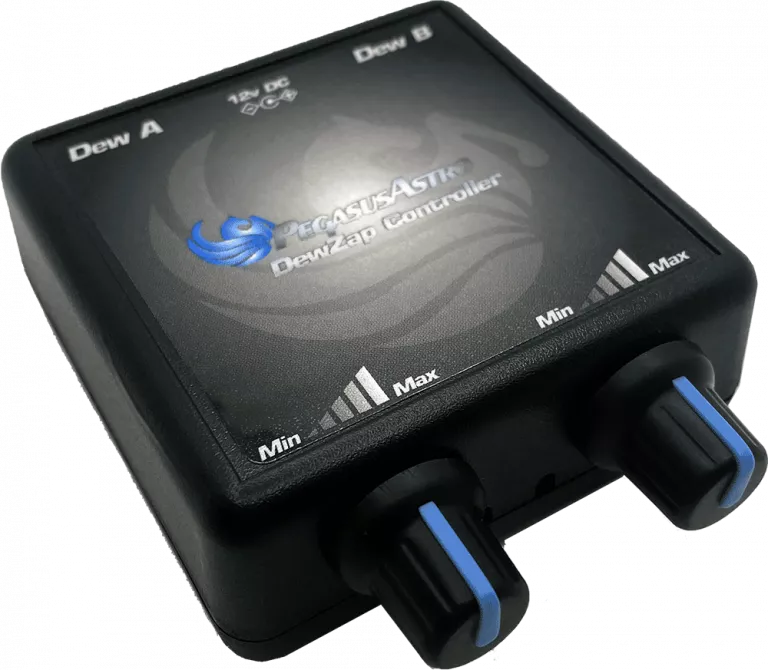

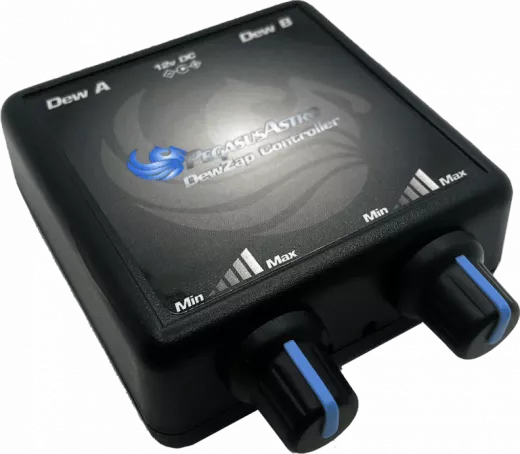

DewZap
DewZap is our Dual Channel Dew Heater Controller. Simple to use, powerful and very compact is your best companion against the dew during long astro – nights.
Two individual digital outputs for dew strips
DewZap has two individual digital RCA outputs. You can control its output by turning each knob on the top of the controller.
Pulse Width Modulation Duty Cycle Control
Controller was built with modern digital electronics and fully supports duty cycle (PWM) control.
Zero to 100% heater control
Knobs can drive Pulse Width Modulation duty cycle from zero to 100%
Ten (10) amps current capacity (5 amps per channel)
Powerful mosfets on each output can provide easily 5Amps per channel. There are no voltage drops there.
Reverse polarity protected.
Device is protected from reverse polarity.
LED Operation indicator
A led indicator in front of the faceplate ensures controller is operational.
Detachable fused power cord
A detachable 1.8m fused power cord (1.8m length) is provided. The fuse is at 8 Amps.
In the box
- DewZap Controller
- Cigarette Lighter Power Cord (1.8m length) – 8A slow fused
Technical Specifications
| Supply Voltage | 12V DC Operation |
| Output | Same input voltage in Pulse Width Modulation Duty Cycle |
| Channels | Dual (2) |
| Power Outlets | 2 x RCA |
| Power Input Connector | 2.1mm Centre Positive Socket |
| Dimensions | 66 mm x 66 mm x 28 mm |
| Detachable fused power cord | A Slow fuse is at 8Amps, located on tip. Cord has 1.8m length |
