TS-Optics ToupTek G3M178C Color Planetary Camera and Autoguider - Sensor D= 8.92 mm

For a larger view click on the thumbnail

Our previous price 349,00 EUR Now only 339,00 EURyou save 3% / 10,00 EUR

19 % VAT incl. excl. Shipping costs

Add to cartAdd to cart

Financing from 21,00 EUR per month
more information about installment purchase

Shipping time: while stocks last

Product no.: TS178CMINI

Reviews: (0)

MPN: TS178CMINI

• Print datasheet

• Details
• More images

Products description

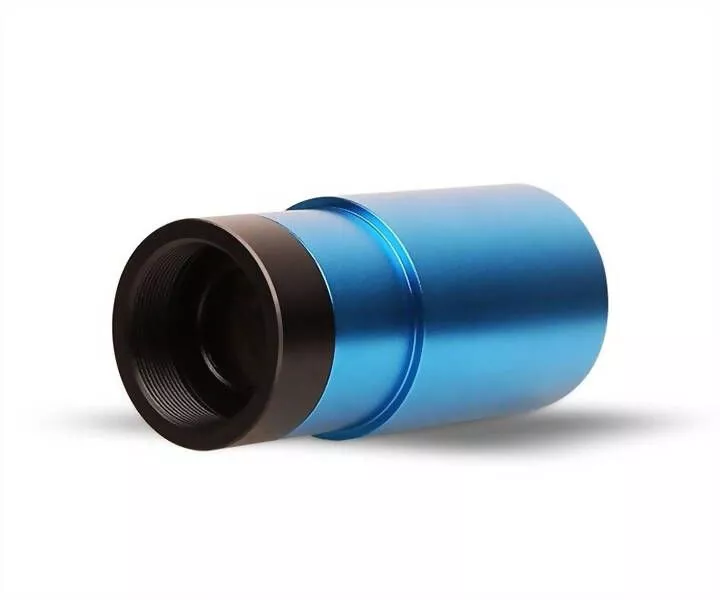

TS-Optics ToupTek G3M178C Color Planetary Camera and Autoguider - Sensor D= 8.92 mm

The Sony IMX178C color sensor offers a high resolution, the camera is very well suited for moon, planets and also autoguiding.

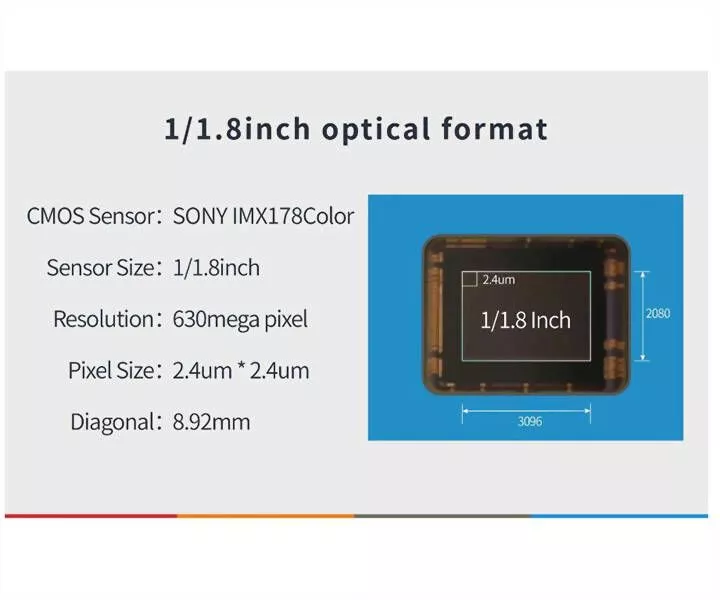

Sony 1/1.8" CMOS color sensor IMX178 with 6.2 megapixel resolution

Sensor size 7.4 x 5 mm - diagonal 8.92 mm

Very high resolution due to 2.4 µm pixels

High sensitivity due to 81 % QE

USB3.0 interface

Convenient 1.25" body, you can insert the camera into the telescope or off-axis guider like an eyepiece

At only 70 grams, the camera weighs no more than a 1.25" eyepiece

Almost 60 frames per second, therefore very good to use for EAA

Protective glass IR cut filter is built in

Extensive scope of delivery, such as USB and ST4 cable, C-mount adapter, 1.25" extension tube


ToupTek TS178 mini color astro camera and autoguider

The camera is equipped with a large 1/1.8" sensor. The new SONY STARVIS and Exmor-R technology produces very low-noise images with high sensitivity. Added to this is a very high resolution thanks to particularly small pixels. The result is a very versatile camera that delivers excellent results for a wide range of requirements. Among other things, the camera is well suited for:

Moon and planetary photography, due to the small pixels you only need a moderate or often no Barlow lens at all

Solar photography with a suitable filter - 500 mm focal length show the sun (or moon) completely

EAA (Electronically Assisted Astronomy) of these objects by a suitable frame rate

Autoguiding - a guide star is always found

Deep-sky photography, the high sensitivity of the sensor allows nebulae and galaxies to be photographed with short exposure times

The practical 1.25" body:
The camera is supplied in a compact 1.25" housing. This makes it easy to connect to the telescope. The camera is inserted into the focuser like an eyepiece and focused. You can start astrophotography immediately. In addition, the housing is equipped with a female C-mount thread on the telescope side. This allows you to screw the camera to the telescope or a camera lens.

Drivers and online user manuals
The manufacturer ToupTek offers current drivers and a user manual on its website. Here are the links:
Manual
Drivers

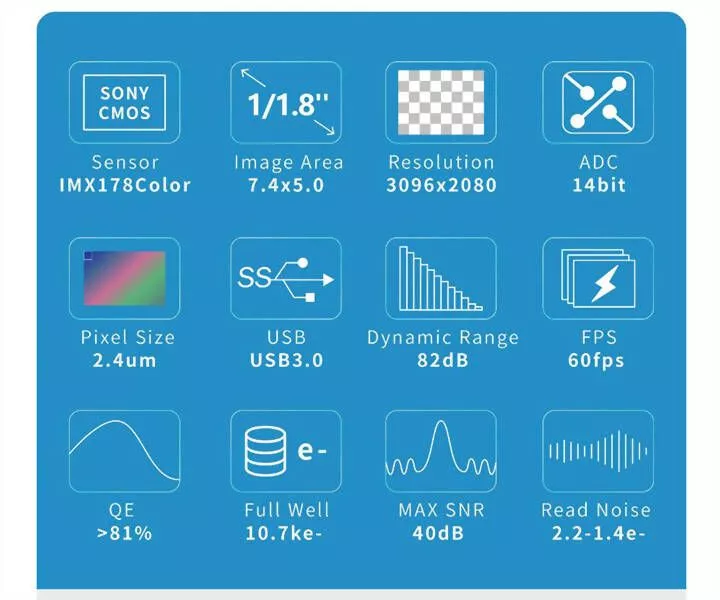

Sensor:	Sony IMC178 color sensor
Resolution:	6.2 megapixel, 3040*2048
Pixel size:	2.4 µm
Sensor size:	7.4 x 5 mm - diagonal 8.92 mm
QE:	81 %
Exposure time:	244 µs - 1000 s
Frame rate:	approx. 59 fps at full resolution
ST4 guider port:	yes
Protection window:	IR cut filter
Connection:	USB3.0
Bit resolution:	14 bit ADC

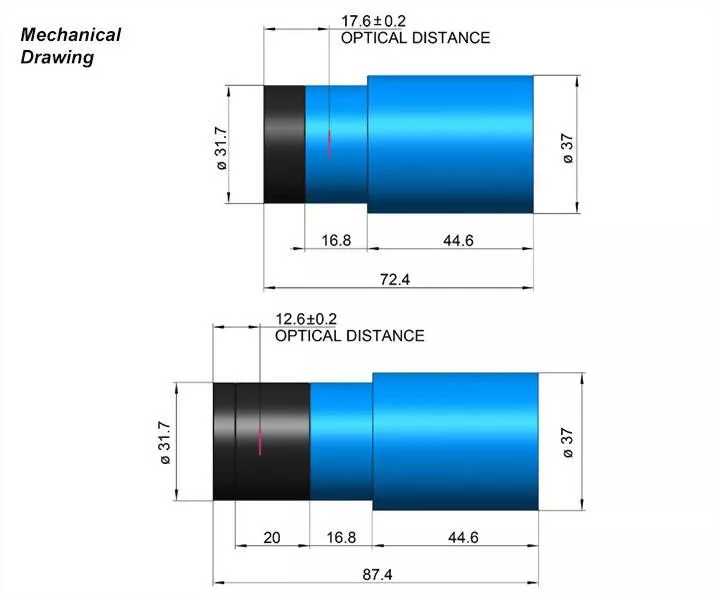

Telescope connection:	1.25", M28.5x0.6 and C-mount
Size:	35 x 62 mm
Weight:	70 grams

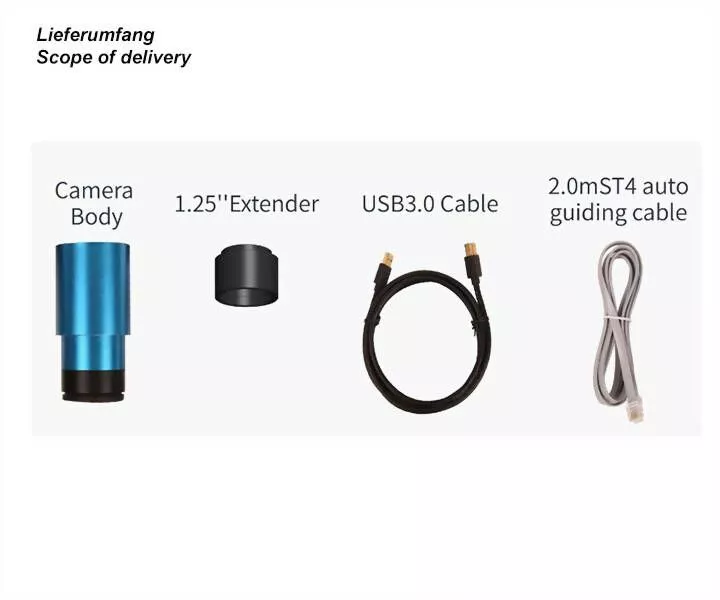

:	Camera USB3.0 cable ST4 cable Adapter M28.5 - C 1.25" extension tube Dust cap

This Product was added to our catalogue on 25/03/2024.
