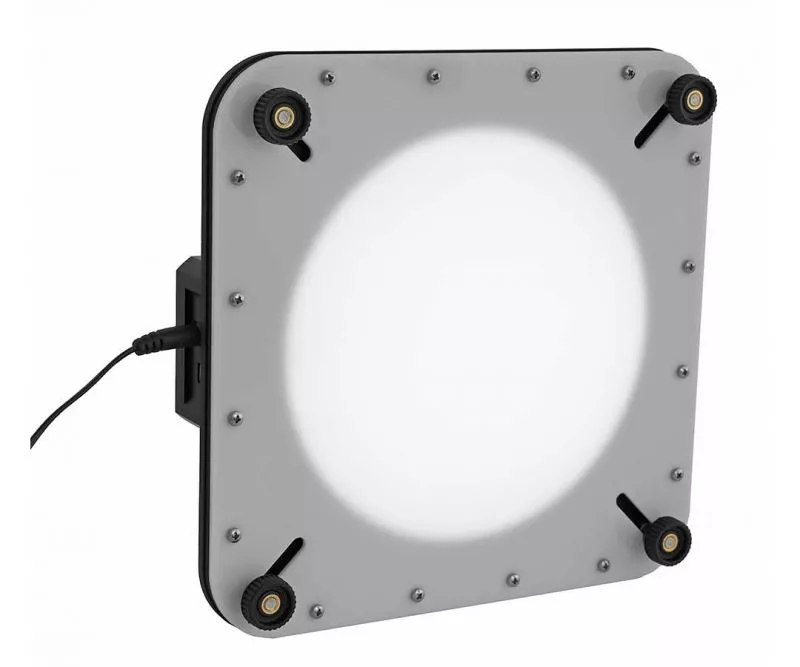

TS Premium LED Flatfield Generator dimmable up to 160mm USB connection

These flatfield generators are also available in 210mm, 260mm and 320mm.


Flatfield box from Telescope Service for perfect astrophotos with the latest LED technology and adjustable brightness - for astrophotography

♦ 160 mm fully and evenly illuminated area - more evenly than with EL films

♦ Variable adjustment for attachment diameters from 179 - 222 mm

♦ The generator holds the telescope at practically any inclination; you don't need to swing the telescope to the zenith for flats

♦ LED technology creates a color-neutral and pure white image for very good flat images even with color cameras

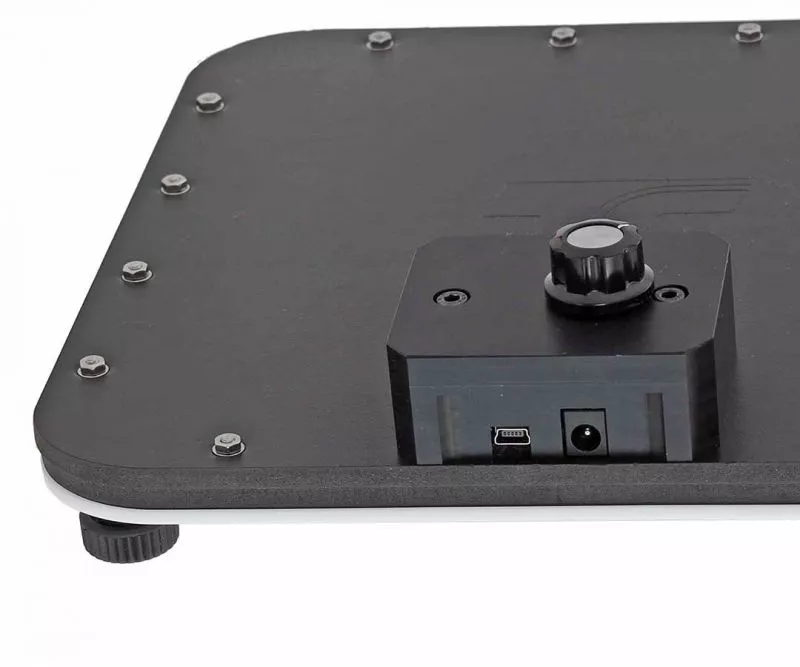

♦ With built-in dimmer for flexible brightness control - therefore also suitable for cameras with mechanical shutters

♦ Stand-alone system or complete control via the PC with USB connection - USB cable is included

♦ Also ideal for remote use

♦ 12V power connection - matching power supply and cable are available

♦ High-quality workmanship and robust external surfaces guarantee longevity

♦ The flatfield box can be perfectly adapted to your telescope using four adjustable plastic knurled screws on the edge.



TS USB flatfield box with neutral white LED light, dimmable:

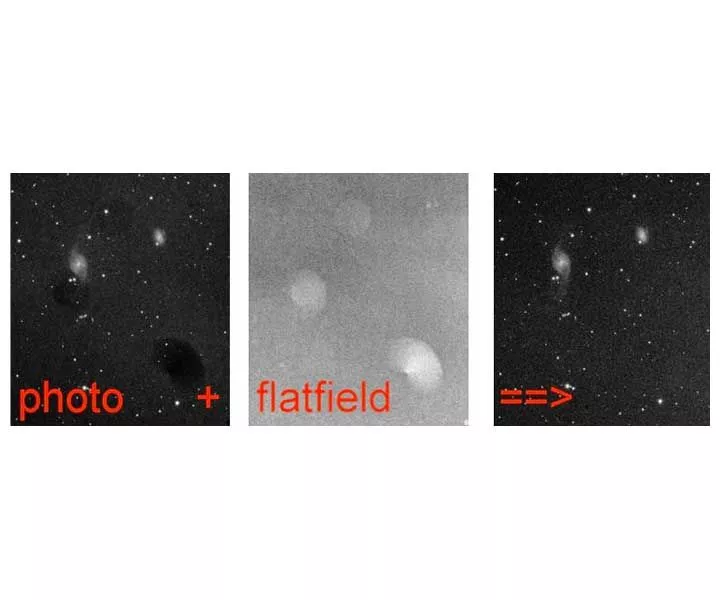

With a flatfield image you can compensate for uneven illumination of the optics (vignetting) as well as shadows on the sensor caused by dust grains. The shot will be more uniform and this will allow you to significantly enhance the subject and the sky background will remain uniform. The result is simply better astrophotos with any telescope or camera lens.

The advantage of LED technology:

♦ LED flatfield generators deliver a color-neutral image; the individual color channels are uniformly strong. This makes the TS-Optics Premium Flatfield generators not only suitable for monochrome but also for color cameras.

♦ The illumination of the TS-Optics LED flatfield box is very uniform; even with low light intensity, the flatfield generator means that no image artifacts appear in the work.

♦ By controlling the brightness, longer but also very short exposure times can be achieved. This makes the flatfield generator suitable for all cameras, including those with a mechanical shutter, such as a DSLR. With a mechanical shutter, we recommend at least 2 seconds exposure time.

♦ The LEDs do not flicker, which means that very short exposure times with reproducible results are possible.

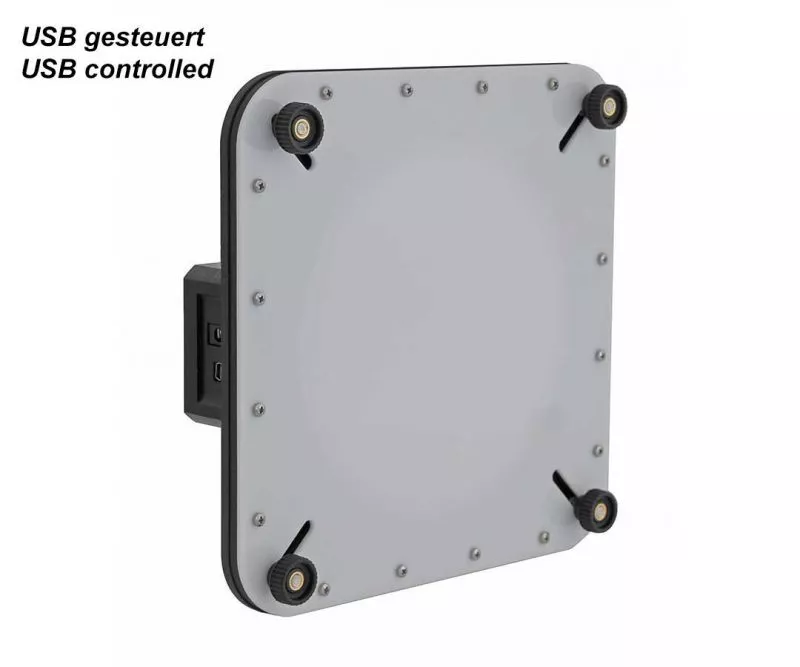

Stand-alone operation or complete control via computer

The TS Premium Flatfieldbox works independently of the computer. You only need a 12V power supply. Matching cables and power supplies are linked in the accessories section. Alternatively, you can also control the generator remotely via the computer. This makes operation easier, enables REMOTE use and produces reproducible results. A suitable driver for Windows is included in the scope of delivery.

The computer connection allows you to control your astrophotography, including the FLATS, using suitable software, such as the APT.

Link to APT Astro Photography Tool Software - Control your astro photography


Lighting: Neutral white LEDs
Usable diameter: 160 mm
Suitable for attachment diameter: 179 - 222 mm, infinitely adjustable
Material: Solid metal construction - the box is screwed together
Power supply: 12 V (5.5x2.1 socket)

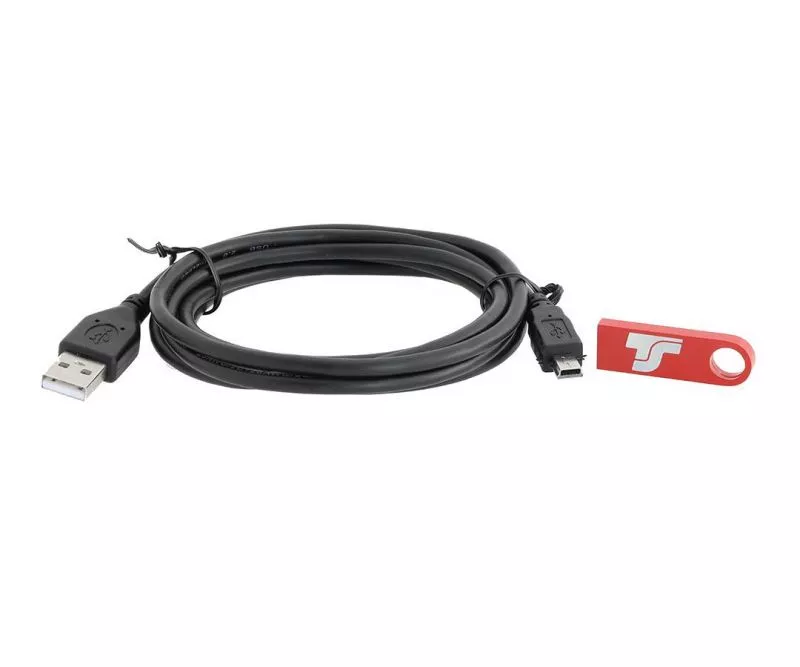

♦ TS Flatfield Box
♦ USB/USB mini cable
♦ USB memory with driver
♦ Instruction manual
