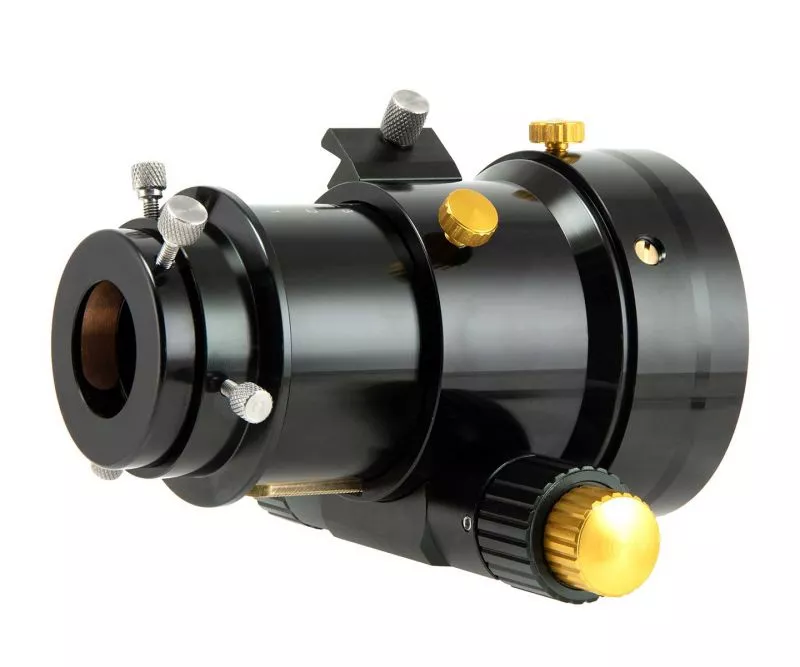

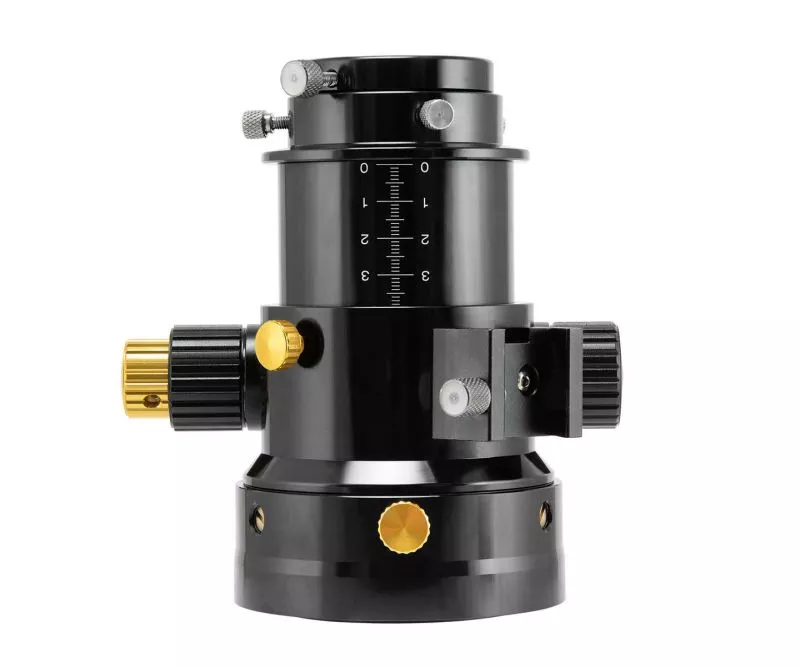

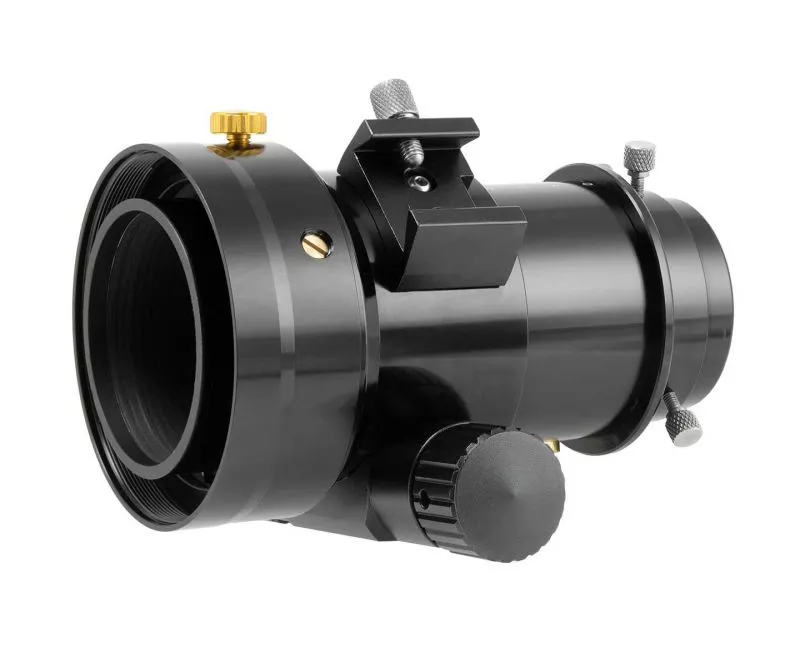

TS 2.5" rack and pinion eyepiece focuser OAZ with M90x1 and 360° rotation for e.g. RC telescope

The focuser with rack and pinion adjustment is designed for telescope DIY and upgrades.

Load capacity up to 4 kg
Ideal for astrophotography
Connection thread on the telescope side: M90x1 female thread with 360° rotation
Connection on the eyepiece side: 2" and 1.25" barrel with ring clamp and M63x1 female thread
Shortest distance from the M90x1 female thread to the 2" barrel: 108 mm
Shortest distance from the M90x1 female thread to the M63x1 connection thread: 84 mm
Adjustment range of the drawtube: 55 mm
The drawtube and adjustment can be clamped separately
10x micro-speed reduction enables highly precise focusing for astrophotography
Includes finderscope shoe for standard finderscope mounts
Motorized focus is retrofittable

TS 2.5" rack and pinion focuser for telescope DIY and telescope upgrades
This focuser is superior to conventional Crayford focusers because the bearings and adjustment are decoupled from each other. This allows for sensitive adjustment, even at maximum load, when properly mounted.

The rack-and-pinion adjustment:
A conventional Crayford focuser works with contact pressure. The lighter the pressure, the smoother the extension, although there is always a risk of slippage because adjustment and bearing are combined. This focuser is completely different:

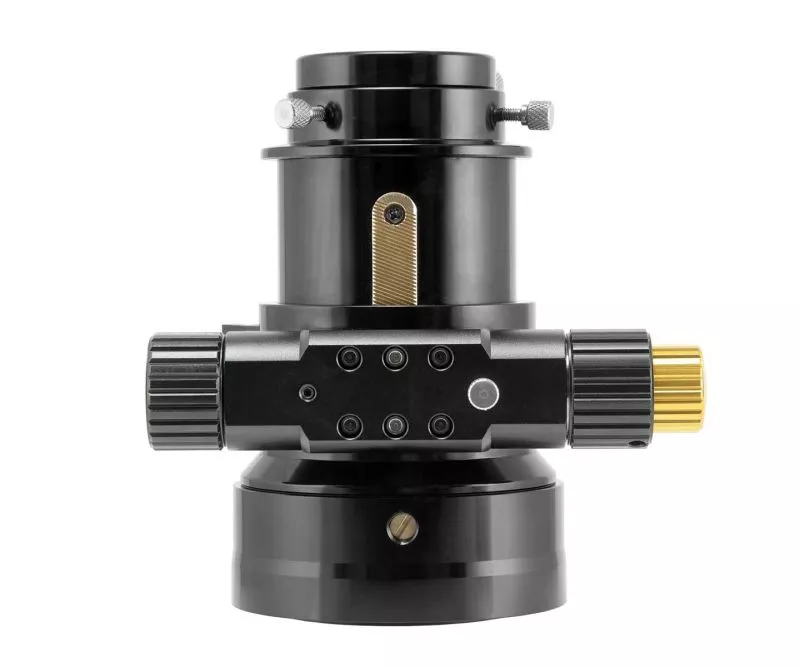

The drawtube is fixedly mounted via the plain bearing. The bearing is optimized to ensure maximum rigidity. The adjustment of the drawtube is achieved via a helical gear rack. The advantage is absolutely smooth adjustment.

The clamping of the drawtube position is also optimized. There is no clamping screw simply pressing on the drawtube; instead, the position of the adjustment is fixed. This ensures 100% focus.

Easy adaptation to your telescope via the M90x1 connection thread:
The focuser has an M90x1 female thread on the telescope side. Additionally, you can rotate the entire focuser 360° to always maintain a comfortable focusing position. We are also happy to manufacture custom adapters for your telescope. Please note, however, that the free opening on the focuser side of your telescope must be at least 74 mm. This is the diameter of the drawtube with the rack and pinion.

Focuser type: Rack & Pinion
Load capacity: 4 kg
Connection thread on the telescope side: M90x1 female thread, 12 mm deep
Connection on the eyepiece side: 2", 1.25" and M63x1 female thread
Shortest height from the M90 thread connection to the 2": 108 mm
Shortest height from the M90 thread connection to the M63x1 female thread: 84 mm
Inner diameter of the drawtube: 60 mm
Outer diameter of the drawtube: 67 mm
Adjustment range: 55 mm
Weight: 1240 g

2.5" eyepiece focuser
M90 telescope connection adapter with 360° rotation
2" adapter with clamp ring for the M63 connection thread
1.25" plug-in adapter with clamp ring and 2" filter thread
