TS-Optics ToupTek Color Camera and Autoguider - D=6.46 mm Sensor

For a larger view click on the thumbnail

Our previous price 249,00 EUR Now only 209,00 EURyou save 16% / 40,00 EUR

19 % VAT incl. excl. Shipping costs

Add to cartAdd to cart

Financing from 23,00 EUR per month
more information about installment purchase

Shipping time: In stock + testing

Product no.: TS327CMINI

Reviews: (0)

MPN: TS327CMINI

• Print datasheet

• Details
• More images
• Customer-tip

Products description

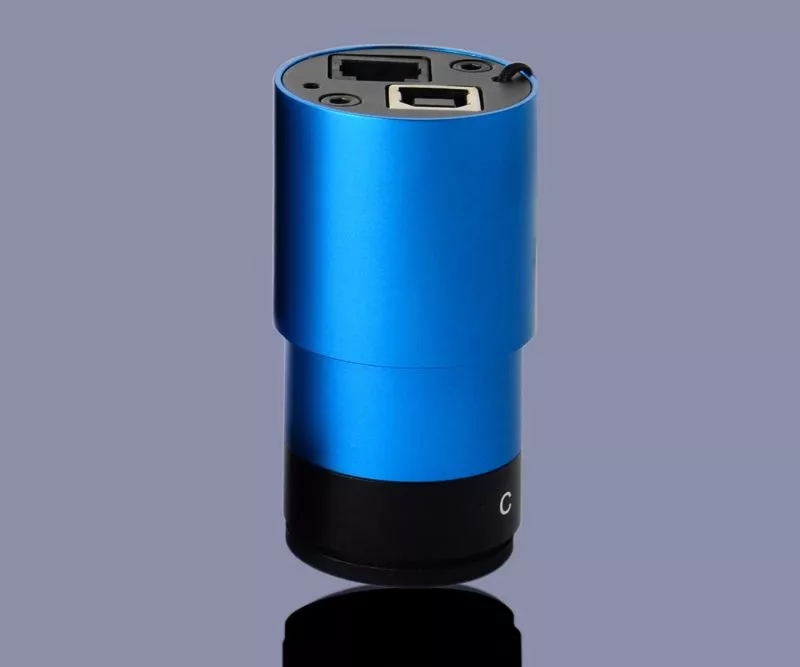

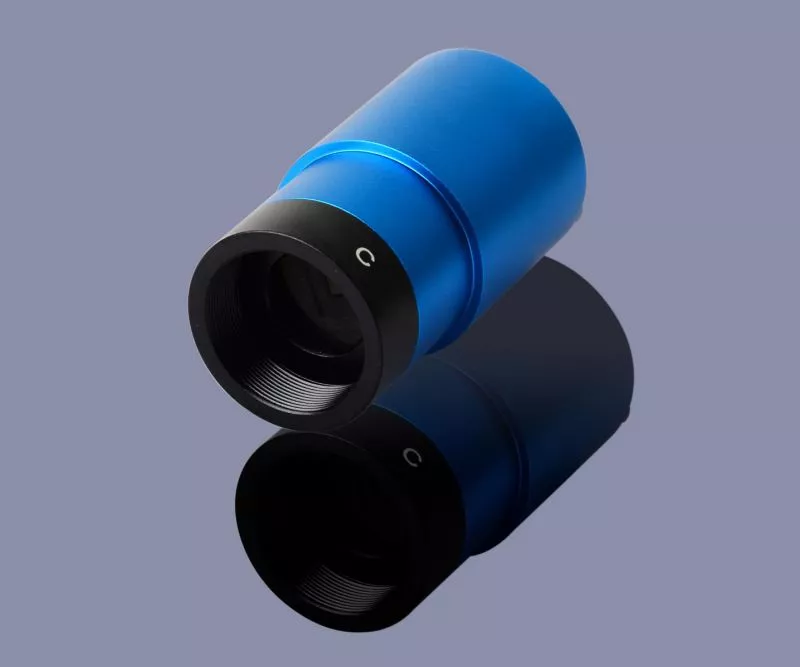

TS-Optics ToupTek Color Camera and Autoguider - D=6.46 mm Sensor

ToupTek planetary camera and autoguider in a compact 1.25" housing with Sony IMX327 color sensor with high resolution.


CMOS color sensor IMX327 from Sony with a high QE - always find a guide star

Pixel size 2.9 µm - allows you to guide large telescopes with small guiding scopes and to use finder guiding

Sensor size 5.6 x 3.1 mm

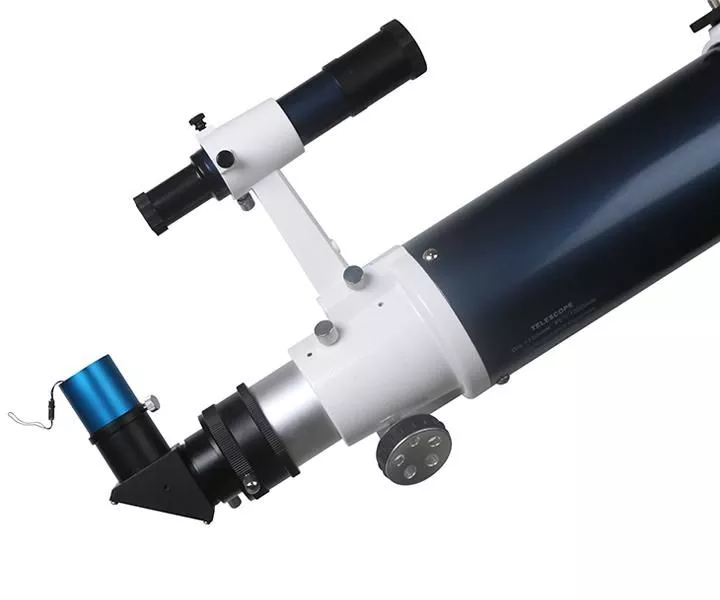

Practical 1.25" body - you can insert the autoguider / camera like an eyepiece into the guiding scope, finder or off axis guider.

A true lightweight with only 70 grams and no bigger than a 1.25" eyepiece

Extensive scope of delivery: USB cable, ST4 autoguiding cable, C mount adapter and 1.25" extension tube

You can also use the camera as a high-quality lunar and planetary camera. Due to the sensitive sensor even images of deep sky objects are possible.

Incl. adapter to C thread for the connection of industrial camera lenses

The GP702000B is a very good autoguider and much more. The modern Sony IMX327 color sensor convinces with a high quantum efficiency, which simplifies guide star search and ensures short exposure times for planetary images. Another special feature is the extremely high resolution due to 2.9 µm pixels. This makes this camera very interesting for astrophotography.


The advantages of the GP702000B as an autoguider

You always find a guide star, even with an off-axis guider - guaranteed!

With the high resolution, you can easily guide telescopes of up to 11" aperture with a 50 mm finder - guiding with the finder becomes possible.

The practical 1.25" housing makes adaption easy. Push the camera into the 1.25" receptacle, focus and get started with guiding.

Short working distance from the front surface to the sensor - you can reach focus even with short maximum distances.

With only 70 grams weight, the focuser is almost not loaded.

Of course, ST4 cable and ST4 port are supplied. Connect the camera directly to the autoguiding port of the mount.



The advantages of the GP702000B as an astro camera

Highly sensitive sensor combined with high resolution for ultimate lunar and planetary photographs.

-- Color sensor allows color imaging without complex processing

Camera fits any 1.25" focuser. Clamp the camera like an eyepiece, focus and start astrophotography.

The high sensitivity makes the GP702000B suitable for photographing nebulae and galaxies.

The camera is equipped with a UV/IR cut filter, so you can also take landscape photos without the color balance suffering.


Drivers and Software

ToupTek provides drivers and software for this camera, you can download them here.


Sensor:	1/2.8" CMOS IMX327
Resolution:	2.1 megapixels, 1920x1080
Pixel size:	2.9 µm
Sensor size:	5.6 mm x 3.1 mm
Exposure time:	105 µs - 1000 s
Frame rate at full resolution:	18 fps
ROI:	Supported
ST4 autoguider port:	Yes
Focus distance to sensor:	13 mm
Shutter type:	Rolling shutter
Entry window:	UV/IR cut filter
Operating system compatibility:	Mac, Windows, Linux
Interface:	USB 2.0
Bit rate:	12 bit output (12 bit ADC)
Telescope connector:	1.25" / M28.5x0.6
Operating temperature:	-10 °C - +50 °C
Relative humidity range use:	30 % - 80 %
Storage temperature:	-20 °C - +60 °C
Relative humidity range storage:	10 % - 60 %.

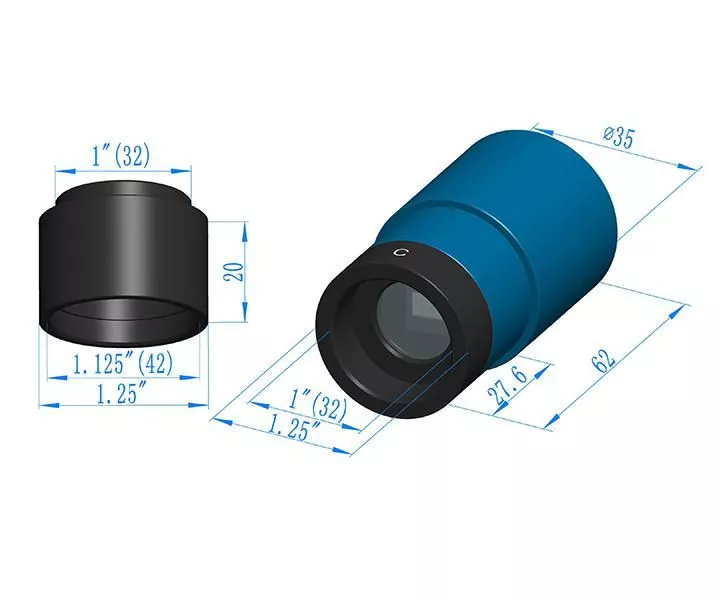

Size:	D=35 mm x 62 mm
Weight:	70 g

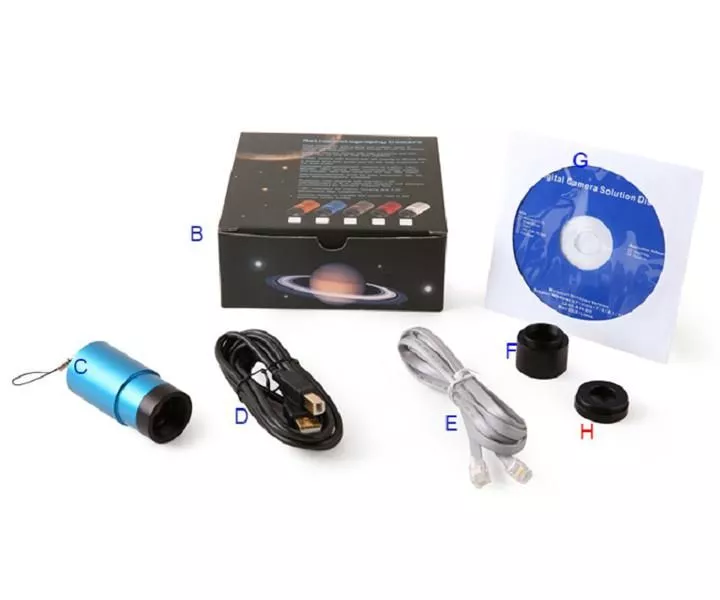

Camera body

USB2.0 cable

ST4 cable

M28.5-C adapter

1.25" extender, length 20 mm

Dust cap
