TS-Optics ToupTek G3M664C Color Planetary Camera and Autoguider - Chip D=9.01 mm

For a larger view click on the thumbnail

Our previous price 349,00 EUR Now only 319,00 EURyou save 9% / 30,00 EUR

19 % VAT incl. excl. Shipping costs

Add to cartAdd to cart

Financing from 20,00 EUR per month
more information about installment purchase

Shipping time: In stock + testing

Product no.: TS664CMINI

Reviews: (0)

MPN: TS664CMINI

• Print datasheet

• Details
• More images

Products description

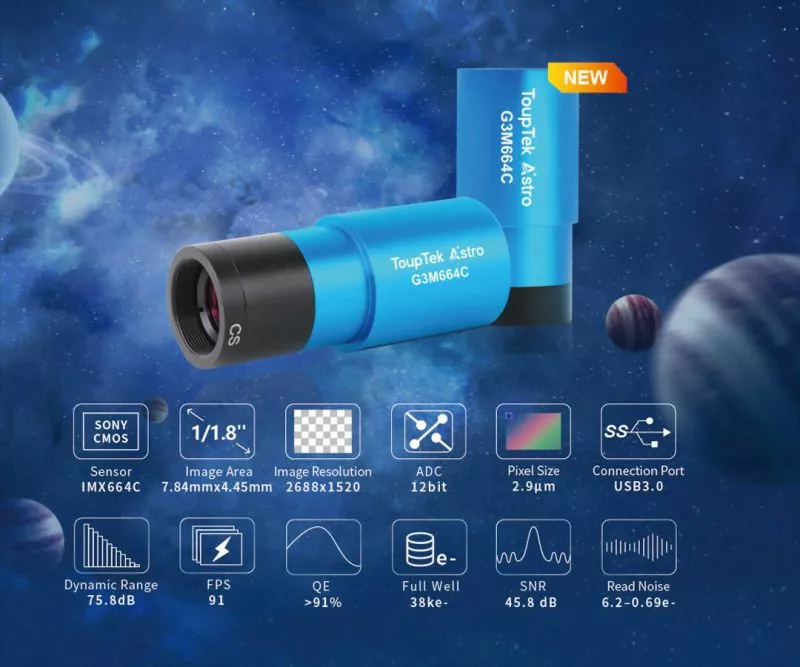

TS-Optics ToupTek G3M664C Color Planetary Camera and Autoguider - Chip D=9.01 mm

The Sony IMX664C color sensor offers a high resolution, the camera is very good for moon, sun and planets and of course ideal as a powerful autoguider for astrophotography.


Sony 1/1.8" CMOS monochrome sensor IMX664C with 4.1 megapixel resolution

Sensor size 7.84 x 4.45 mm - diagonal 9.01 mm

High resolution due to 2.9 µm pixels

Very high sensitivity due to >91 % QE

USB3.0 interface

Practical 1.25" body, you can insert the camera into the telescope or off-axis guider like an eyepiece

At only 70 grams, the camera weighs no more than a 1.25" eyepiece

91 frames per second, therefore very good to use for EAA

Extensive scope of delivery, such as USB and ST4 cable, C-mount adapter, 1.25" extension tube


ToupTek TS664CMINI Mini Color Astro Camera and Autoguider

The camera is equipped with a large 1/1.8" sensor. The new SONY STARVIS and Exmor-R technology produces very low-noise images with high sensitivity. Added to this is a very high resolution thanks to particularly small pixels. The result is a very versatile camera that delivers excellent results for a wide range of requirements. Among other things, the camera is well suited for:

Moon and planetary photography, due to the small pixels you only need a moderate or often no Barlow lens at all

Solar photography with a suitable filter - approx. 450 mm focal length, for example with the TSAPO72F6 or TSCFAPO70, show the sun (or moon) completely

EAA (Electronically Assisted Astronomy) of these objects by a suitable frame rate

Autoguiding - a guide star is always found

Deep-sky photography, the high sensitivity of the sensor allows nebulae and galaxies to be photographed with short exposure times

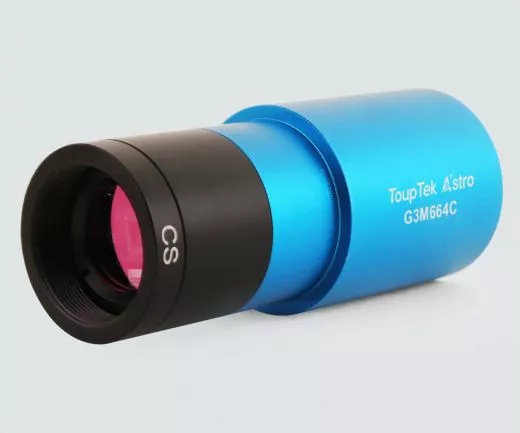

The practical 1.25" body:
The camera is supplied in a compact 1.25" housing. This makes it easy to connect to the telescope. The camera is inserted into the focuser like an eyepiece and focused. You can start astrophotography immediately. In addition, the housing is equipped with a female C-mount thread on the telescope side. This allows you to screw the camera to the telescope or a camera lens.

Drivers and software
The manufacturer ToupTek offers current drivers and software on its website. Here are the links:
Drivers
Software



Sensor:	Sony IMX664C color sensor
Resolution:	4.1 megapixels, 2688*1520 pixels
Pixel size:	2.9 µm
Sensor size:	7.84 x 4.45 mm - diagonal 9.01 mm

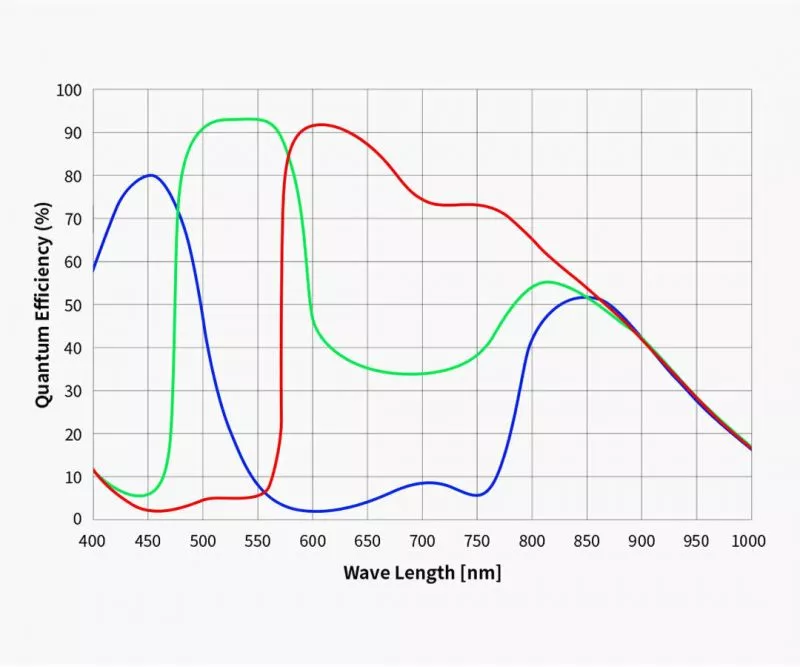

QE:	>91 %
Exposure time:	244 µs - 1000 s
Full-well capacity:	38 ke-
Readout noise:	6.2 to 0.69 e-
Frame rate:	91 frames per second at full resolution

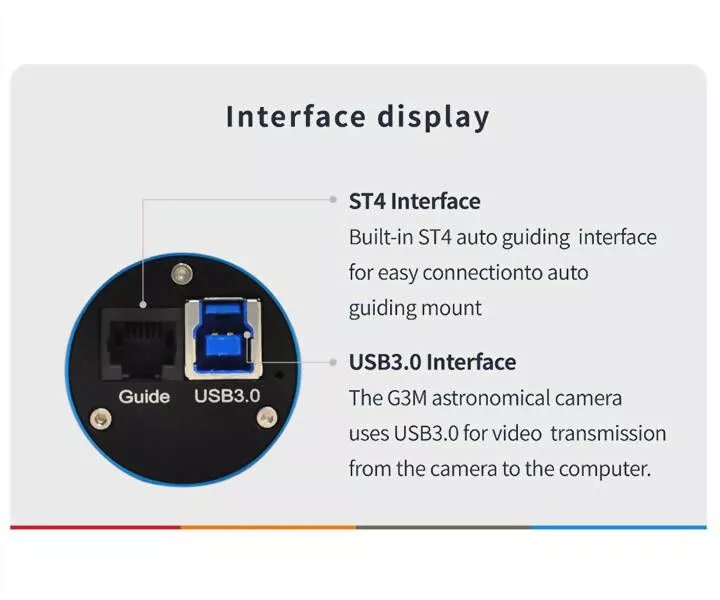

ST4 guider port:	yes
Protection window:	IR cut filter
Connection:	USB3.0
Bit resolution:	12 bit ADC
Telescope connection:	1.25?, M28.5x0.6 and C-mount
Size:	35 x 62 mm
Weight:	70 grams

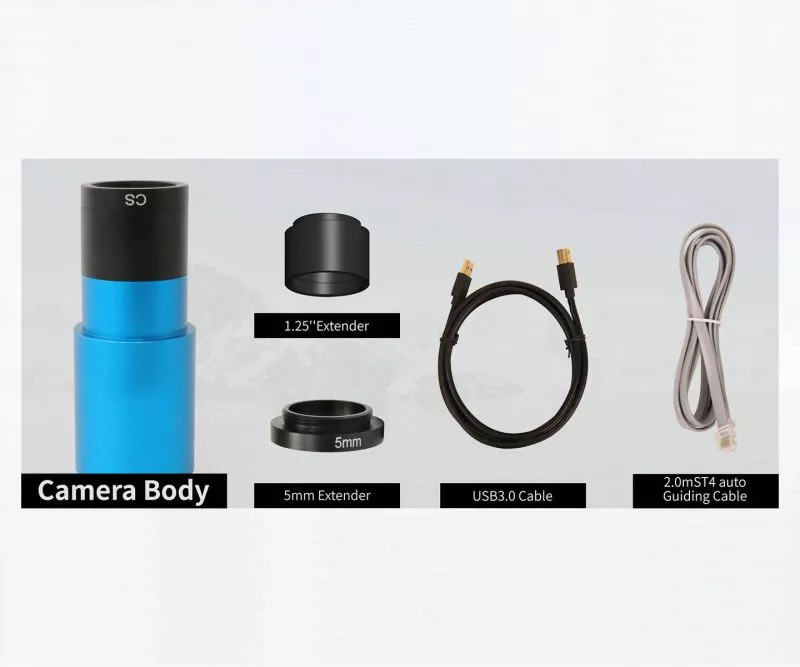

Camera

USB3.0 cable

ST4 cable

M28.5 - C adapter

1.25" extension

Dust cap

This Product was added to our catalogue on 18/11/2024.
