ZWO ASI585MM Monochrome Astro Camera with Guiding Sensor and ASIAir - Sensor D=12.84 mm
Cooled USB3.0 astro camera with Sony IMX585 monochrome sensor, guiding sensor and ASIAir in one housingZWO Wireless Smart Camera ASI585MM Air - 3 in 1 Solution: Guiding, Imaging and ASIAir Smart Control
Get rid of all these hassles:Enjoy the beauty of the night sky anywhere
Start your astrophotography journey with great convenience
The ASI585MM Air combines guiding, imaging, and smart control into one compact, lightweight device. Say goodbye to complex setups and enjoy a seamless, hassle-free astrophotography experience.

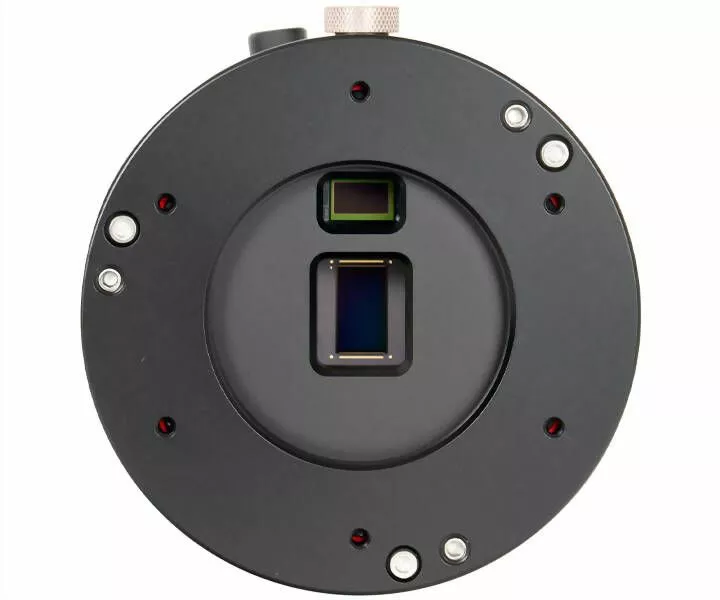

Imaging sensor
The main IMX585 sensor has a 1/1.2-inch format and 8.28 MP in total. The size is 11.2 mm in width x 6.3 mm in height and the diagonal is 13.2 mm. The small pixel size of 2.9 µm x 2.9 µm offers high resolution and a good full-well capacity of 38.7 ke.
Guiding sensor
The SC2210 sensor taken from the ASI220MM Mini camera features very high sensitivity. The QE peak value reaches 92% at 500 nm. The read noise is as low as 0.6 e. As the new generation of guide sensor, it has achieved great results in guiding, proved by hundreds of astrophotographers.
Effortlessly connect multiple devices: 4x USB2.0, 2 x DC 12 V 10 A, 1x USB Type-C
USB 2.0 ports for your focuser, filter wheel, and mount, DC 12 V 10 A input/output ports for reliable power, and USB Type-C port for fast file transfers to computer - you can focus on capturing stunning images without worrying about connectivity issues.
Shoot with confidence: ample storage and stability
With a massive 256 GB eMMC storage, the ASI585MM Air allows you to capture multiple targets with ease. Rigorously tested with over 300 benchmarks, it ensures system stability. Plus, the USB 2.0 ports support up to 1 TB external storage, giving you plenty of room for all your astrophotography needs.
Dive into the rich details of the celestial objects
The full-well capacity of this camera is 38.7 ke, making long exposure images less prone to overexposure. The good full-well capacity and high dynamic range make it possible to capture both bright and dark areas with amazing clarity and detail. Experience the wonderful details and colors (via RGB exposures) of objects like never before!
The HCG mode
The camera has a built-in HCG mode that can effectively reduce readout noise at high gain and maintain the same wide dynamic range that you would expect at low gain. When the gain is 200, the HCG mode will turn on automatically. This results in readout noise of just over 1 e-, while the dynamic range can still reach almost 12 f-stops.
Note: Previously, HCG mode switched on at a gain of 252. To switch on at a gain of 200, you must update ASIAIR or ASIStudio. After updating, you will need to re-shoot calibration frames to ensure proper stacking in post-processing.
Dual-band Wi-Fi for stable signal
Experience unparalleled connectivity with ZWO´s enhanced external dual-band antenna, supporting both 2.4G and 5G frequencies and offering stable and smooth usage within 20 meters.
Get full control of your entire rig at your fingertips
With the ASIAIR smart app, you can easily control guiding, imaging, your mount, and electronic focuser - all from your phone. It supports multiple imaging modes, making it easy for even beginners to quickly learn and capture professional-quality images.
Guiding
After connecting to the mount, guiding is realised via the built-in guiding sensor, the built-in ASIAir control and the imaging software, i.e. the ASIAIR app or ASIImg from the ASIStudio suite. An ST-4 autoguider cable to the mount is therefore just as unnecessary as a separate guiding camera.
Instant post-processing and sharing
Live stack is supported during your imaging session. You may also make adjustments to brightness, contrast and others on the final image. Instantly share your masterpieces on social media platforms and astronomy communities, making your work stand out.
Go further with ZWO´s self-developed system
Powered by ZWO´s patented technologies, the system ensures stable astrophotography performance. Continuous App OTA updates keep your device up-to-date with the latest features, enhancing your user experience and expanding your capabilities.

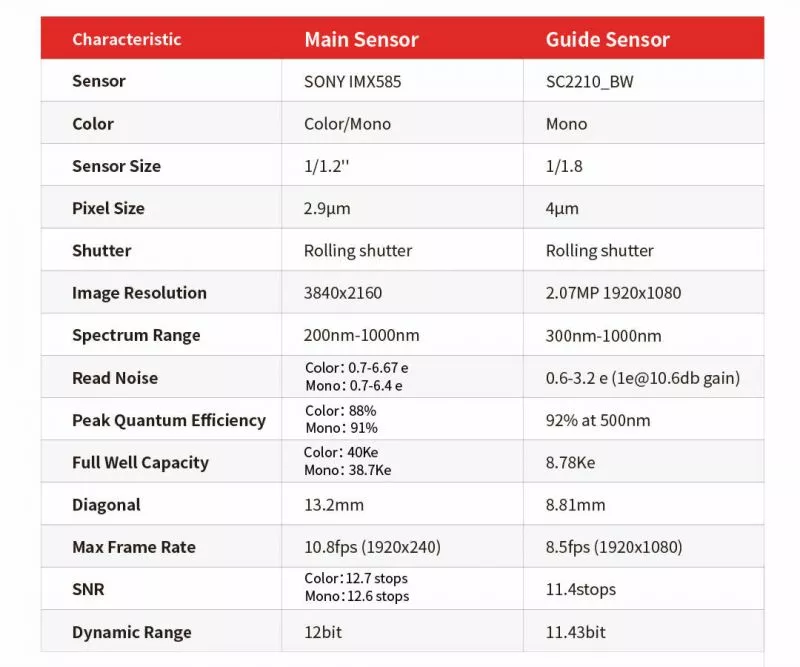

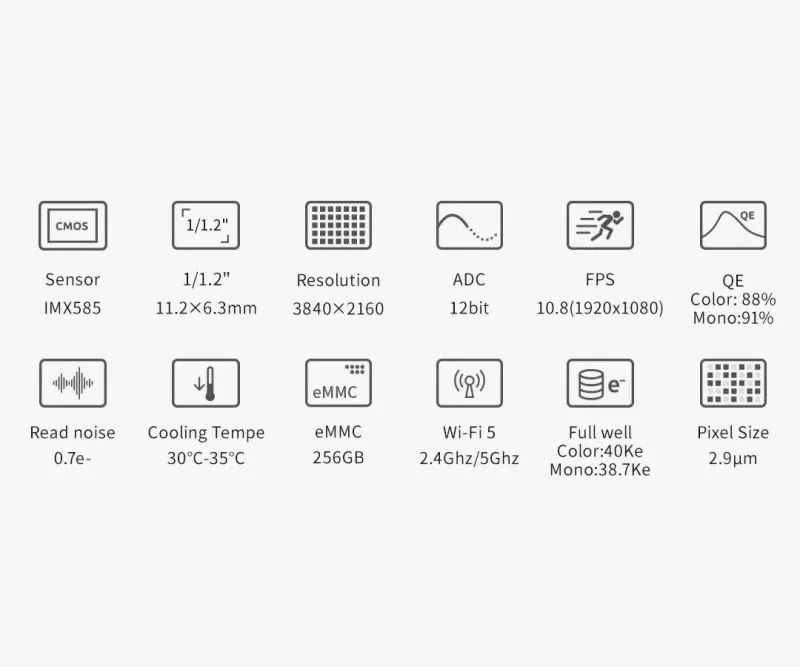

| Sensor: | Sony 1/1.2 inch CMOS IMX585AAMJ1 (monochrome) |
| Resolution: | 3840 x 2160 pixels, 8.28 megapixels |
| Pixel size: | 2.9 µm |
| Sensor size: | 11.2 mm x 6.3 mm |
| Sensor diagonal: | 13.2 mm |
| Exposure time: | from 32 µs - 2000 s |
| Recording speed: | 10.8 fps at 1920x1080 |
| ROI: | Supports |
| Quantum efficiency: | 91 % |
| ADC: | 12 bit |
| Full well: | 38.7 ke- |
| Antiampglow switching: | Yes |
| Readout noise: | 0.7-6.4 e- |
| Distance from female T2 thread to sensor: | 17.5 mm |
| Shutter type: | Rolling shutter |
| Protection window: | AR dust protection window (UV and IR light are transmitted) |
| Guiding sensor type: | SC2210 |
| Sensor size: | 7.68 mm x 4.32 mm, 8.81 mm diagonal (1/1.8") |
| Pixel size: | 4 µm x 4 µm |
| Resolution: | 2.07 megapixels |
| Pixel matrix: | 1920×1080 pixels |
| Exposure time range: | 32 µs to 10 s |
| ADC: | 12 bit |
| Readout noise: | 0.6 to 3.2 e- |
| QE: | 92 % at 500 nm |
| FWC: | 8780 e- |
| Frame rate: | 8.5 fps |
| Bit resolution: | 12 bit output (12 bit ADC) |
| ST-4 interface: | no, unnecessary |
| Built-in controller: | ASIAir (mini) computer |
| Memory: | 2 GB DDR4 |
| Storage space: | 256 GB eMMC |
| Wired data interface: | Version Type-C (USB-2.0) |
| Wireless network: | IEEE 802.11a/b/g/n/ac, 2.4 GHz / 5 GHz, effective transmission range 20 m |
| Power connections: | 2x 5.5/2.1 mm coaxoal power connectors, any one as power input |
| Power supply: | 12 V, 3 to 10 A, (power supply unit not included) |
| Current requirement: | 12 V, 3 A |
| Maximum power dissipation: | 24.6 W |
| Including heating power: | 2.4 W |
| USB hub: | 4x USB 2. 0 |
| Telescope connection: | M42x0.75 female thread |
| Size: | 78 mm diameter and 97.9 mm length (without antenna connection), antenna 94 mm length |
| Weight: | 635 grams |
