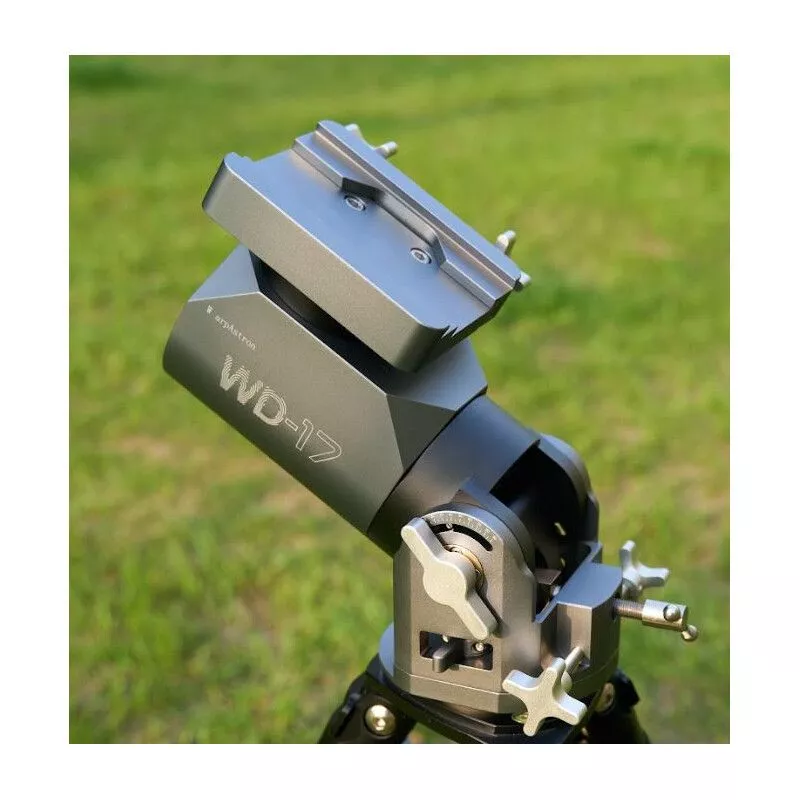

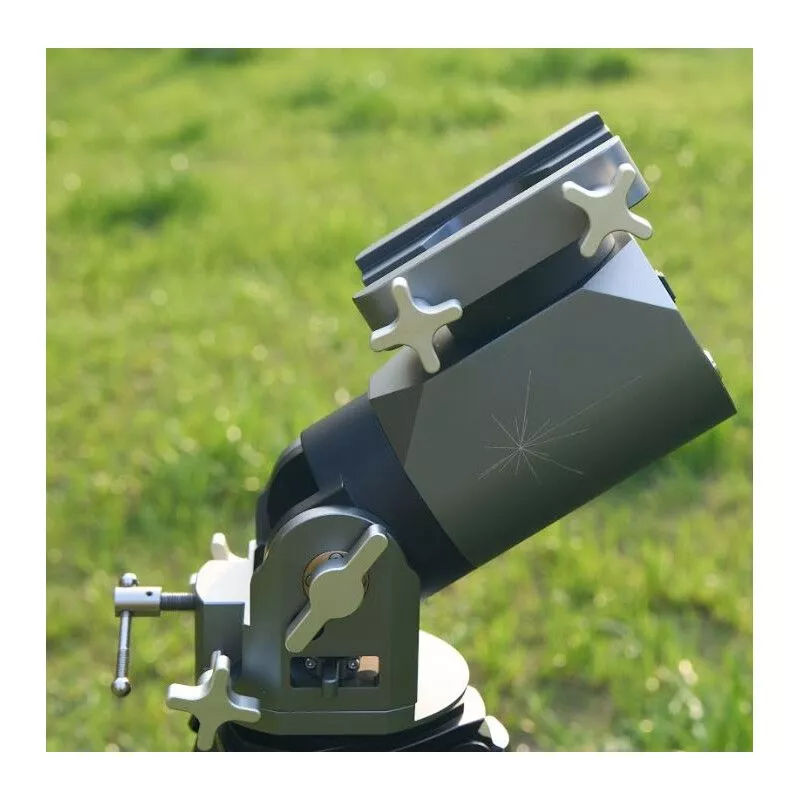

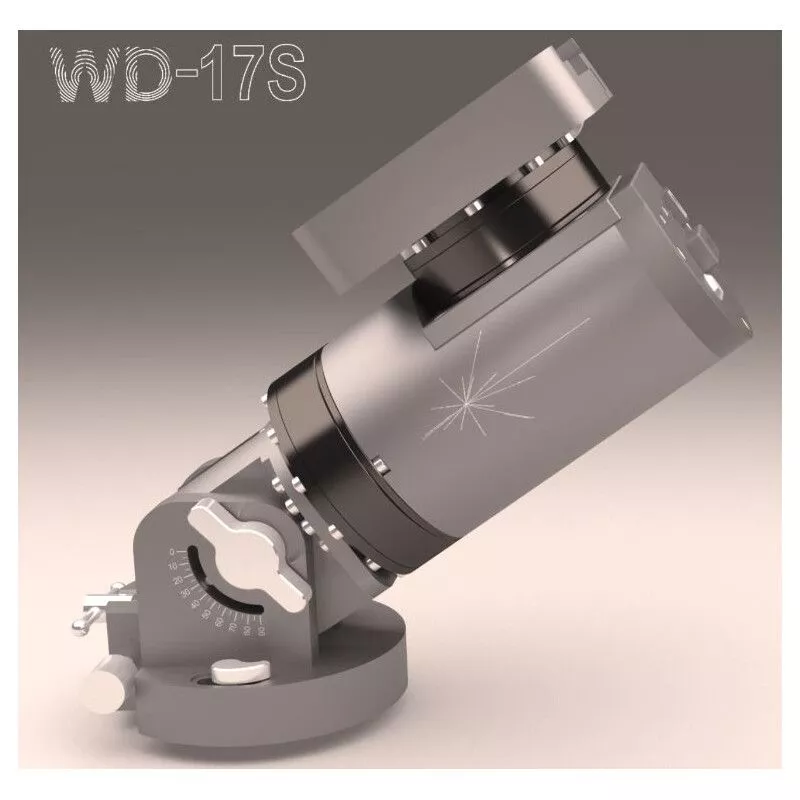

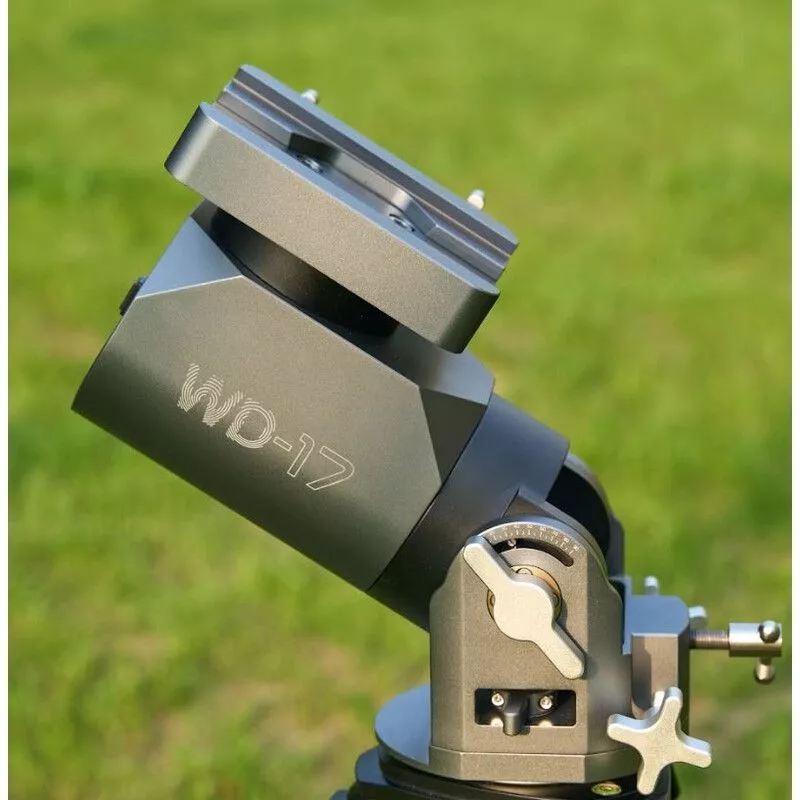

WarpAstron mount WD-17 Harmonic Mount

The WD-17 is a harmonic mount based on servo direct drive. It offers a standard payload of up to 15kg without counterweight. With an optional counterweight, the load capacity can be increased to up to 20kg! Most telescopes, such as a 100 APO or a C8, can be handled without any problems. The newly designed mount head with a high power density servo motor significantly increases the load capacity, while the actual mount weight remains at only 3.8kg. Both axes are equipped with a home sensor, making remote control/observatory astrophotography even more convenient.

TECHNICAL DATA
Performance
Max. payload (kg)
15 (without counterweight)
Input voltage (volts)
12
Mount saddle
Losmandy & Vixen
Pole height adjustment (°)
0-90
Cable routing
internal
Drive type
Harmonic/Strainwave
Pre-gear
Direct drive
Counterweight(s) (piece)
0 (optionally available)
Encoder
Yes
Special features
Hand controller
Yes
Pole height scale
Yes
Autoguider interface
Yes
Goto system
Yes
GPS
Yes
equipment
Polar finder
no
tripod
without tripod
Other content
Column extension
Transport case
Yes
Cable
USB
Generally
Total weight (kg)
3.8
type
Mount
Construction type
parallactic

This Product was added to our catalogue on 18/07/2024.
