Baader Protective Canon EOS DSLR ring for 2" and 50.4mm filter T2 / M48

Baader Protective Canon EOS DSLR ring for 2" and 50.4mm filter T2 / M48


Baader Proctective Canon EOS DSLR Ring - takes 2" & 50.4mm filters

Use 2" filters with EOS lenses or telescopes without space problems

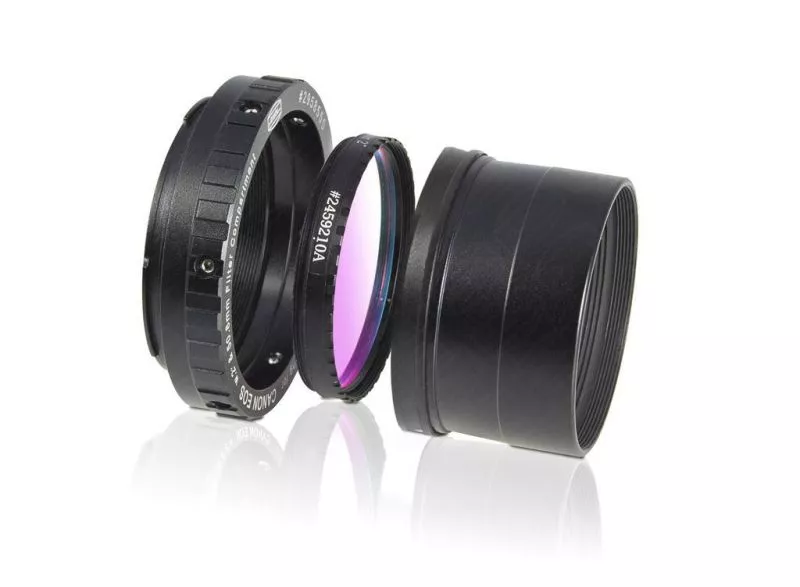

Baader Protective CANON EOS DSLR T-Ring - complete set - can also be used on lenses

♦ Accepts 2" filters and 50.4mm unmounted filters

♦ Maximum passage - also suitable for full-frame sensors

♦ Connections - T2, M48x0.75 and 2"

♦ Height 11.5mm - optically effective height with filter - 10.5mm


In addition to many mechanical advantages, the Protective T-Ring for Canon EOS DSLR cameras offers a real solution to the problem. It can accommodate mounted 2" filters and unmounted 50.4mm filters, making it possible to place a filter in front of the camera without losing the optical path.

The advantages and areas of application of the Baader Protective T-Ring:
♦ Flexible adaptation to telescopes and telephoto lenses with the best possible mechanical quality
♦ Use of filters directly in front of the camera without loss of path, e.g. with Newton coma correctors or with lenses
♦ Protection of the camera sensor, the T-ring can always remain on the camera, no dust can penetrate
♦ Vignetting-free recordings even with extremely bright telescopes

Alternative to clip filters in the camera body and camera conversion with replacement IR blocking filter:
The Baader Protective T-Ring is a real alternative to the normal camera conversion with a replacement filter. Just have the original Canon EOS IR cut filter removed. We offer this service: Art.Nr. DSLR conversionOF.

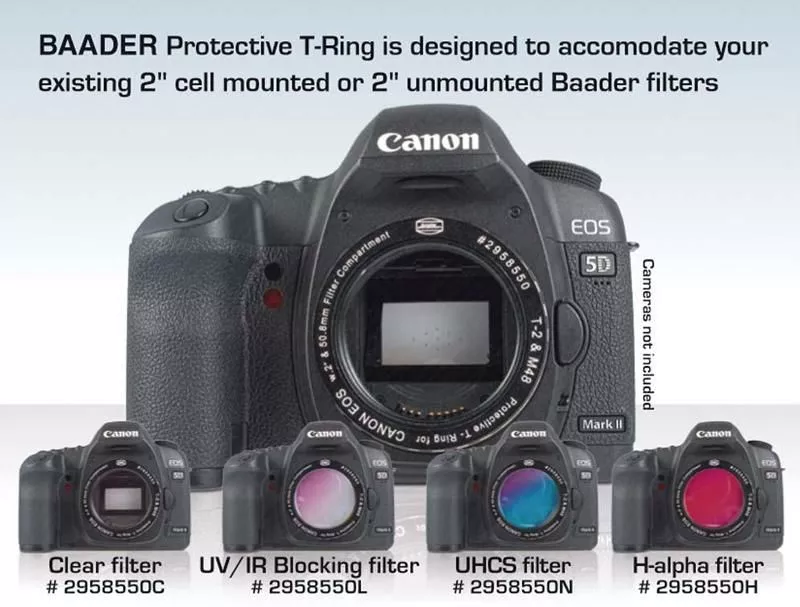

Instead of the filter position directly in front of the chip, the IR blocking filter is integrated into the protective T-ring. You can also use the effective Baader UHC nebula filter instead of the IR blocking filter.

Another advantage compared to clip filters is the simpler integration into the system. You can also work with full-frame cameras from the EOS series, for example, without changing the filter - with full illumination.



Suitable filters: 2" mounted and 50.4 mm unmounted
Connections: T2, M48x0.75 and 2"
Mechanical height: 11.5 mm
Optical height: 10.5 mm (with filter)

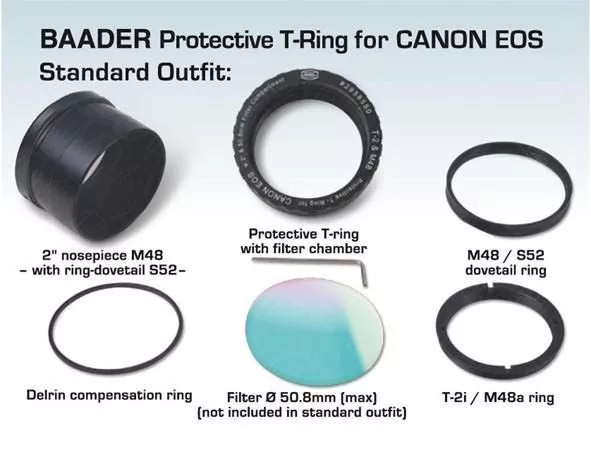

1. T-ring for Canon EOS cameras - main body
2. OPTIONAL (not included) 50.4mm Baader filter
3. Temperature Compensation Ring - to protect the filters during sharp temperature changes
4. Adapter S52/M48 - allows connection to M48 thread adapters and correctors
5. Insertion ring M48/T2 - reduces the connection thread on the telescope side from M48 to T2
6. Receptacle S52/2" - enables direct connection to 2" receptacles
