ZWO T2 tilter for all ASI cameras with new connection options

ZWO tilting mechanism with T2 connection - for individual correction of the image field by tilting - directly compatible with EFW filter wheels

 Camera connection via T2, but also via individual holes
 Short design of only 11 mm from T2 female thread to T2 female thread
 T2 reversal adapter (length 2 mm) is included in the scope of delivery
 Large diameter of 78 mm for convenient adjustment when the camera is mounted
 Suitable for all ZWO cameras via the T2 thread
 Adjustment using an Allen key (included in delivery)

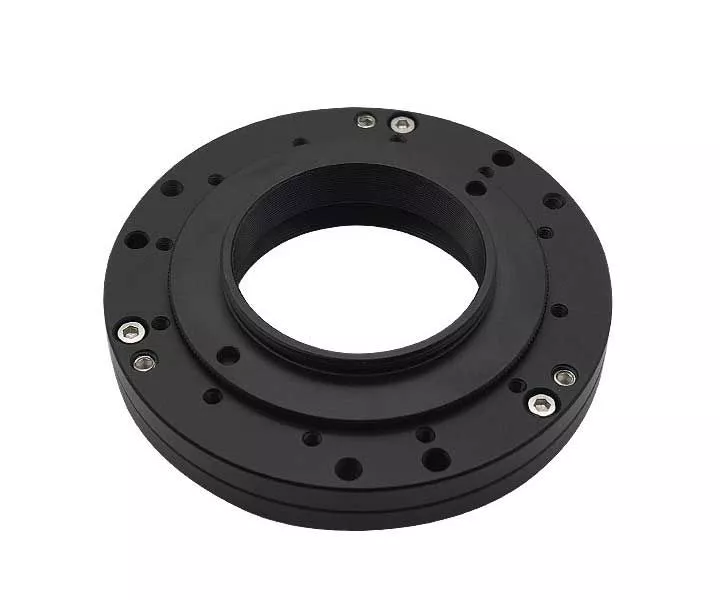

ASI T2 tilter - tilt flange
Adjustment of image plane and sensor position
Many astrophotographers know the problem: You focus as well as possible and the sharpness is still not satisfactory in 1-2 corners. The result is a lazy compromise by changing the sharpness setting until the stars appear relatively evenly "sharp" or by simply cutting away the corner.

Some possible causes of this problem:
 a slight tilt of the camera sensor (only a few fractions of a millimeter are enough)
 a tilting of the focuser
 a slight tilt of the field plane of the telescope (very common with Newtonian telescopes)
 a tilting of the eyepiece-side accessories when clamping

This is the solution:
With the ASI T2 tilter you can simply adapt the camera chip to the field of the telescope, regardless of where the cause of the tilt comes from. You then only have to always maintain the orientation of the entire adapter, correctors and camera.

Connecting the camera to the tilter:
In principle, any suitable camera can be connected to the tilter via the T2 thread. Additional holes also allow connection directly to the camera housing for the following ZWO cameras:

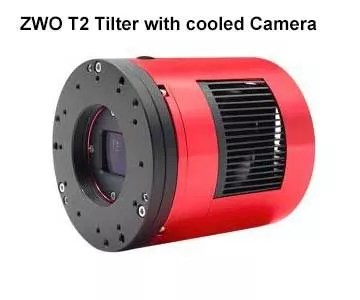

 ASI294/ASI1600/ASI183/ASI533 Pro cooled

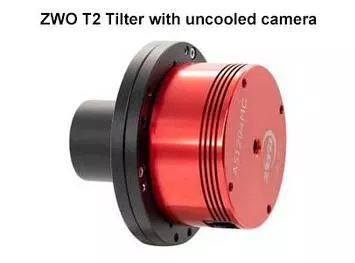

 ASI294/ASI1600/ASI183/ASI174 uncooled


The housing of the ASI071 and ASI 2600 Pro is dimensioned differently, so the direct connection does not work. The only way to do this is via the T2 thread.


Diameter: 78mm
Connection: T2 on both sides
Height: 11mm without the T2-T2 adapter
Height of T2-T2 adapter: 2 mm
Adjustment: Allen screws

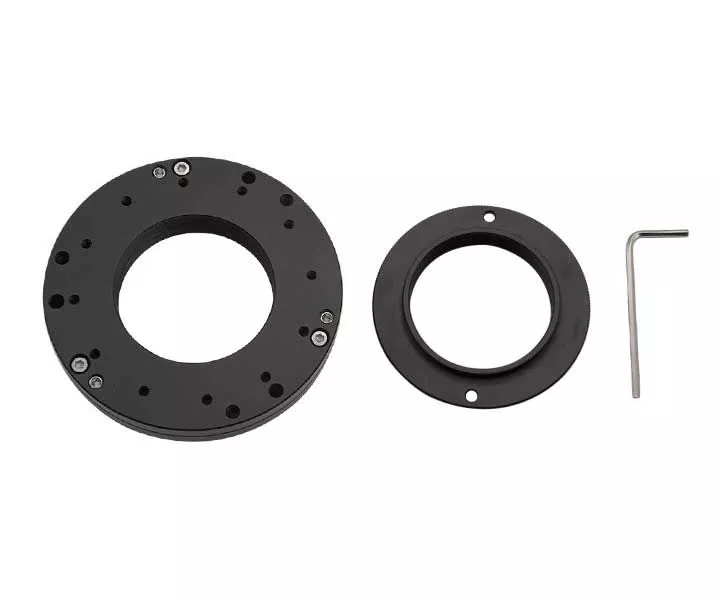

 Tilting flange
 T2-T2 adapter with external thread on both sides
 Allen key
