TS-Optics adapter for 2" filters (M48 thread) on camera lenses

Adapt 2" nebula or color filters to the M58 filter thread of your camera lens or to a suitable extension tube.

Lens-side connection thread: M58x0.75 filter thread - male thread

Filter connection thread: M48x0.75 filter thread - female thread

With the optional B.I.G. Filter Adapter Set 413782, you can adapt 2" filters to all common filter threads.

Optical path: 5 mm

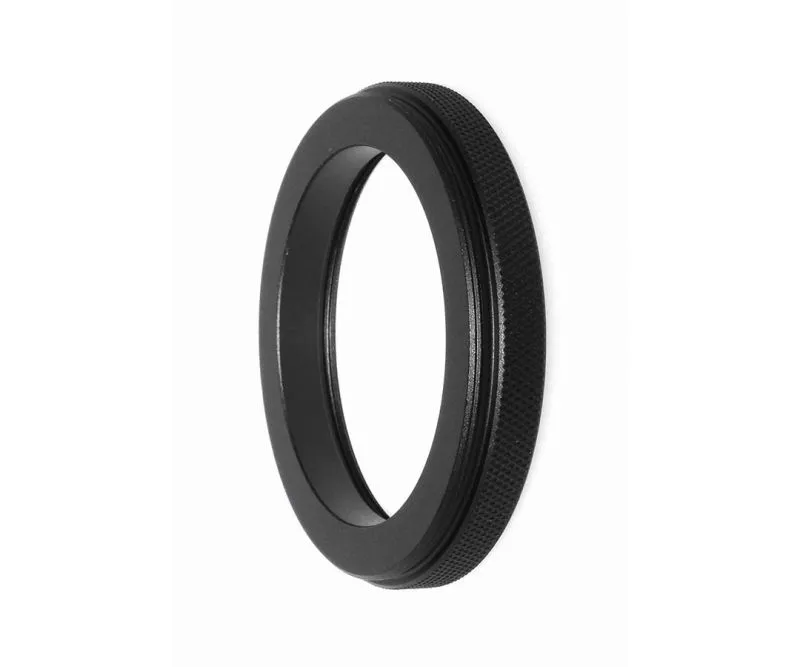

Connection adapter for 2" filters to the M58 filter thread of camera lenses

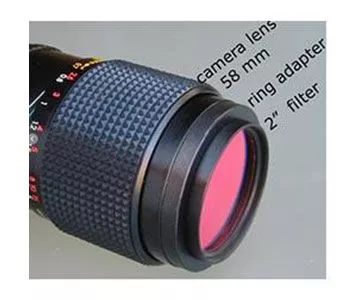

This ring allows you to mount 2" astronomical filters (50.8 mm - 2") (connection thread M48x0.75) to lenses with an M58 filter thread. Extension tubes to M58 (#413782) are also available, allowing adaptation to other filter threads.

Please note that the smaller thread of an adapter ring is always an external thread. Therefore, the M58-M62 ring cannot be connected to the M58 external thread of the TS2-M58 to attach it to lenses with a larger filter thread.

Applications:

Adapt astronomical nebula or color filters to your camera lens and utilize the filter effect for daytime or nighttime photography.

Lens-side connection thread: M58x0.75 filter thread - external thread (2 mm long)
Filter connection thread: M48x0.75 filter thread - internal thread (2 mm long)
Optical path length: 5 mm

TS Filter Adapter to M48 (2") Filter Thread
