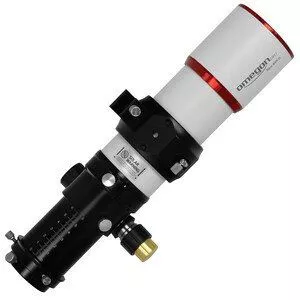

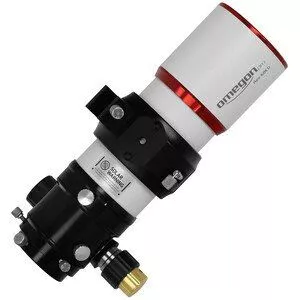

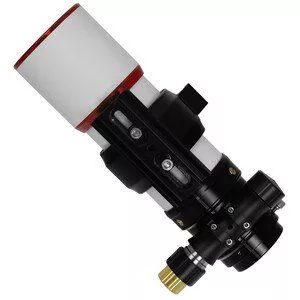

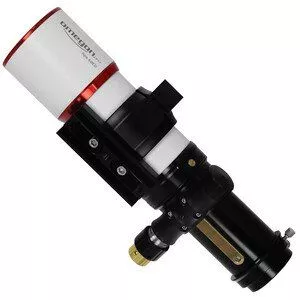

Omegon Apochromatic Refractor Pro APO AP 60/330 Doublet OTA

Omegon Apochromatic Refractor Pro APO AP 60/330 Doublet OTA

More beautiful astrophotos that help you rediscover the sky
What is it that drives astrophotographers time and time again? It's the fascination of imaging the sky in its most beautiful colors and shapes. This is achieved with this doublet apochromat. The high-quality ED glass and a color-pure image lead to enjoyable observations with fine details that would not be possible with a simple optic. Discover the sky in a new way.

The advantages at a glance:

60mm Doublet ED Apochromat: for fantastically clear and color-pure observations and astrophotos.
2" gear eyepiece focuser with 1:10 reduction, 360° rotatable: This focuser supports accessories up to 3kg and still offers precise and feather-light focusing
Huge field of view for stunning wide-angle images
Includes CNC tube clamp, prism rail and finder shoe
Why this doublet optic shows more detail
Put an end to images without contrast. The Doublet Apochromat shows what is really possible: pure color and high contrast observations and astrophotos. The reason is a sophisticated double-lens design with the premium OHARA FPL-53 glass for a crystal clear image. Compared to most mirror systems, you will see more and finer details in planetary observations, for example, due to the better defined optics. The lens elements have been provided with an effective muli-coating against reflections on all surfaces. Look forward to observations and images that will be remembered.

2" gear eyepiece focuser with ball bearings
Almost a true space miracle, the 2" gear focuser is large enough, no shadowing occurs. An ingenious hybrid technique of Crayford and gear makes it especially powerful and suitable for accessories up to 3kg. In addition, it can be focused silky smooth via the ball bearings, so you can easily find the perfect focus. A 1:10 reduction for finest corrections completes this focuser. These are exactly the features that astrophotographers around the world appreciate.

360° rotation for the perfect image focus
Object found and focused, but misaligned? At night, you should save yourself the trouble of starting all over again and aligning an elongated object to fit the sensor. The 360° rotatable focuser makes this task easy, as it is done in seconds.

CNC tube for one of the best optics
The tube of the Omegon Apo consists of a CNC machined metal construction with a sophisticated aperture system against reflections. The entire tube has been lined with a velvet-like black fabric.

Technical data:
Optics
Type Refractor
Aperture (mm) 60
Focal length (mm) 330
Focal ratio (f/) 5.5
resolving power (arcseconds) 1.9
Limiting magnitude (mag) 10.7
Max. useful magnification (-x) 120
Tube diameter (mm) 70
Tube construction Full tube
Light gathering power (-fold of a 7mm pupil) 70
Multiple coating
Eyepiece focuser
Rack and pinion design
Connection (eyepiece side) (inch) 2
Rotatable Yes
Reduction ratio 1:10 Fine drive
Adjustment range (mm) 61
Ring clamp yes
Mount
Type OTA
GoTo control no
Mount type without mount
Included accessories
Eyepiece adapter 1.25" - 2
Tube clamps yes
Viewfinder shoe Vixen/Skywatcher Level
Prism rail Vixen style
Corrector without
Carrying case no
General
Series Pro APO
Length (mm) 265
Total weight (kg) 1,7
Fields of application
Nature observation not recommended
Moon & Planets yes
Nebulae & Galaxies yes
Astrophotography yes
Sun not recommended (only with suitable solar filter)
Recommended for ...
Beginners no
Advanced yes
Observatories no
