TS-Optics ToupTek GPCMOS02000KMA Mono Camera and Autoguider - Chip D=6.46 mm

For a larger view click on the thumbnail

Our previous price 219,00 EUR Now only 189,00 EURyou save 14% / 30,00 EUR

19 % VAT incl. excl. Shipping costs

Add to cartAdd to cart

Shipping time: In stock + testing

Product no.: TS290USB2M

Reviews: (0)

MPN: TS290USB2M

• Print datasheet

• Details
• More images
• Customer-tip

Products description

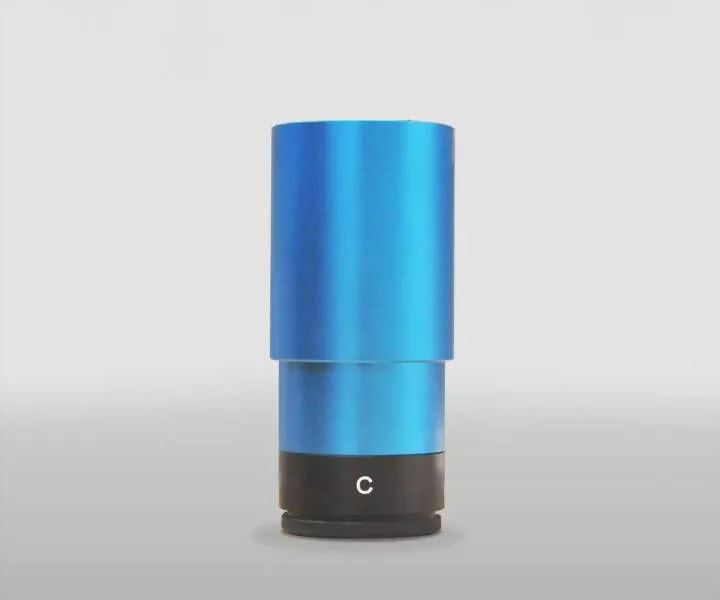

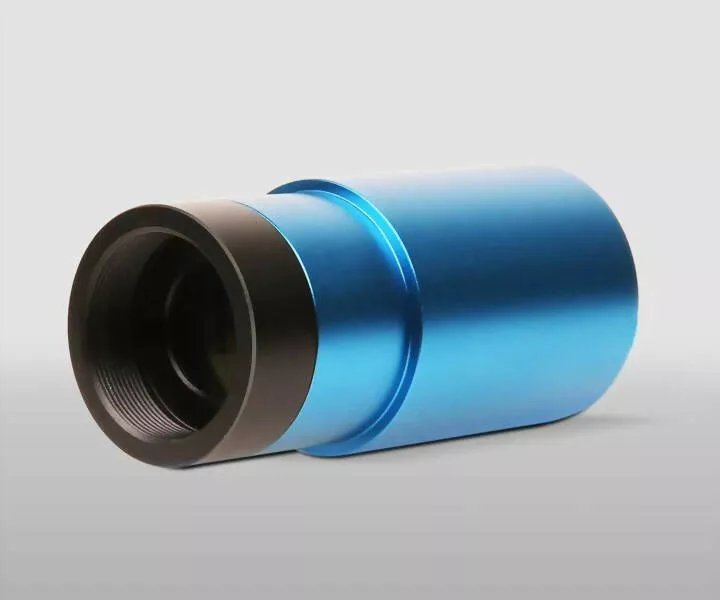

TS-Optics ToupTek GPCMOS02000KMA Mono Camera and Autoguider - Chip D=6.46 mm

A very sensitive autoguider for astrophotography from ToupTek, with high resolution IMX290 sensor and 1.25" body

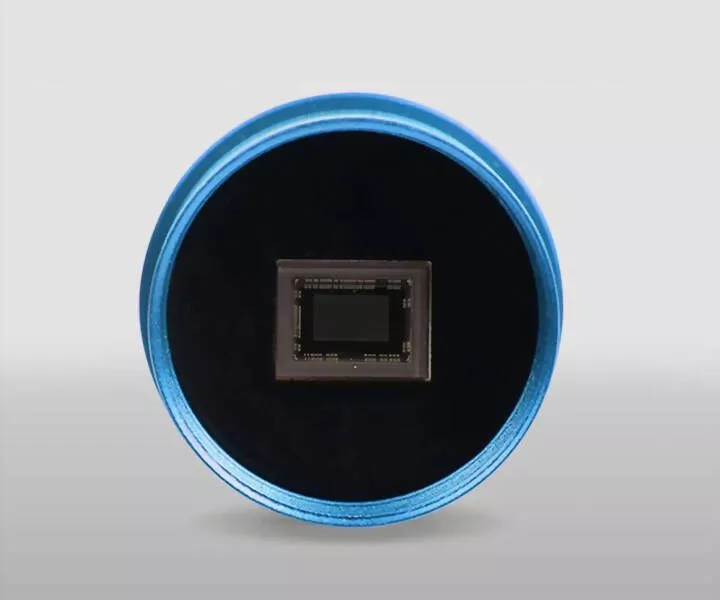

Monochrome CMOS sensor IMX290 from Sony with a QE of over 81% for very high sensitivity - always find a guide star

Pixel size 2.9 µm - allowing you to guide large telescopes with small guiding scopes and to use finder guiding

Sensor size 5.6 x 3.1 mm

Practical 1.25" body - you can insert the autoguider / camera like an eyepiece into the guiding scope, finder or off axis guider.

A true lightweight with only 70 grams and not larger than a 1.25" eyepiece

Practical scope of delivery: USB cable, ST4 autoguiding cable and 1.25" barrel extension

The camera can also be used as a high-grade lunar and planetary camera. Due to the high sensitive sensor even images of deep sky objects are possible.

C thread for the connection of lenses for industrial cameras, extension for CS lenses

The GPCMOS02000KMA is the ultimate autoguider and much more. The modern Sony IMX462 monochrome sensor convinces with an outstanding QE of over 80%. Only a few sensors achieve this sensitivity. Another special feature is the extremely high resolution due to 2.9 µm pixels. This makes this camera very interesting for astrophotography.

The advantages of the GPCMOS02000KMA as an autoguider

You always find a guide star, even with an off-axis guider - guaranteed!

With the high resolution, you can easily guide telescopes of up to 11" aperture with a 50 mm finder - guiding with the finder becomes possible.

The practical 1.25" housing makes adaption easy. Push the camera into the 1.25" receptacle, focus and get started with guiding.

Short working distance from the front surface to the sensor - you can reach focus even with short maximum distances.

With only 70 grams weight, the focuser is almost not loaded.

Of course, ST4 cable and ST4 port are supplied. Connect the camera directly to the autoguiding port of the mount.

The advantages of the GPCMOS02000KMA as an astro camera

Highly sensitive sensor combined with high resolution for ultimate lunar and planetary photographs.

Camera fits any 1.25" focuser. Clamp the camera like an eyepiece, focus and start astrophotography.

The high sensitivity makes the GPM462M suitable for photographing nebulae and galaxies.

The camera is equipped with a clear glass window filter that is also transparent in the infrared. This makes exciting infrared photography possible.

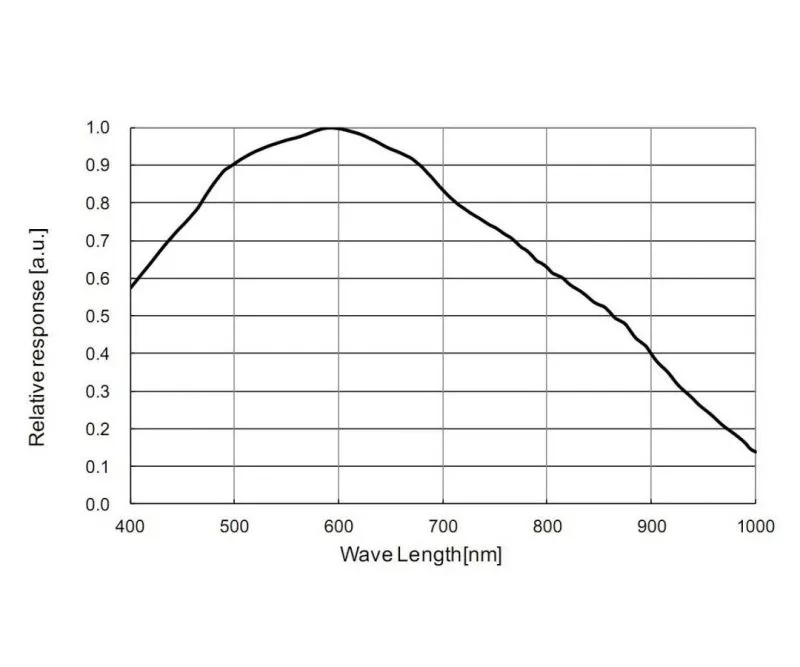

Spectral sensitivity
The sensor convinces not only with high sensitivity, but also with a broad spectral range. The sensitivity stays high even deep in the infrared. This means more stars for guiding, but also the exciting field of infrared photography (Venus, Mars ...) is accessible - less influence of seeing, so sharper images!


Sensor:	1/2.8" CMOS IMX290
Resolution:	2.1 megapixels, 1920x1080
Pixel size:	2.9 µm
Sensor size:	5.57 mm x 3.13 mm (diagonal 6.39 mm)
QE (Maximum):	81%
Readout noise:	0.53 e- to 0.84 e-
Exposure time:	0.105 ms - 1000 s
Frame rate at full resolution:	18 fps
ROI:	Supported
ST4 autoguider port:	Yes
Back focus distance:	8.5 mm only body, 17.5 mm with C mount adapter, 12.5 mm with CS mount adapter
Shutter type:	Rolling shutter
Entry window:	Anti-reflective coated window
Operating system compatibility:	Mac, Windows, Linux
Interface:	USB 2.0
Bit rate:	12 bit output (12 bit ADC)
Telescope connection:	1.25", M28.5x0.6 and C-mount

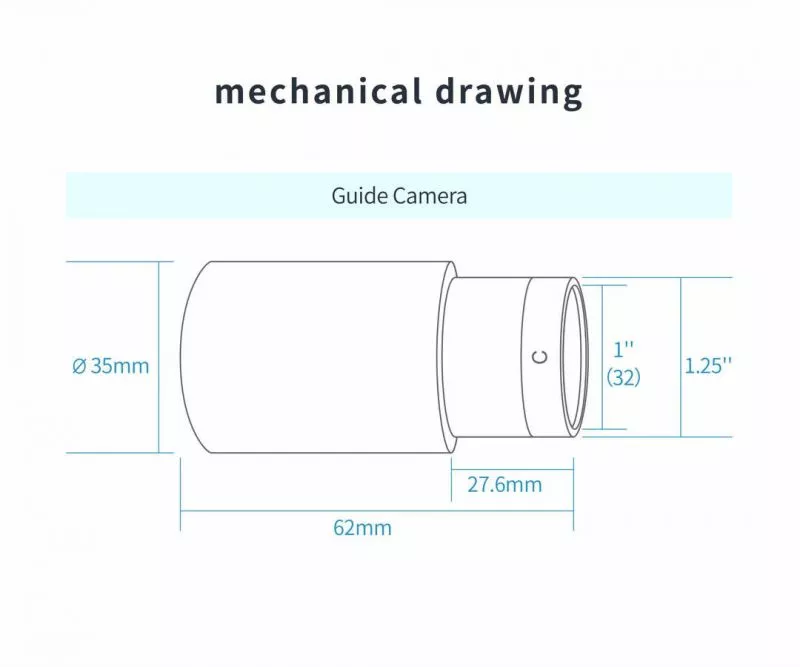

Size:	D=35 mm x 62 mm (D=35 mm x 82 mm with 1.25" barrel extender)
Weight:	70 g

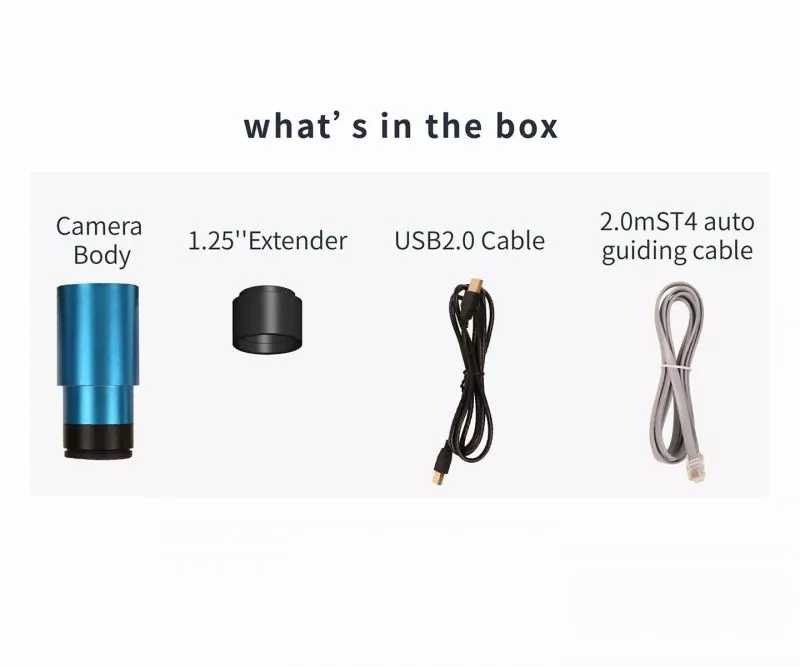

Camera body

Dust cap

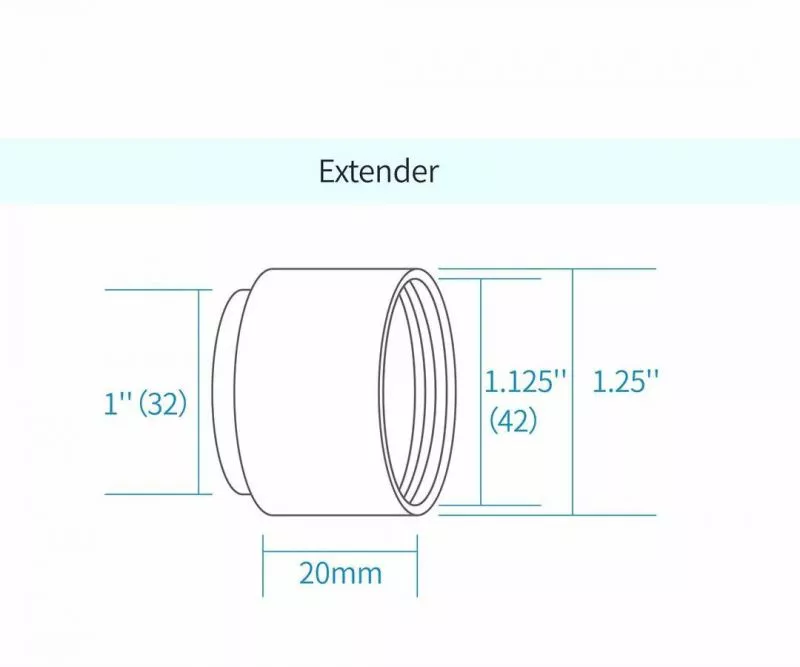

C-mount - M28.5x0.6 thread adapter, length 20 mm (1.25" barrel extension)

USB2.0 cable Type B

ST4 cable (2.0 m)
