The Askar 185APO is checked, measured and, if necessary, adjusted by us before delivery. The focuser is adjusted.

Examples of our test protocols: Test recordings
How we justify: About us

Please contact for advice on this telescope. This way you can benefit from our experience before you buy.

We ship this telescope free of charge in Germany.


Askar 185APO 140mm 1295mm f/7 apochromatic refractor ED-APO




The Askar 185APO is an apo refractor with 185 mm aperture, 1295 mm focal length and a native focal ratio of 1:7 with many useful functions and a corrector or reducer as an option.

♦ Aperture 185 mm - focal length 1295 mm - focal ratio f/7

♦ Triplet lens with an ED element

♦ Stable 3.3" RAP focuser with 1:10 micro reduction, 360° rotation connection and 100 mm adjustment range

♦ Sufficient working distance for observation with 2" accessories and for photography

♦ Flattener and 0.8x reducer available

♦ CNC clamps with prism rail (Vixen/EQ5) and carrying handle

♦ Two viewfinder shoes

Askar 185APO - apochromatic refractor - 185 mm, f/7
The 185mm aperture provides an inherent advantage in light gathering performance, resolution, brightness and contrast, allowing the photographer to collect more light and image more detail and brighter objects.

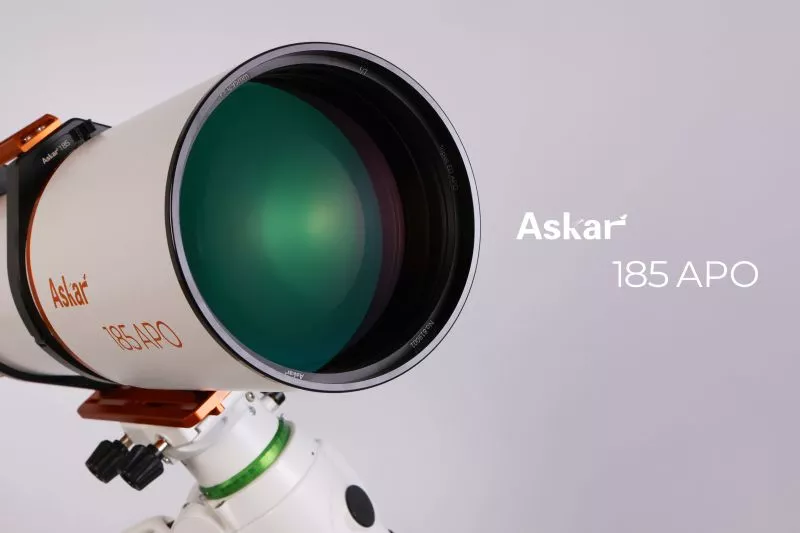

The Askar 185APO features an air-gapped triplet APO lens that incorporates ED glass.

When designing a refractor, the correction of chromatic aberration can be effectively improved by increasing the number of lens elements and developing lens combinations. However, this also means higher production costs and a more complex design. The Askar APO series uses special optical designs and multiple lens elements to correct chromatic aberration, which naturally results in higher quality object details and color accuracy. ED glass, also known as low dispersion glass, is a type of optical glass specifically designed to reduce chromatic aberration.

Mechanical design
The Askar 185APO is light and compact with a total weight of 17.2 kg (including the pipe clamps). This makes it suitable for outdoor use.

Each Askar 185APO is equipped with a unique name ring for identification.

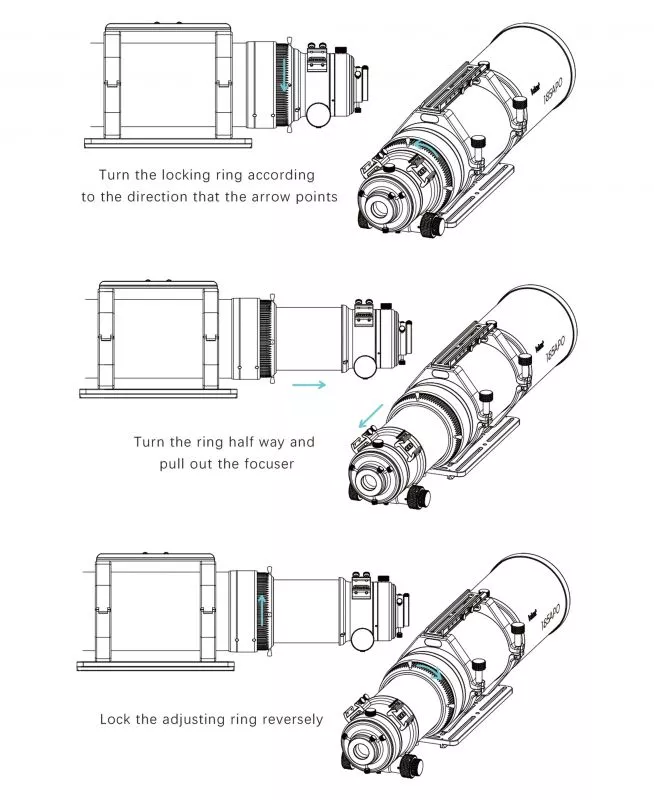

The retractable design of the dew cap and the enlarged locking screws allow for convenient use. The dew cap serves to protect the lens from external and internal light influences as well as to protect the lens itself.

The Askar 185APO has two viewfinder shoes, one on each side. Many users are concerned about the limited space for installing additional astronomy accessories. For this reason, Askar has installed special finder shoes on both sides of the focuser. This not only eliminates the need to disassemble the finder scope when changing the position of the finder, but also provides additional mounting positions for additional astronomical accessories.

The handle of the Askar 185APO has a special slot so that it can also serve as a base for mounting a finder scope.

The total weight of the pipe clamps is only 2.3 kg including the rail. The knurled screws make it easy to open and close the pipe clamps. At the same time, the bottom of the pipe clamps is raised and offers more space.

The Losmandy standard dovetail bar is compatible with most equatorial mounts and bases on the market. It has been lengthened and provided with screw holes so that the plate is now 400 mm long, making it easier to balance on the mounts. With the slot on the handle, the distance between the pipe clamps can be adjusted as desired.

Useful optical options

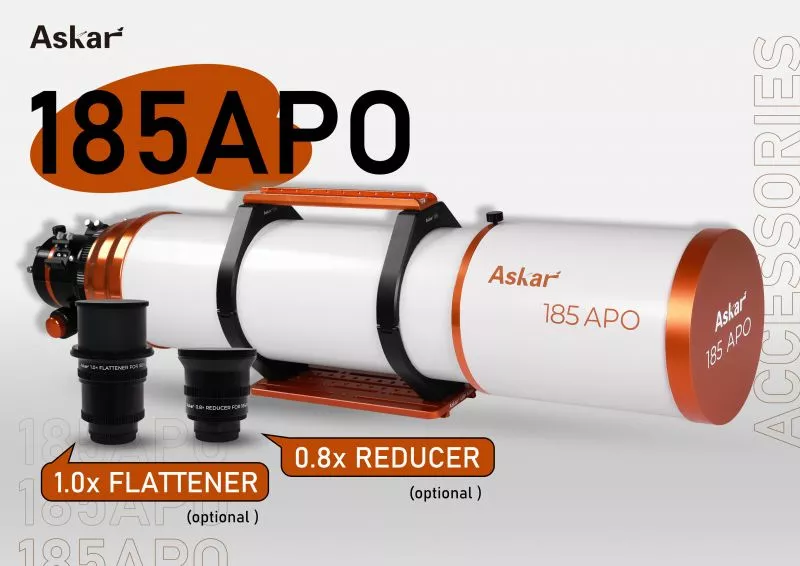

There are (currently) two optional accessories for the Askar 185APO: a 1x flattener and a 0.8x reducer. Both have built-in filter threads that allow filters to be mounted directly. They are also equipped with M54/M48 adapters that are suitable for holding accessories.

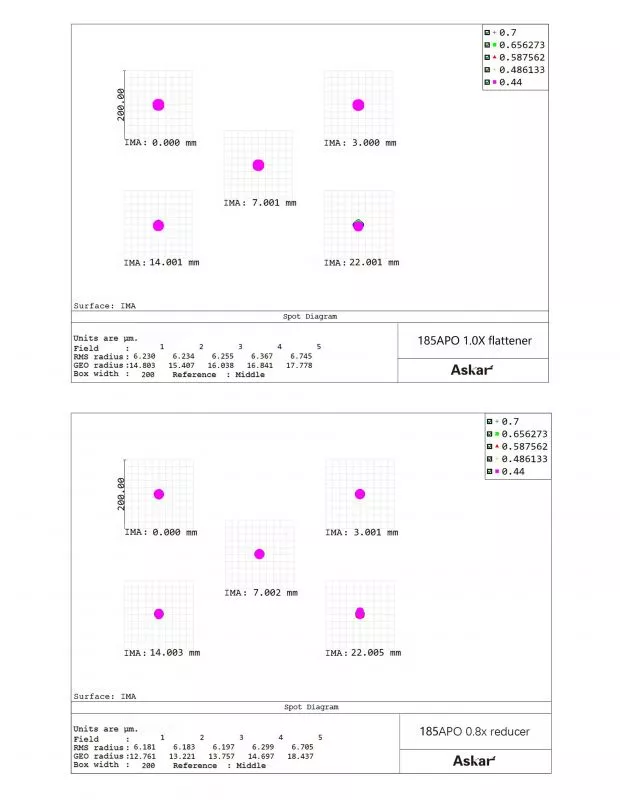

The 1x flattener does not change the focal ratio of the telescope itself. When mounted on the Askar 185APO, it maintains an aperture ratio of f/7. The flattener corrects field curvature and coma, resulting in flatter field edges and finer star points.

With the 0.8x reducer, the aperture ratio of the Askar 185APO can be brought to f/5.6. It is a standard reducer that also offers the option of flattening the field of view. A shorter aperture ratio allows the OTA to have a wider field of view and shorter exposure times, making it suitable for capturing large areas of nebulae, star clusters and faint, fast-moving celestial objects.

When it comes to visual observation, the Askar 185APO attaches great importance to the quality of observation. It can be easily focused when 1.25" or 2" star diagonals or various eyepieces are attached. Due to the segmented lens barrel, binocular lenses can also be connected for visual observation.

High-quality focuser



The Askar 185APO is equipped with a rigid 3.3" rack and pinion focuser with reduction that is compatible with most motor focusers on the market. There is a high-precision scale on the 10 cm long focusing path. The entire focuser is CNC machined and has an internal anti-reflective coating that provides additional measures to eliminate stray light.

On the back of the focuser there is a large 360° precision rotator with accurate scales for convenient adjustment and storage of rotation angles, enabling precise rotation. It is also equipped with an enlarged locking screw for the rotator, which can be easily locked even under high loads.

The connection at the back of the telescope comes with a 1.25"/2" adapter.

The entire tube of Askar 185APO is manufactured by high quality CNC machining and treated with anodizing and spray painting. The orange accents on the ivory white tube create a bright and eye-catching look that creates a stylish and elegant overall look.

Let the Askar 185APO accompany you as you explore the magnificent landscapes of the universe and create unforgettable memories. Act now and start your astronomical adventure with the Askar 185APO!

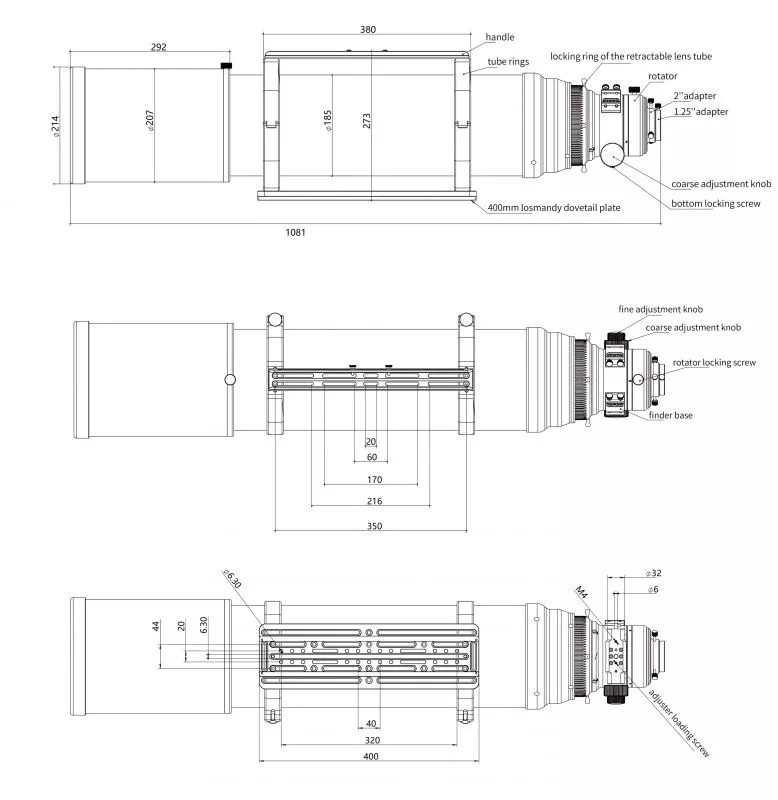

Opening: 185mm
Focal length: 1295mm
Aperture ratio: f/7
Lens: Triplet Apo with air gap (including an ED lens)
Eyepiece focuser: 3.3" rack and pinion focuser with reduction and 360° rotation
Adjustment range: 10 cm
Adapter: 2", 1.25"
Dew cap: Retractable
Prism rail: Losmandy standard, 300 mm long
Total length: 1081 mm (with dew cap retracted)
1222 mm (with dew cap extended)
Tube weight: 14.9 kg
Tube with tube rings and prism rail: 17.2 kg


♦ 185APO OTA
♦ CNC clamps with carrying handle and prism rail
♦ Two finder shoes mounted on the focuser
♦ Carry bag
